Power Steering Oil Pump: Components

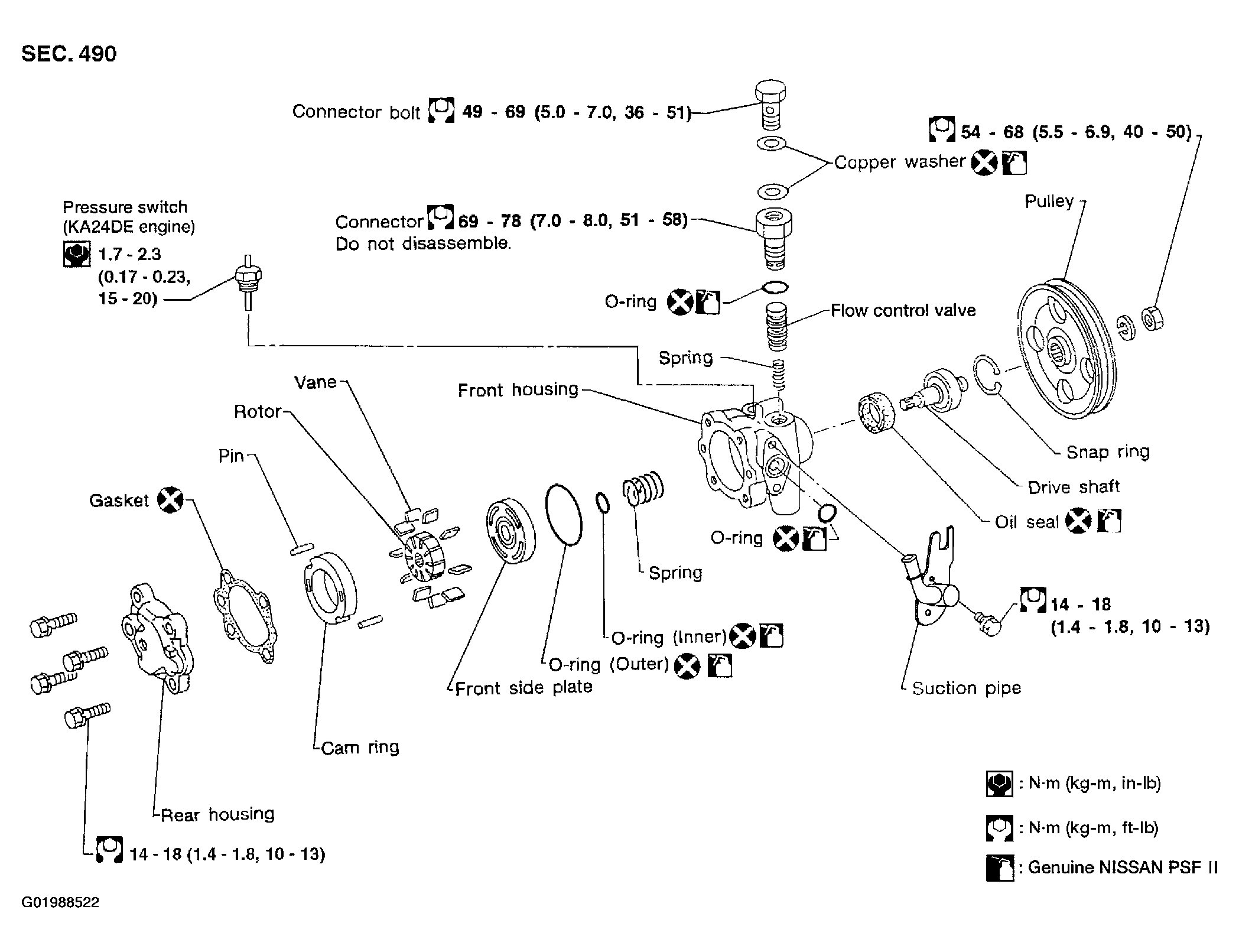

Fig 1: Power Steering Oil Pump Replacement Components And Fastener Torque Specification

G01988522

Courtesy of NISSAN MOTOR CO., U.S.A.
