Main Gear Bearing

WARNING: This page is about a different variant/trim than selected.
  1. Remove snap ring.

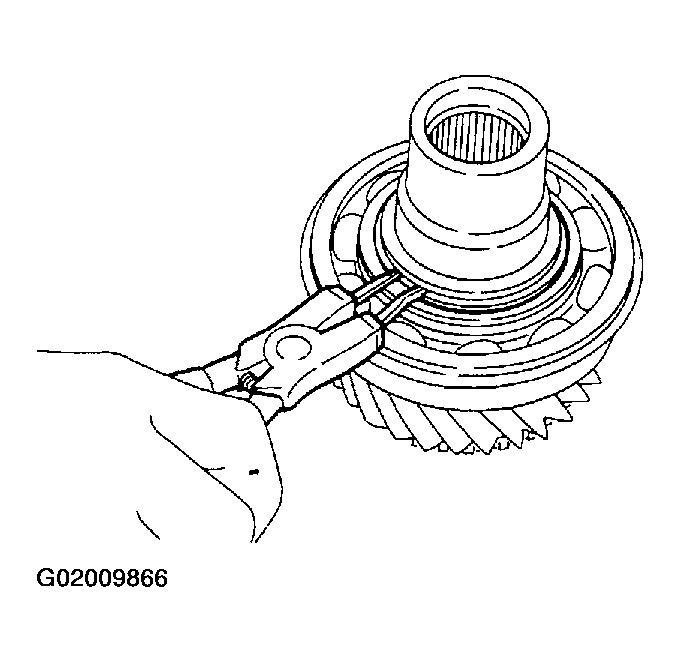

    Fig 1: Removing Snap Ring
    G02009866Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Pull out main gear bearing.

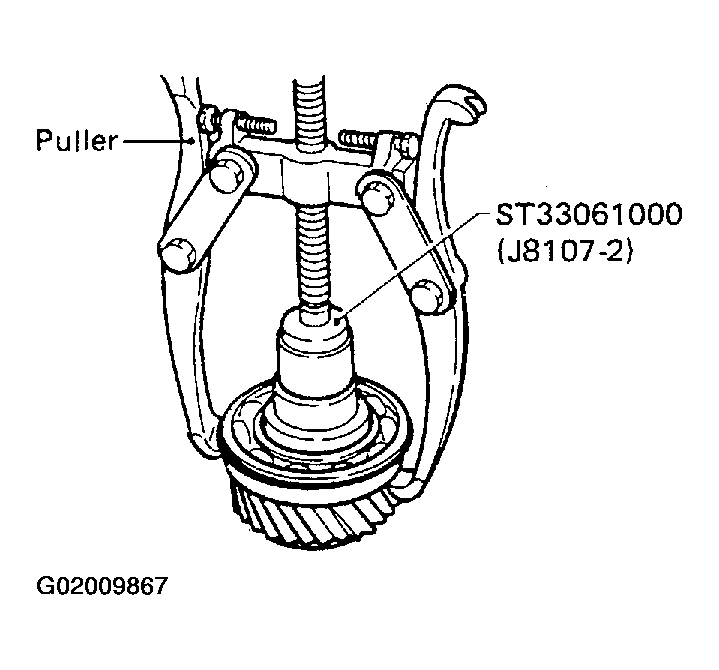

    Fig 2: Pulling Out Main Gear Bearing
    G02009867Courtesy of NISSAN MOTOR CO., U.S.A.
