Drive Shaft: Installation

WARNING: This page is about a different car, the 2004 Nissan Frontier and 2003 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

Apply multi-purpose grease.

Fig 1: Applying Multi-Purpose Grease
Courtesy of NISSAN MOTOR CO., U.S.A.
Install bearing spacer onto drive shaft.
CAUTION: Make sure that the bearing spacer is facing in the proper direction.

Fig 2: Installing Bearing Spacer Onto Drive Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
After installing wheel hub and wheel bearing, adjust wheel bearing preload. Refer to "PRELOAD ADJUSTMENT (2WD MODELS) " or "PRELOAD ADJUSTMENT (4WD MODELS) ".
When installing drive shaft, adjust drive shaft axial end play by selecting a suitable snap ring.
1. Temporarily install new snap ring on drive shaft in the same thickness as the one that was removed.

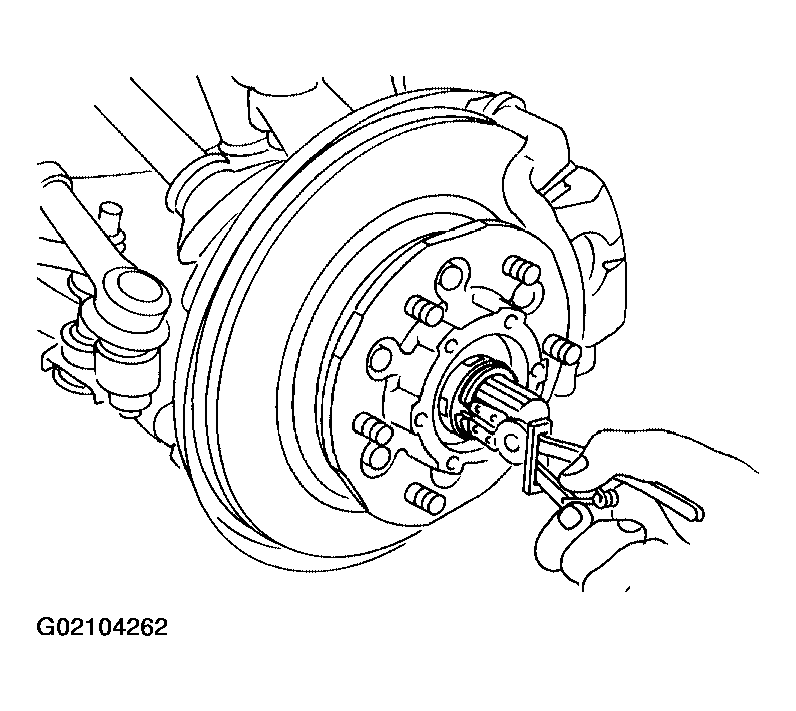

  Fig 3: Installing Snap Ring
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Set dial gauge on drive shaft end.
3. Measure axial end play of drive shaft.
  1. Axial end play :0.10-0.45 mm (0.004-0.0177 in)
4. If axial end play is not within the specified limit, select another snap ring. Refer to "DRIVE SHAFT AXIAL END PLAY ".

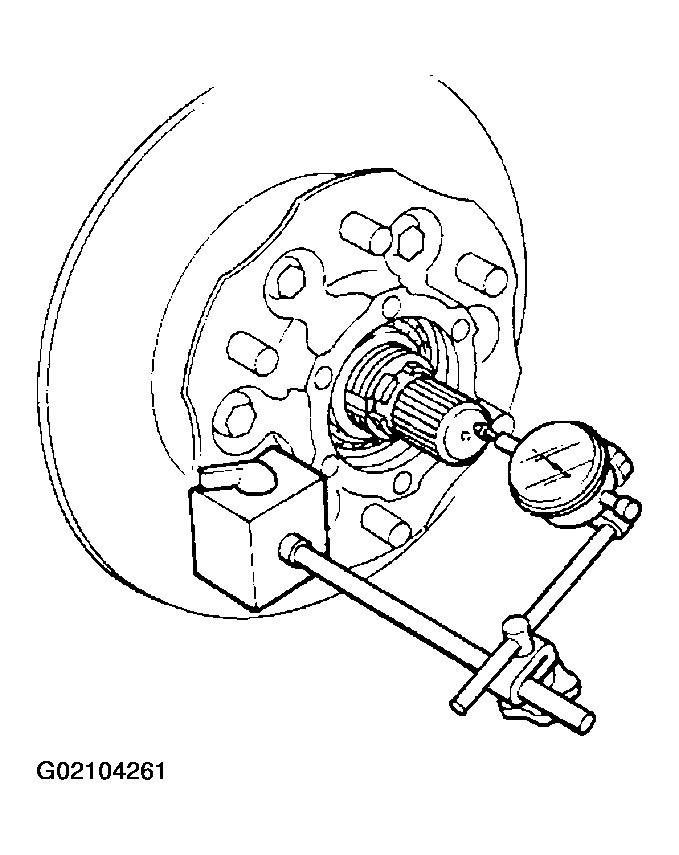

Fig 4: Measuring Axial End Play Of Drive Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
Install torsion bar spring.
Install auto-lock free-running hub or drive flange and snap ring. Refer to "REMOVAL AND INSTALLATION ".

Fig 5: Installing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
