Starting System: Overhaul

NOTE: See Fig 1 or Fig 2 for overhaul reference. Internal starter components are model specific. External components may vary depending upon application.

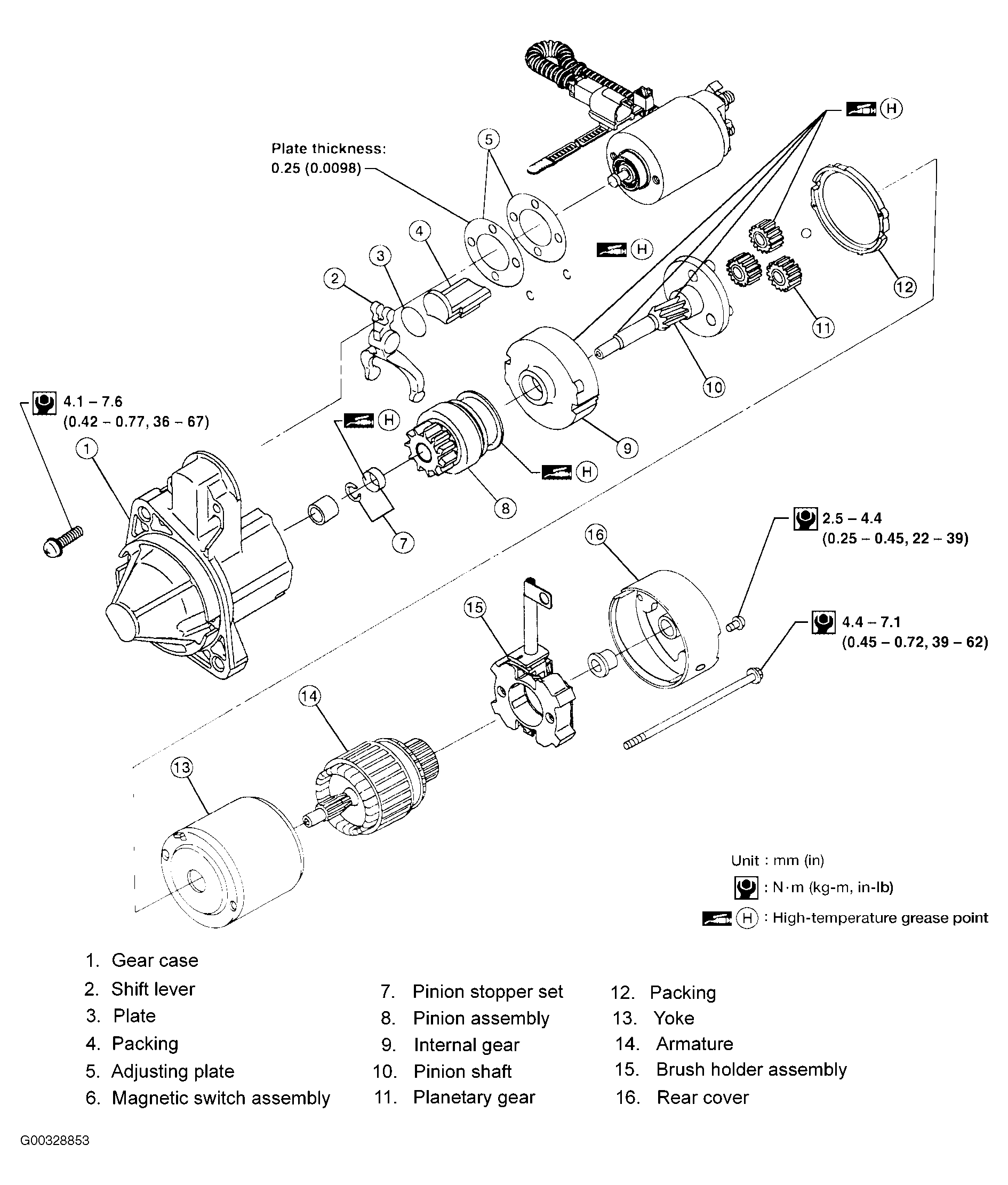

Fig 1: Exploded View Of Starter Motor Assembly (KA24DE Models) With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

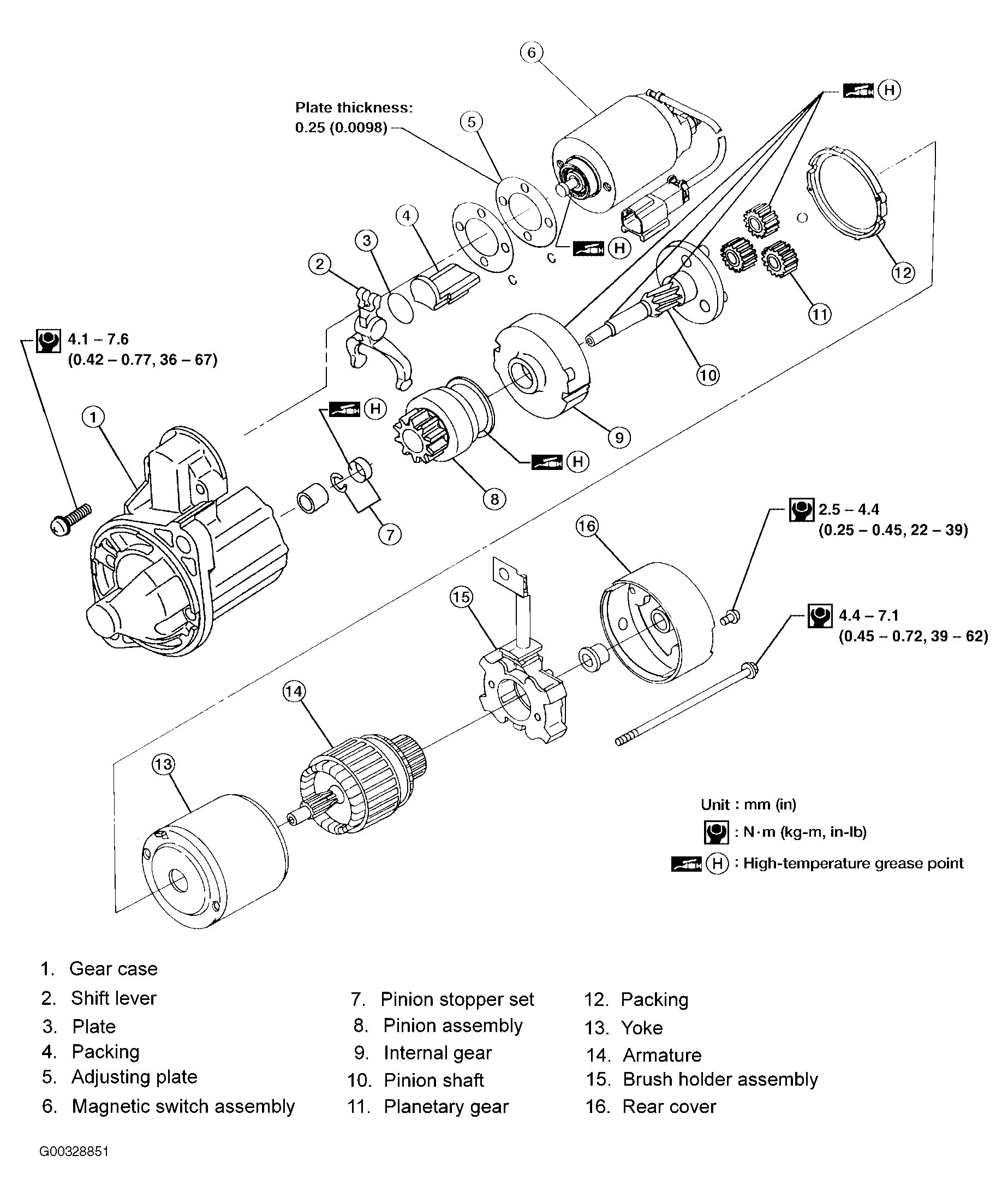

Fig 2: Exploded View Of Starter Motor Assembly (VG33E & VG33ER Models) With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
