Generators & Regulators: Overhaul: Alternator

For overhaul, see Fig 1 .

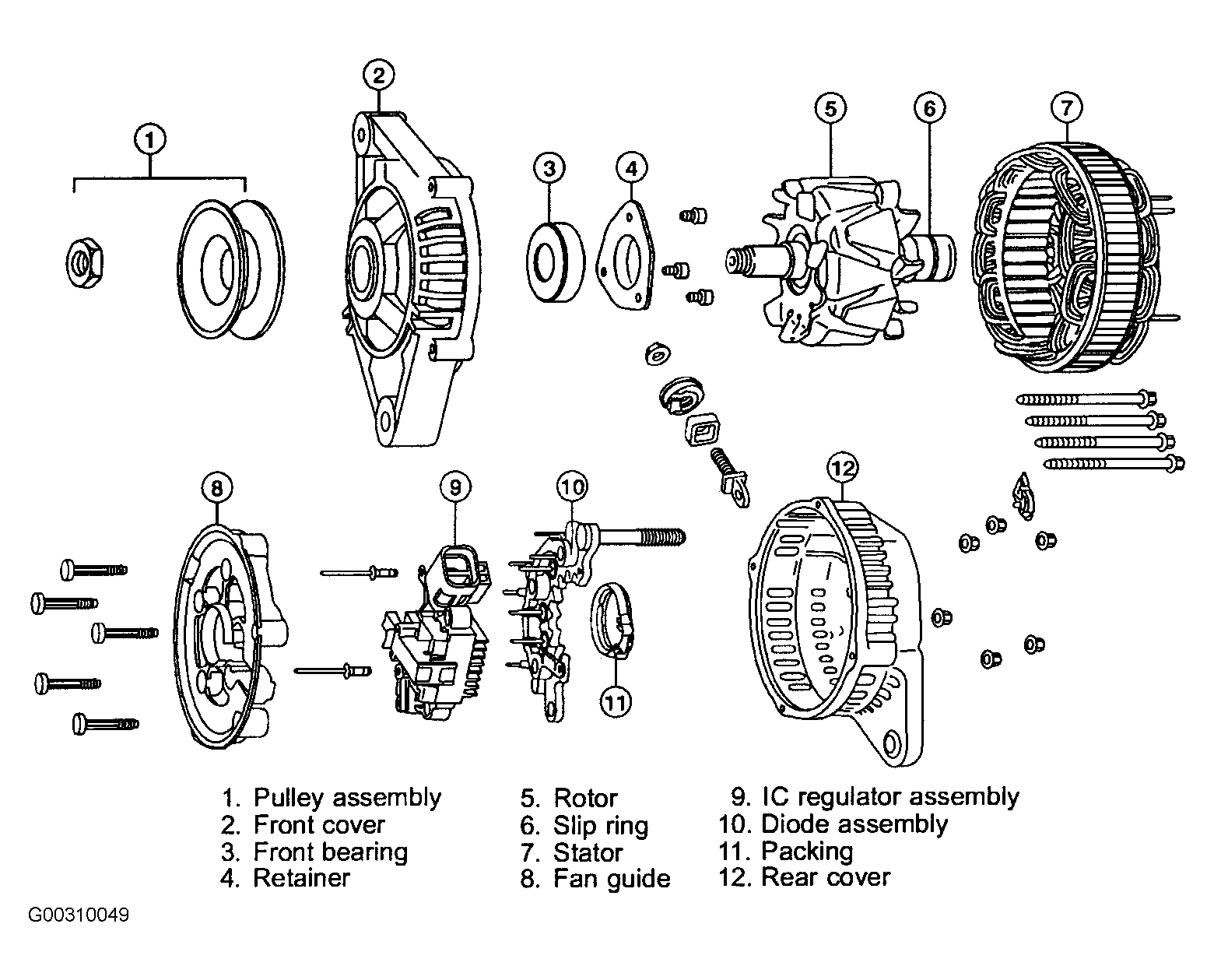

Fig 1: Exploded View of Alternator
G00310049Courtesy of NISSAN MOTOR CO., U.S.A.
