Wiring Diagram - KEYLES-

WARNING: This page is about a different car, the 2004 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For references in wiring diagrams to PG-POWER, see POWER DISTRIBUTION or GROUND DISTRIBUTION .

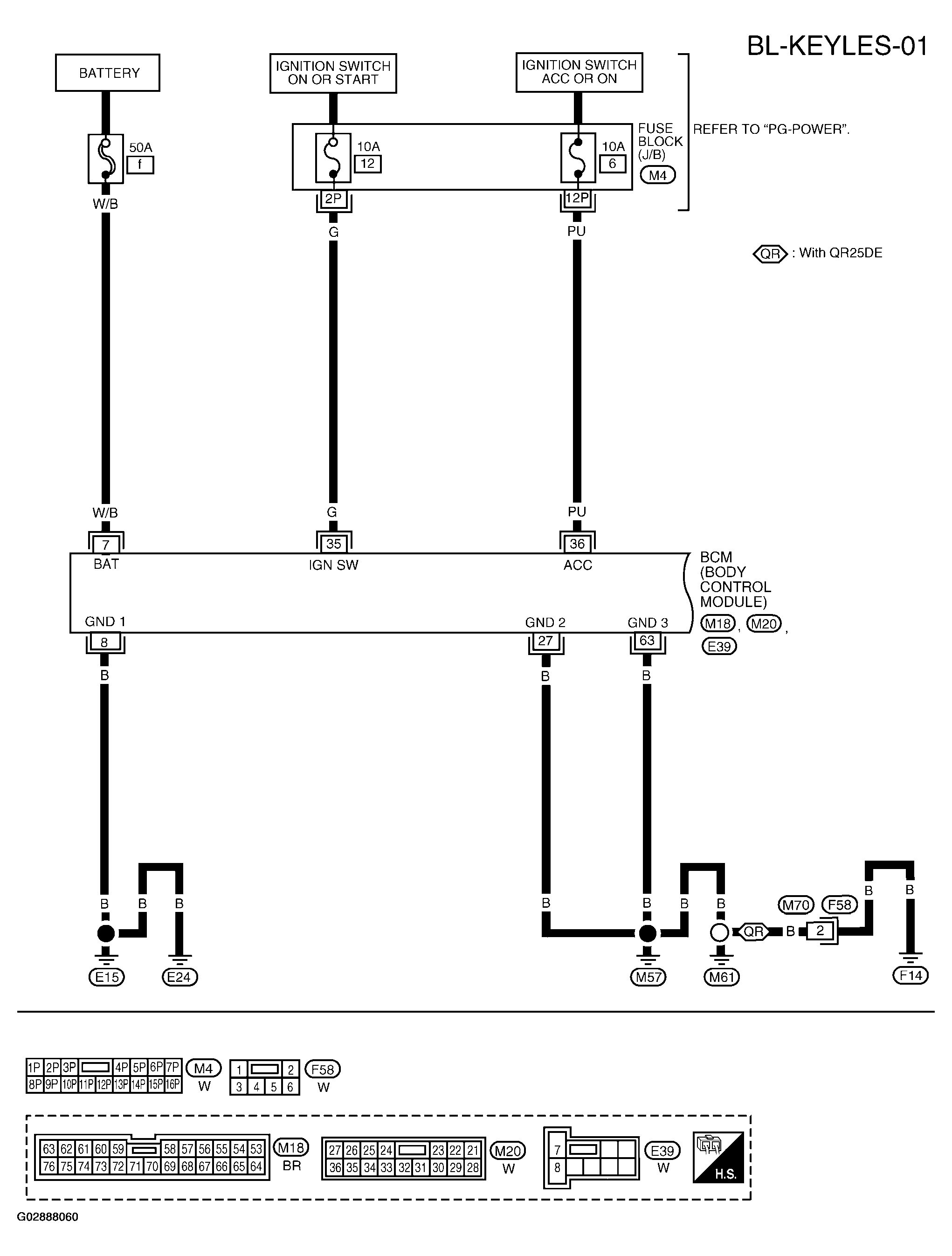

Fig 1: Wiring Diagram - KEYLES - BL-KEYLES-01

Courtesy of NISSAN MOTOR CO., U.S.A.

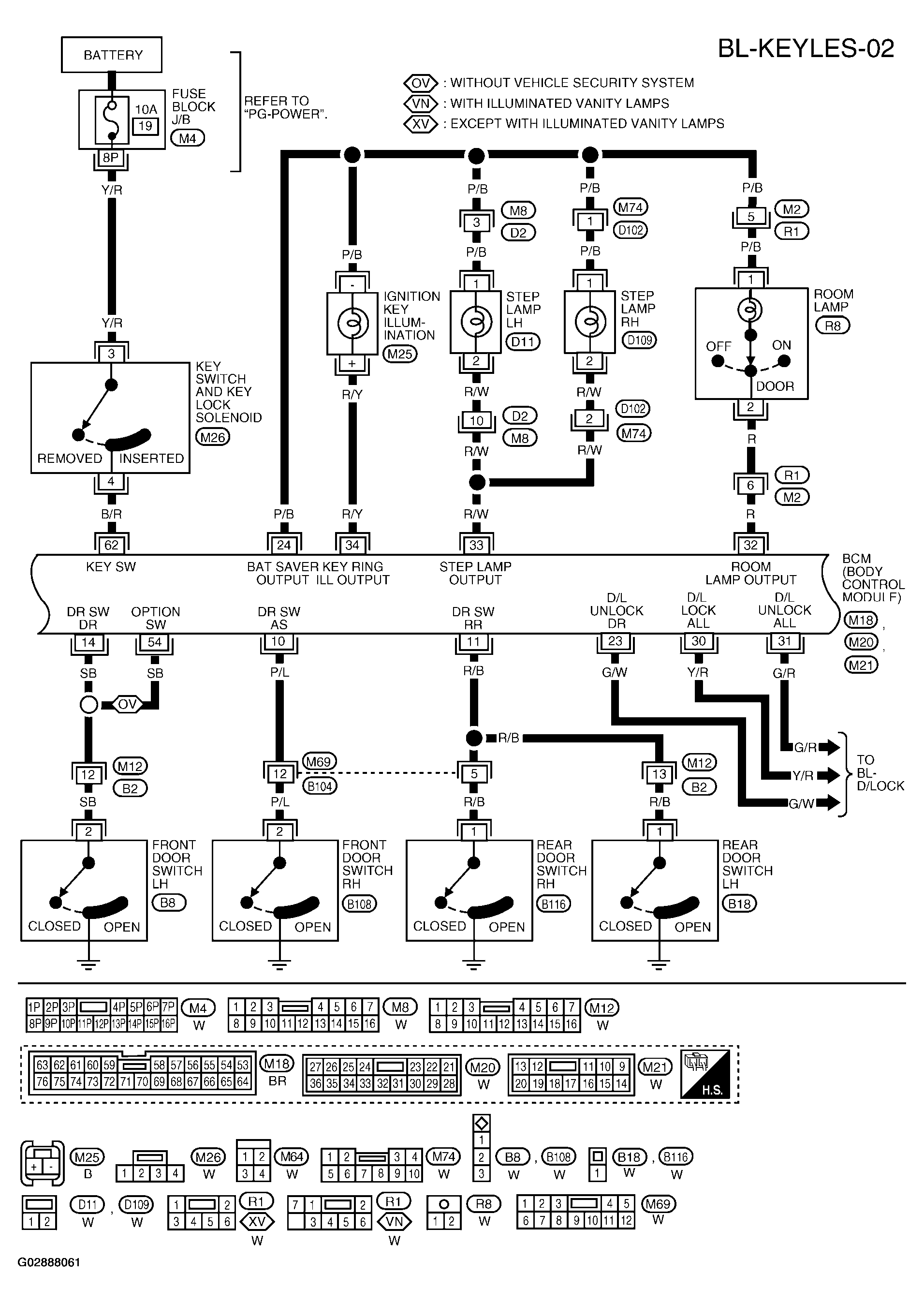

Fig 2: Wiring Diagram - KEYLES - BL-KEYLES-02

Courtesy of NISSAN MOTOR CO., U.S.A.

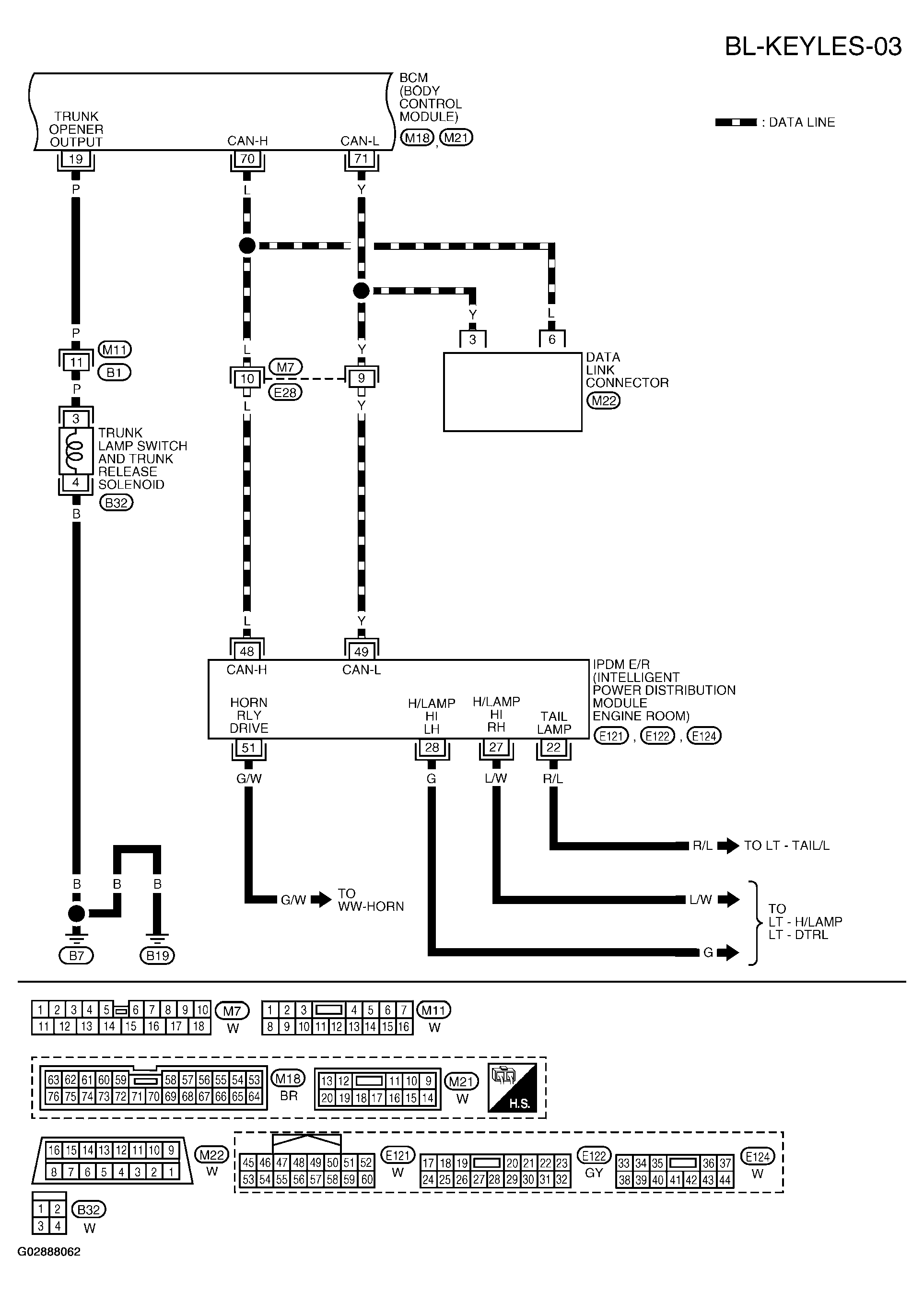

Fig 3: Wiring Diagram - KEYLES - BL-KEYLES-03

Courtesy of NISSAN MOTOR CO., U.S.A.

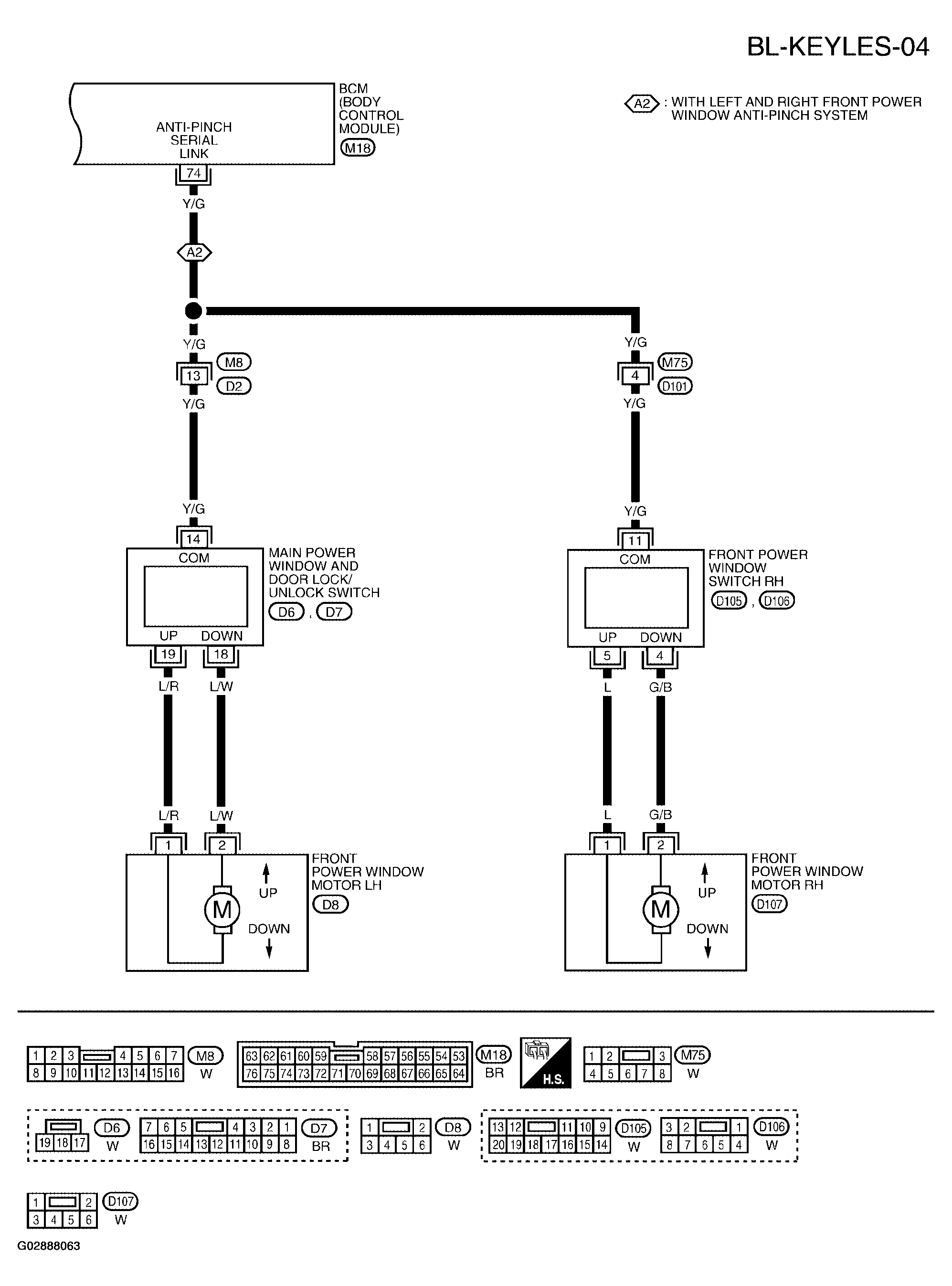

Fig 4: Wiring Diagram - KEYLES - BL-KEYLES-04

Courtesy of NISSAN MOTOR CO., U.S.A.
