Component Locations
COMPONENT LOCATIONS (ALTIMA)

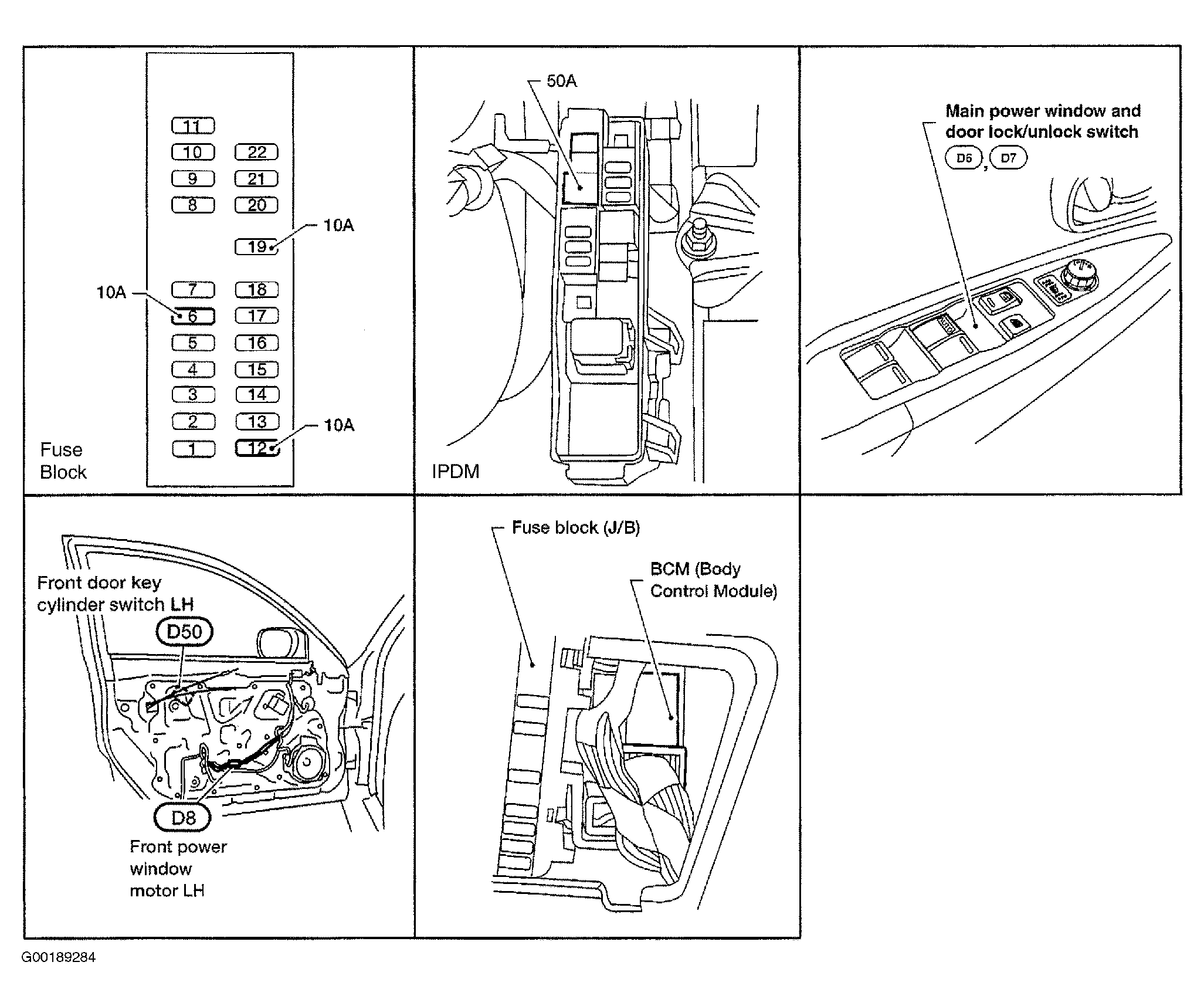

| Component | Location |
|---|---|
| Body Computer Module | Behind Left Side Of Dash, See Fig 1 |
| Left Front Power Window Motor | In Front Left Door, See Fig 1 |
| Fuse Block | Behind Left Side Of Dash, Next To BCM, See Fig 1 |
| Intelligent Power Distribution Module | Mounted In Right Side Of Engine Compartment, Next To Washer Bottle, See Fig 1 |
| Main Power Window & Door Lock/Unlock Switch | Mounted On Front Left Door Panel, See Fig 1 |
