Consult-II Function

The functions shown in Fig 1 , are executed by combining data received and command transmitted via the communication line from the BCM.

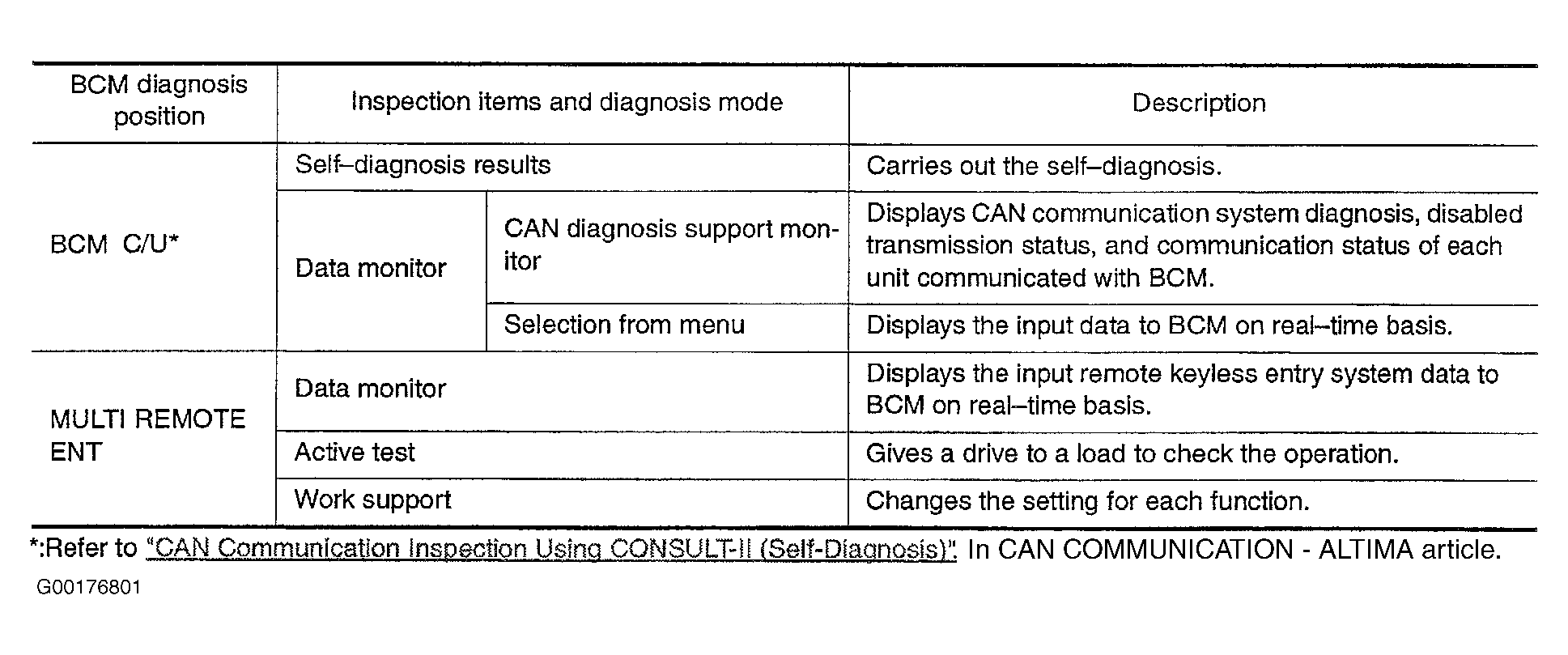

Fig 1: Identifying BCM Diagnosis Position

Courtesy of NISSAN MOTOR CO., U.S.A.
