Step Lamp Operation Check

NOTE: For connector symbols, see HOW TO READ CONNECTOR SYMBOLS  .

For step lamp operation check, see Fig 1 .

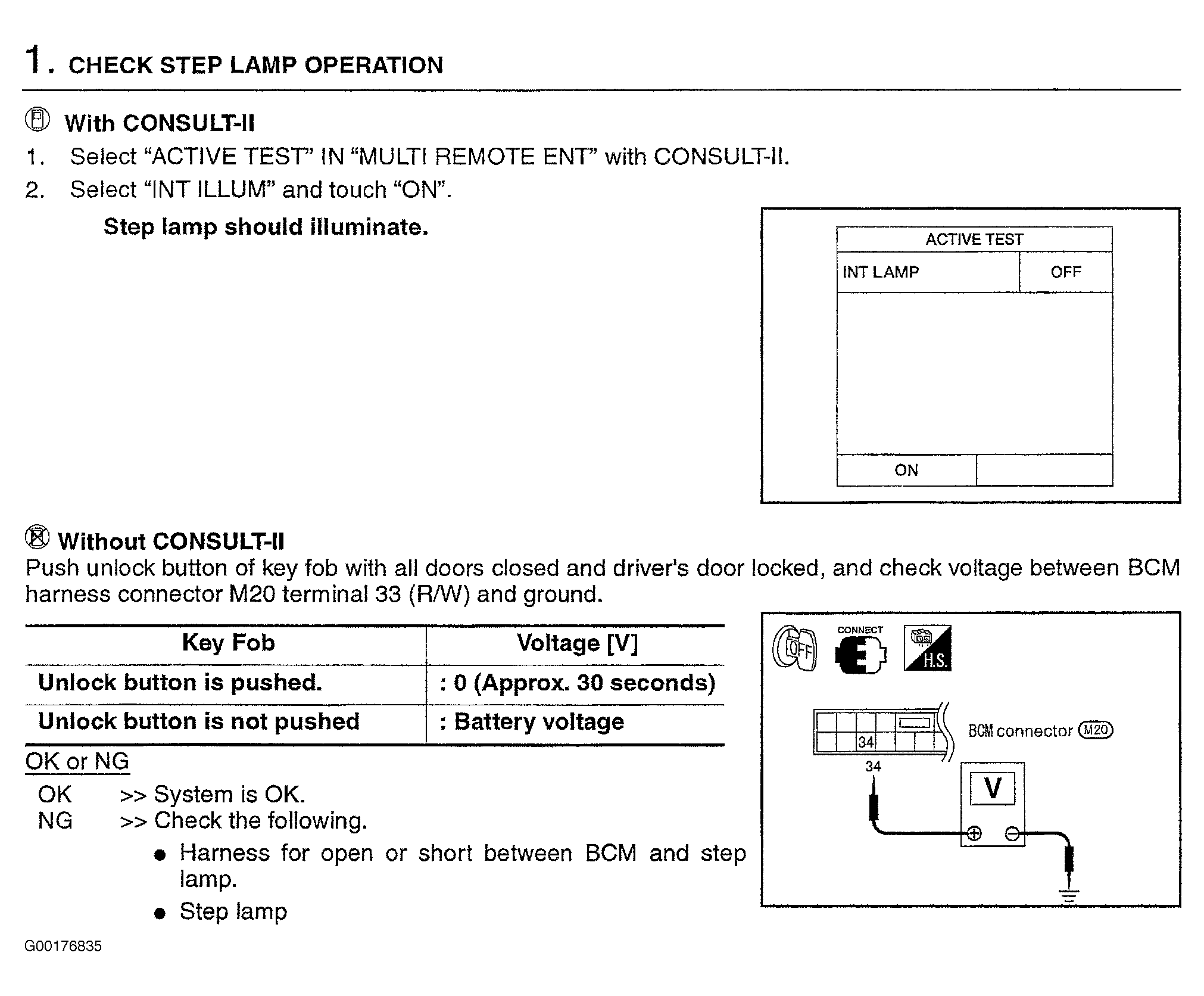

Fig 1: Identifying Step Lamp Operation Check
G00176835Courtesy of NISSAN MOTOR CO., U.S.A.
