Ignition Illumination Operation Check

NOTE: For connector symbols, see HOW TO READ CONNECTOR SYMBOLS  .

For ignition illumination operation check, see Fig 1 .

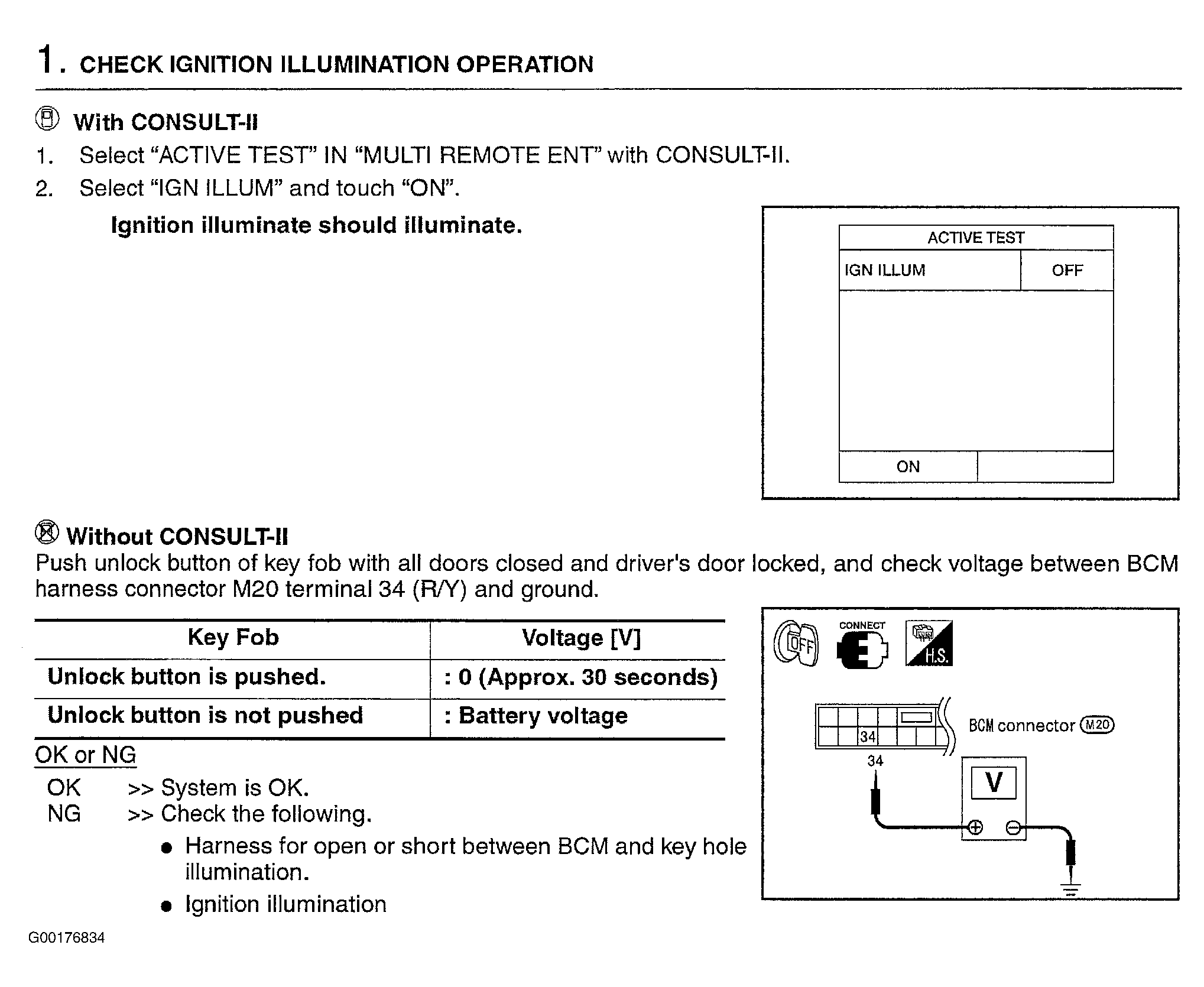

Fig 1: Identifying Ignition Illumination Operation Check
G00176834Courtesy of NISSAN MOTOR CO., U.S.A.
