Hazard Reminder Check

NOTE: For combination switch inspection according to self-diagnostic results, see COMBINATION SWITCH INSPECTION ACCORDING TO SELF-DIAGNOSTIC RESULTS in BODY CONTROL MODULE - ALTIMA article.

NOTE: For CAN Communication, see CAN SYSTEM - ALTIMA article.

For hazard reminder check, see Fig 1 -Fig 4 .

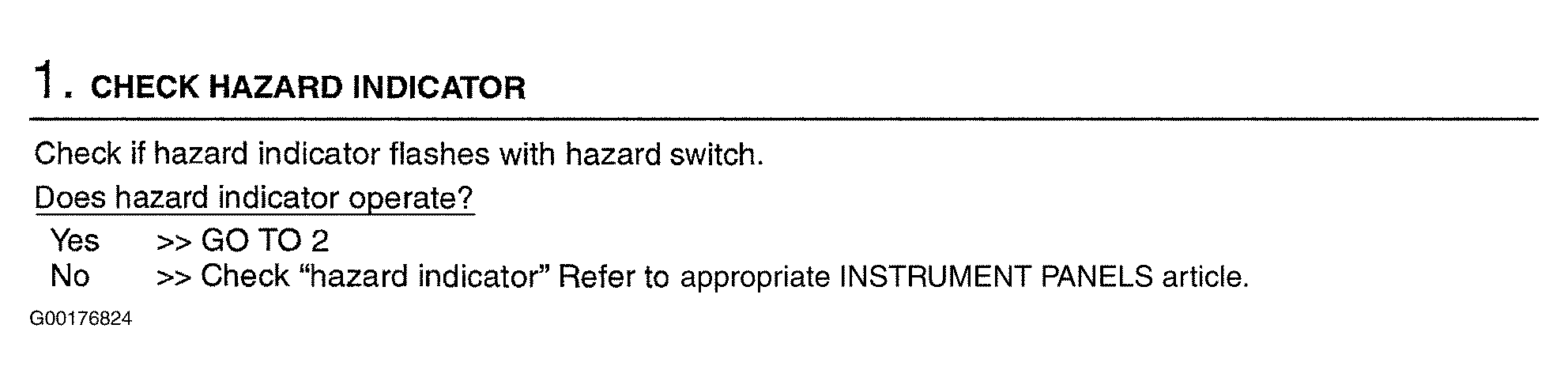

Fig 1: Identifying Hazard Reminder Check, Step 1

Courtesy of NISSAN MOTOR CO., U.S.A.

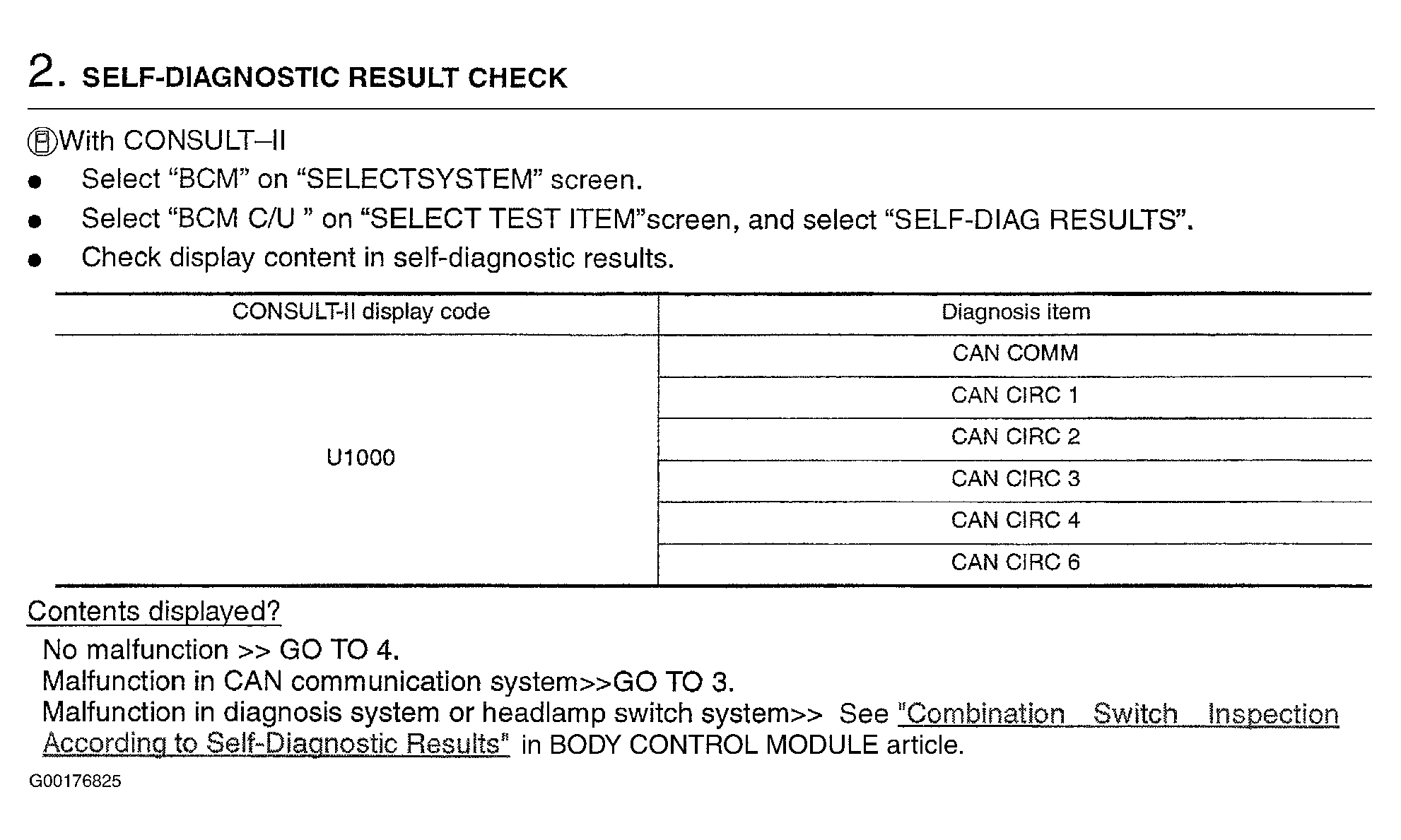

Fig 2: Identifying Hazard Reminder Check, Step 2

Courtesy of NISSAN MOTOR CO., U.S.A.

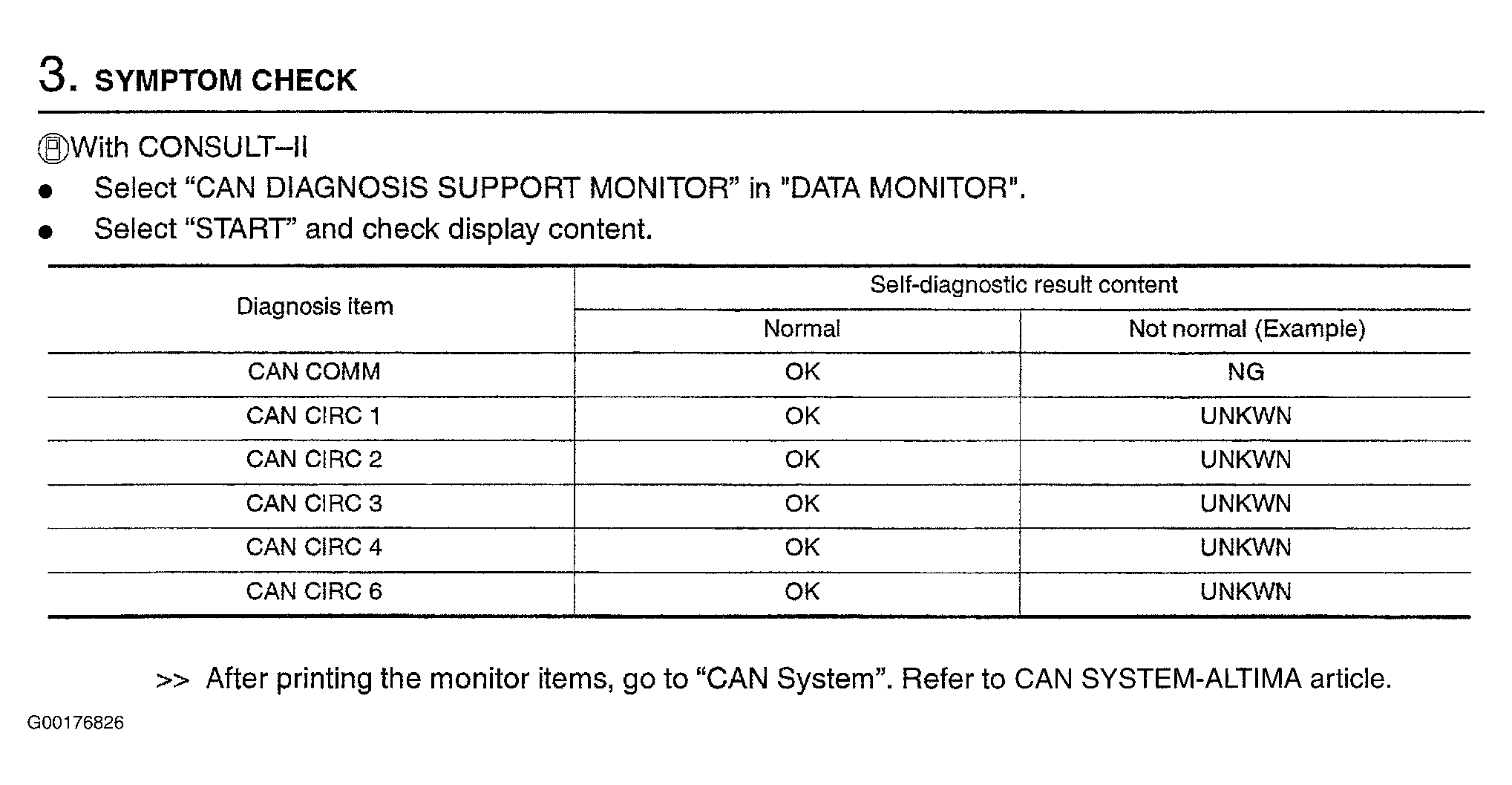

Fig 3: Identifying Hazard Reminder Check, Step 3

Courtesy of NISSAN MOTOR CO., U.S.A.

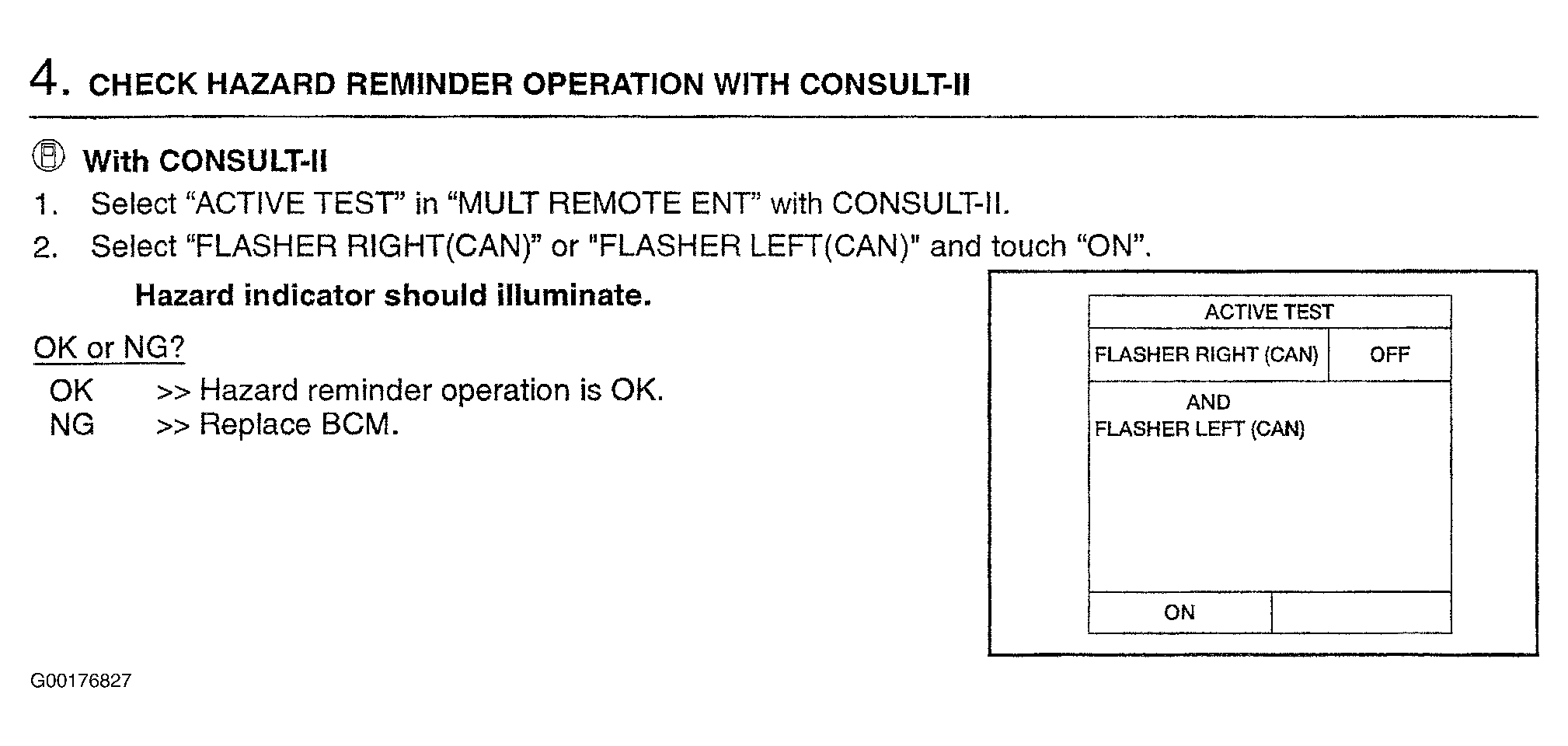

Fig 4: Identifying Hazard Reminder Check, Step 4

Courtesy of NISSAN MOTOR CO., U.S.A.
