Door Switch Check

NOTE: For connector symbols, see HOW TO READ CONNECTOR SYMBOLS  .

For door switch check, see Fig 1 and Fig 2 .

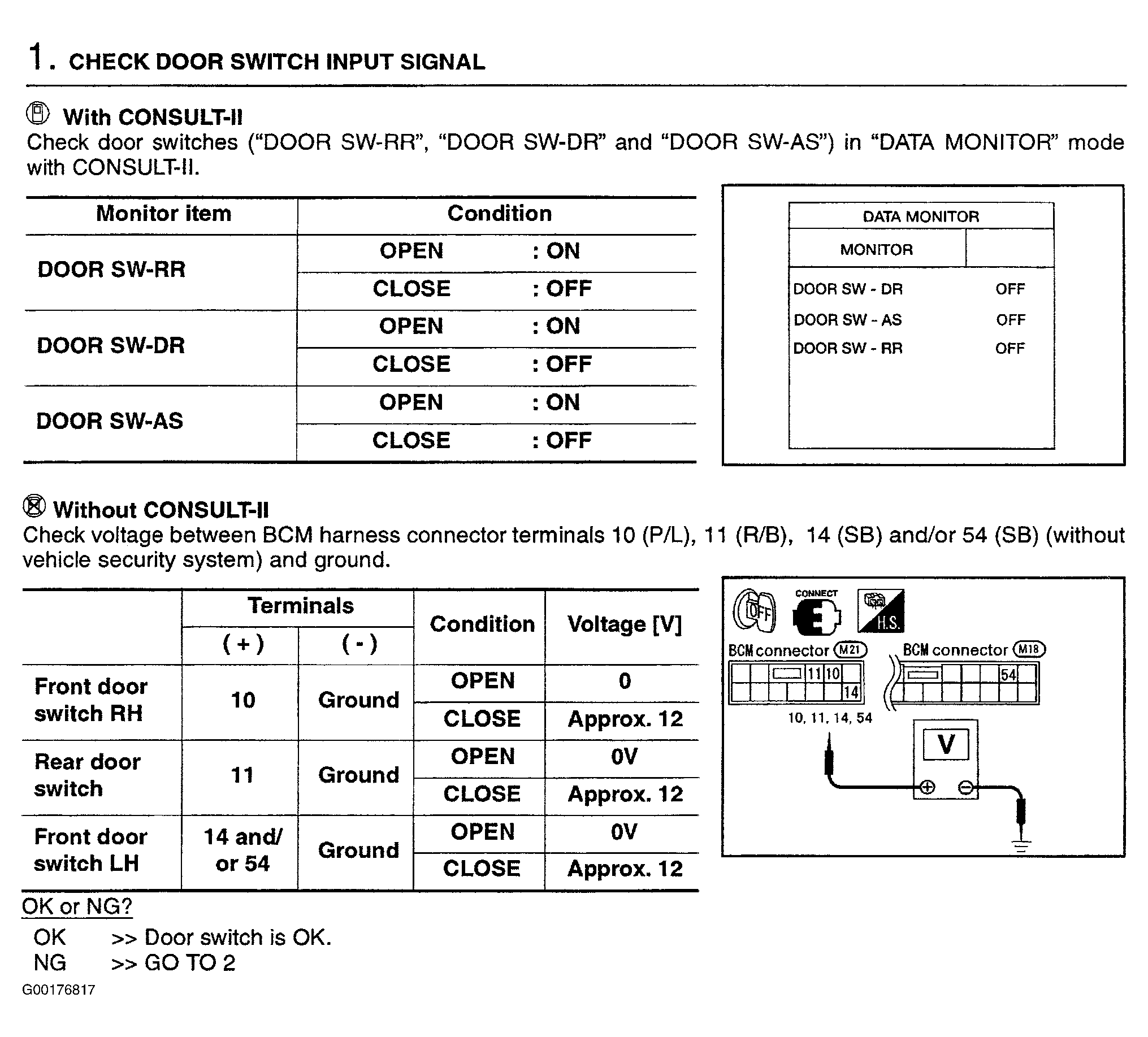

Fig 1: Identifying Door Switch Check, Step 1
G00176817Courtesy of NISSAN MOTOR CO., U.S.A.

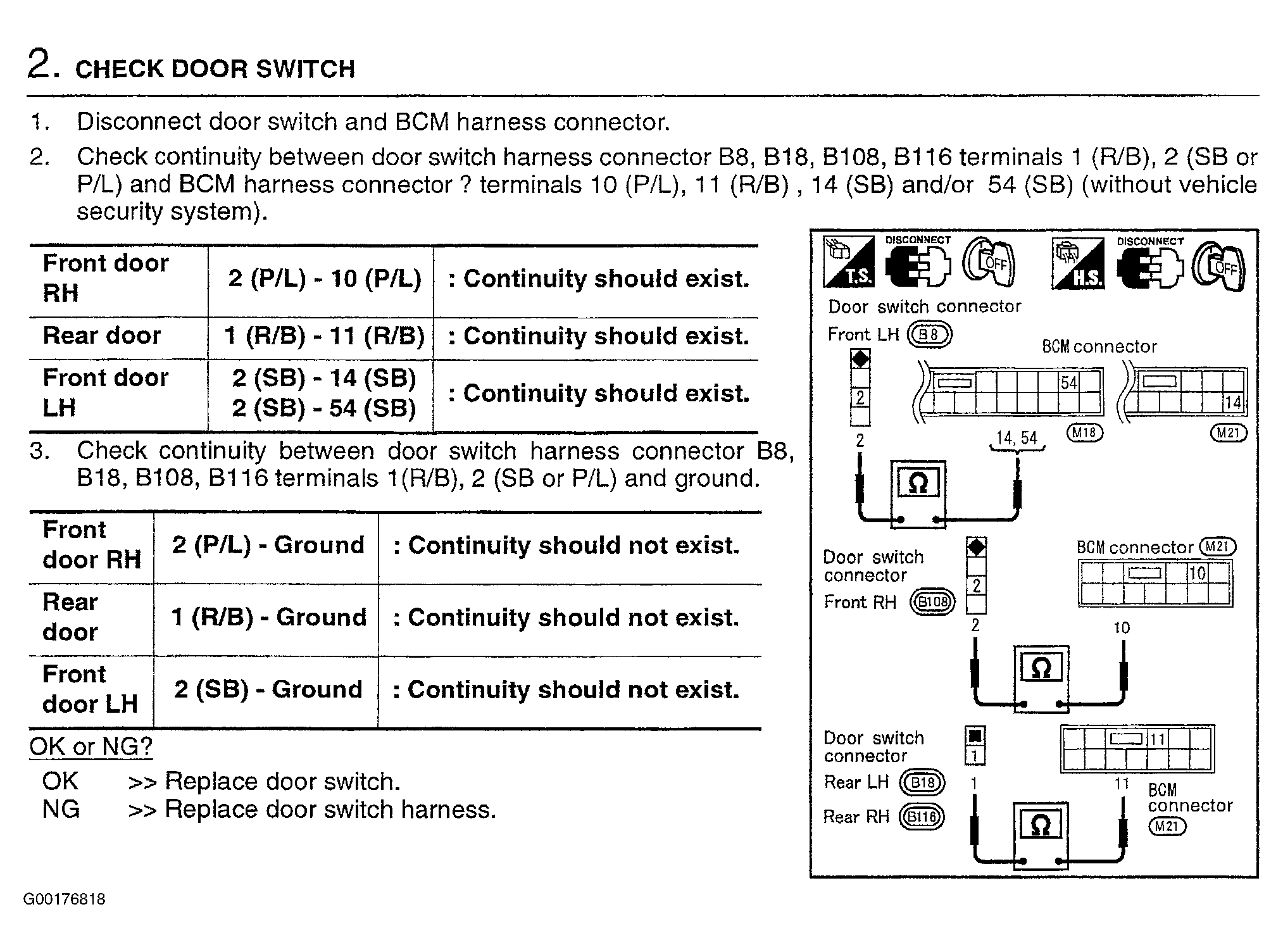

Fig 2: Identifying Door Switch Check, Step 2
G00176818Courtesy of NISSAN MOTOR CO., U.S.A.
