High Clutch Components: Notes

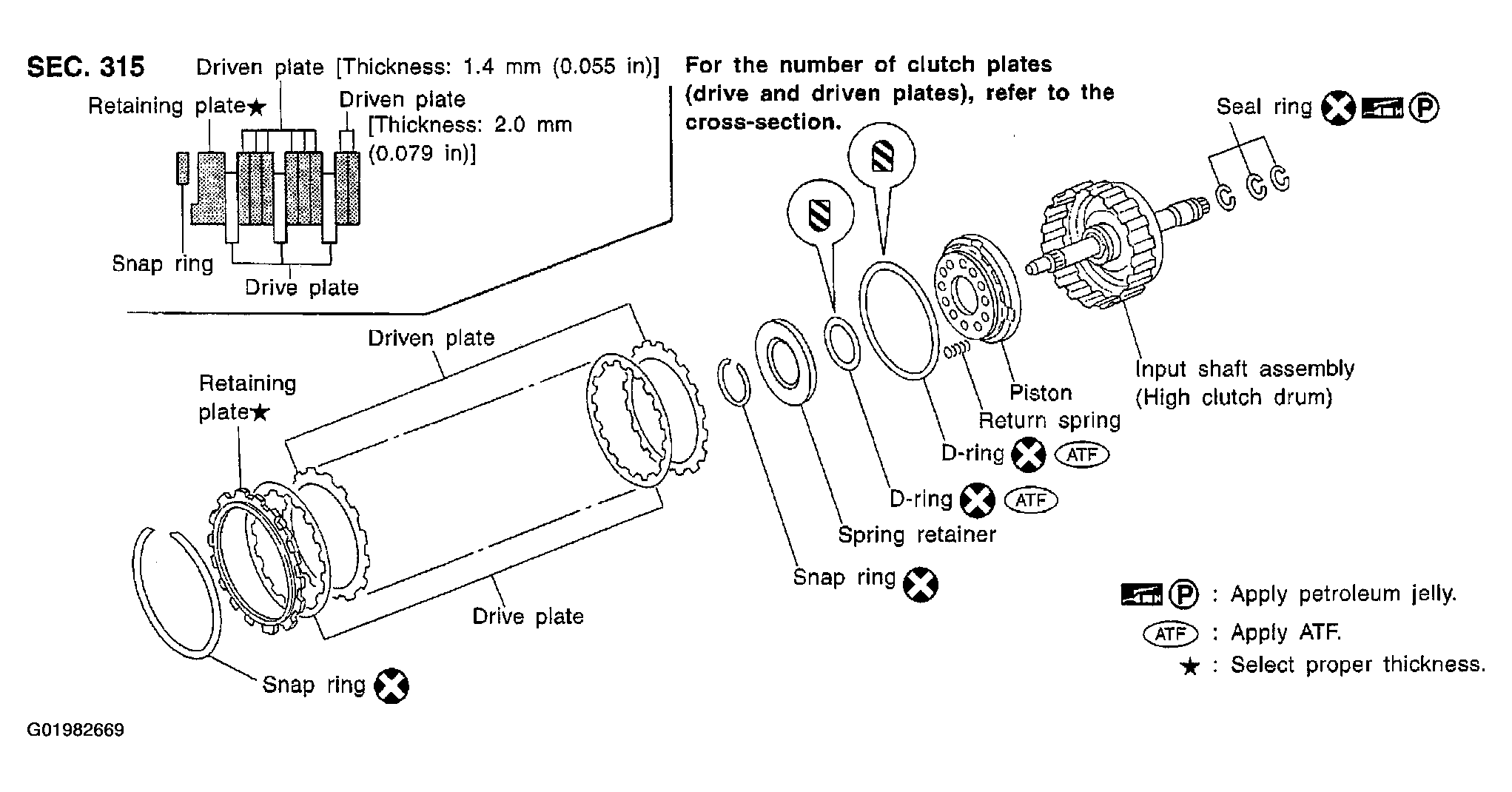

Fig 1: Exploded View Of High Clutch Components
G01982669Courtesy of NISSAN MOTOR CO., U.S.A.
