Control Valve Lower Body: Components

Apply ATF to all components before installation .

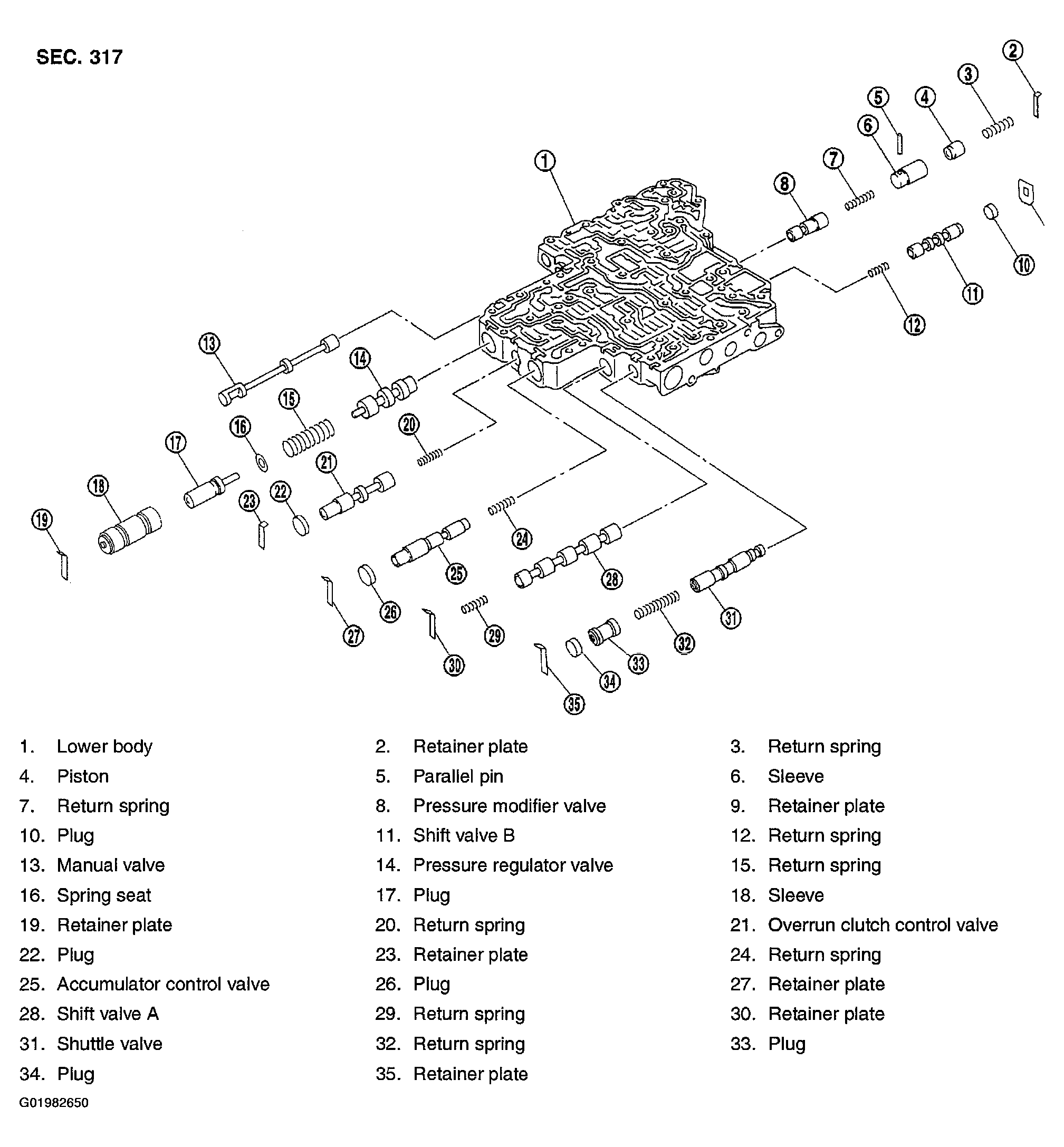

Fig 1: Exploded View Of Control Valve Lower Body Components

G01982650

Courtesy of NISSAN MOTOR CO., U.S.A.
