Work Flow Chart

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

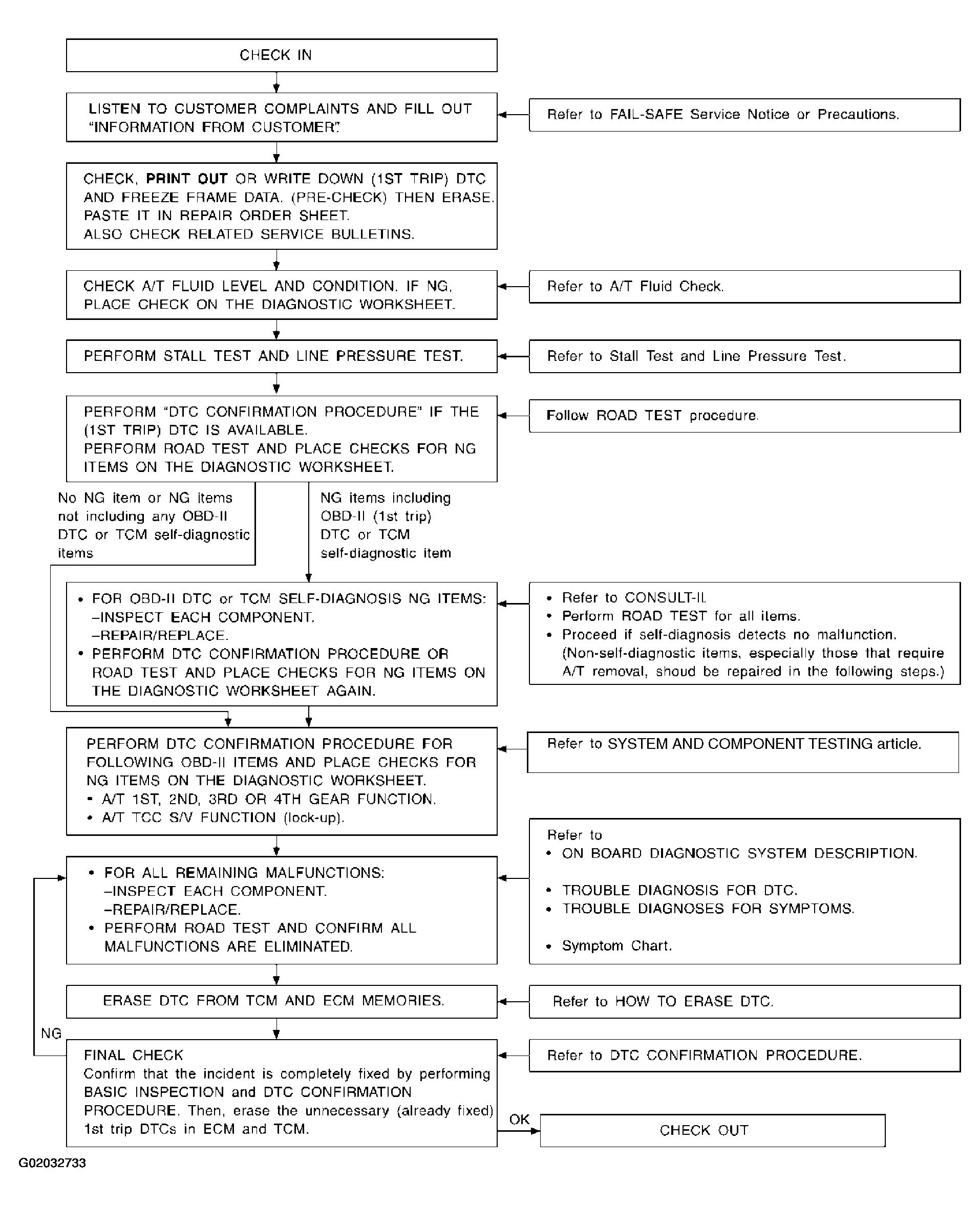

Fig 1: Work Flow Chart
G02032733Courtesy of NISSAN MOTOR CO., U.S.A.
