Home >> Nissan-Datsun >> 2001 >> Sentra XE, Standard >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System >> Description >> System Components

System Components

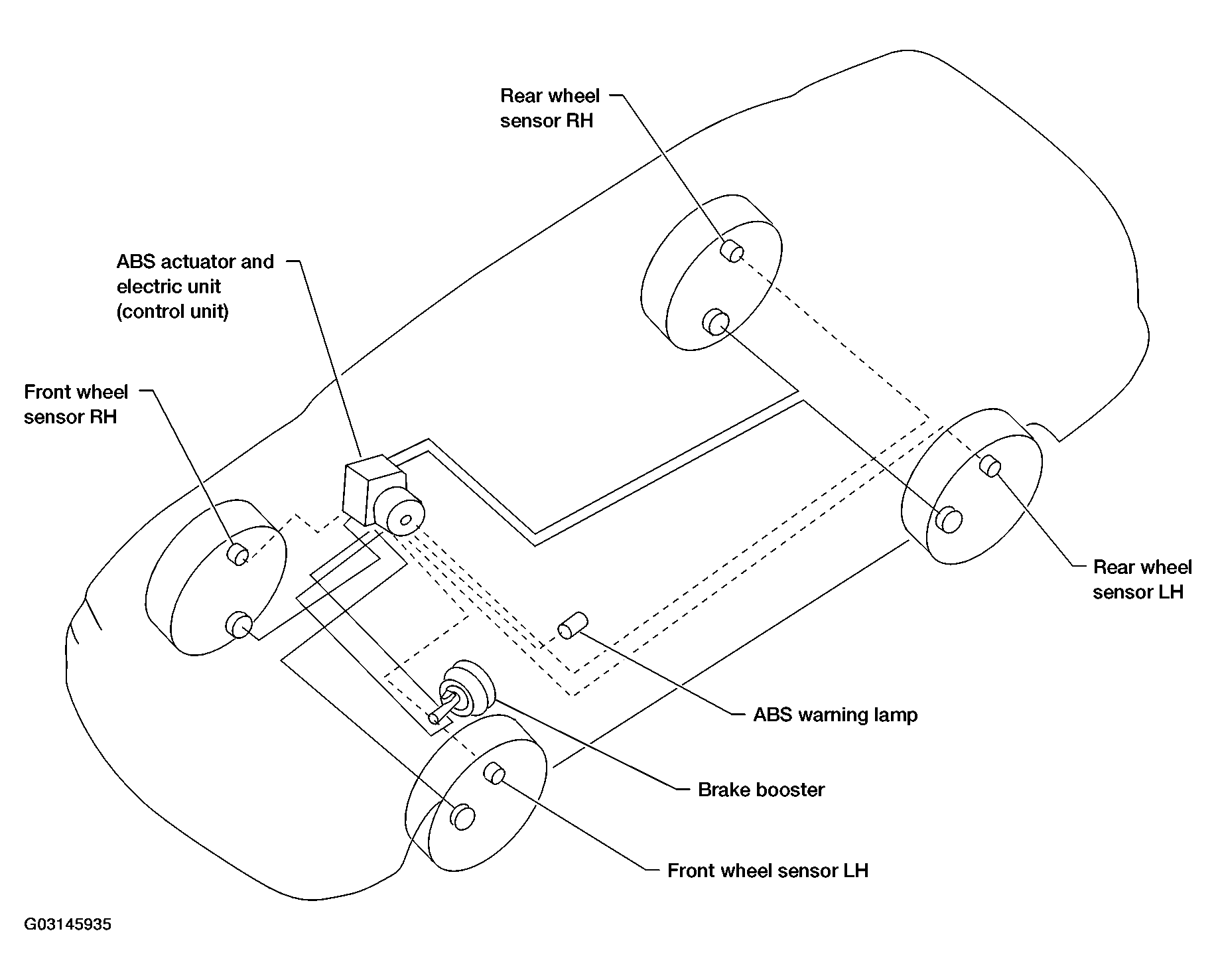

Fig 1: Identifying ABS Components

G03145935
