ASCD Steering Switch: Sentra

Using ohmmeter, check resistance between terminals No. 1 and 4 on ASCD steering switch component connector. See Fig 1. If resistances are not within specification, replace switch.

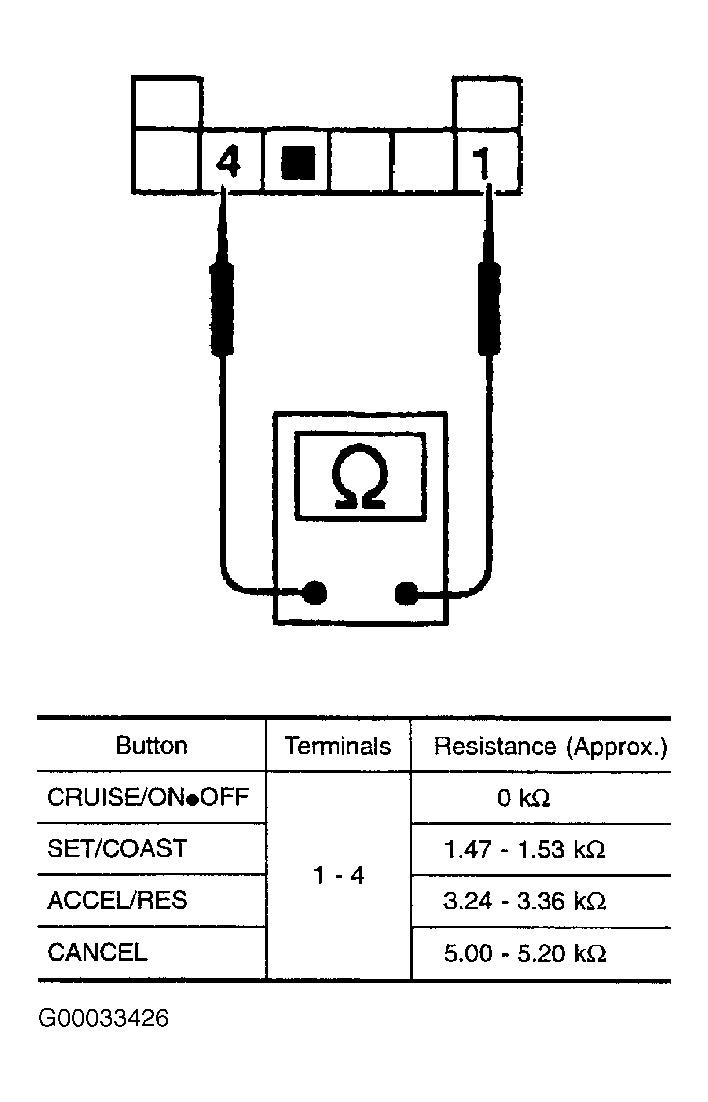

Fig 1: Testing ASCD Steering Switch

Courtesy of NISSAN MOTOR CO., U.S.A.
