Control Valve Upper Body: Assembly

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

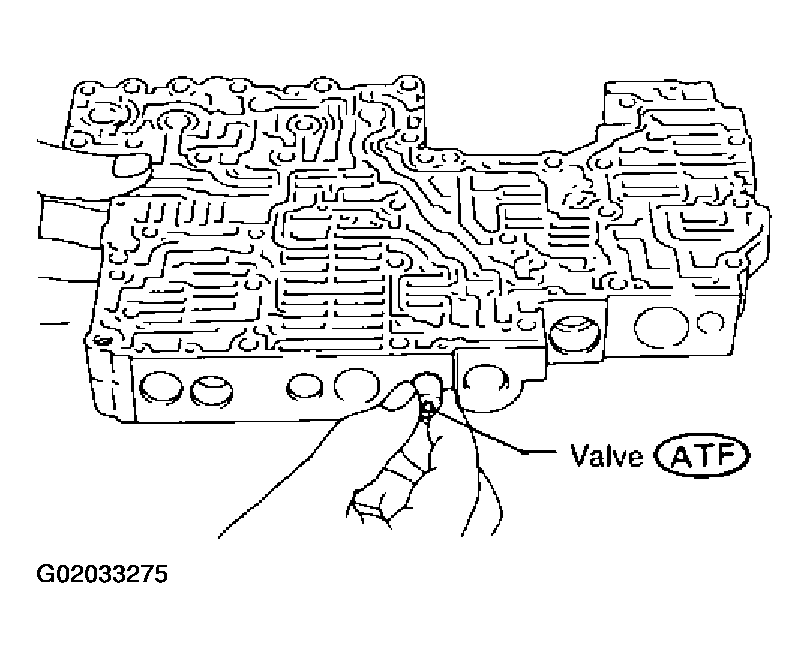

Lubricate the control valve body and all valves with ATF. Install control valves by sliding them carefully into their bores.
- Be careful not to scratch or damage valve body.

  Fig 1: Lubricating Control Valve Body And All Valves With ATF
  Courtesy of NISSAN MOTOR CO., U.S.A.

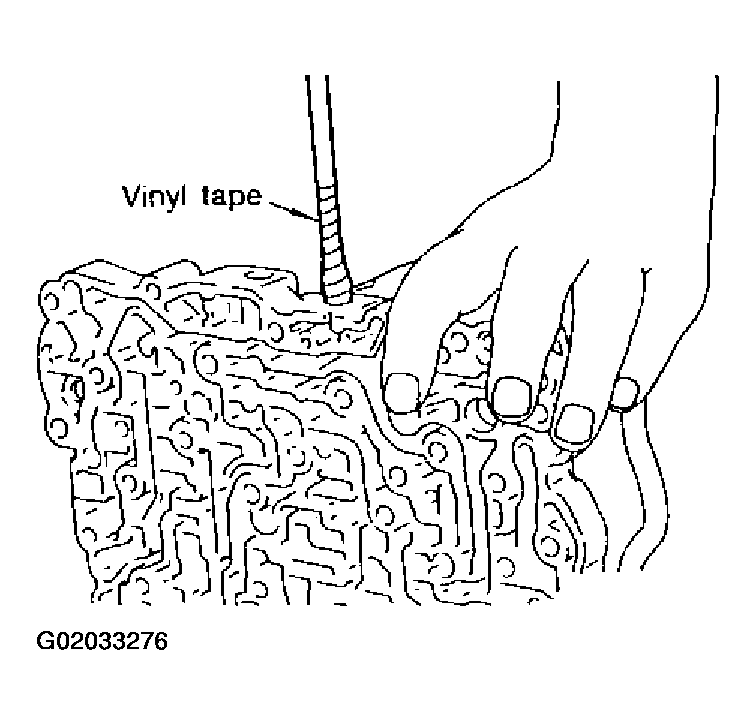

- Wrap a small screwdriver with vinyl tape and use it to insert the valves into proper position.

  Fig 2: Inserting Valves Into Proper Position
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Pressure regulator valve
- If pressure regulator plug is not centered properly, sleeve cannot be inserted into bore in upper body. If this happens, use vinyl tape wrapped screwdriver to center sleeve until it can be inserted.
- Turn sleeve slightly while installing.

  Fig 3: Inserting Sleeve Into Bore In Upper Body
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Accumulator control plug
- Align protrusion of accumulator control sleeve with notch in plug.
- Align parallel pin groove in plug with parallel pin, and install accumulator control valve.

  Fig 4: Aligning Protrusion Of Accumulator Control Sleeve With Notch In Plug
  Courtesy of NISSAN MOTOR CO., U.S.A.

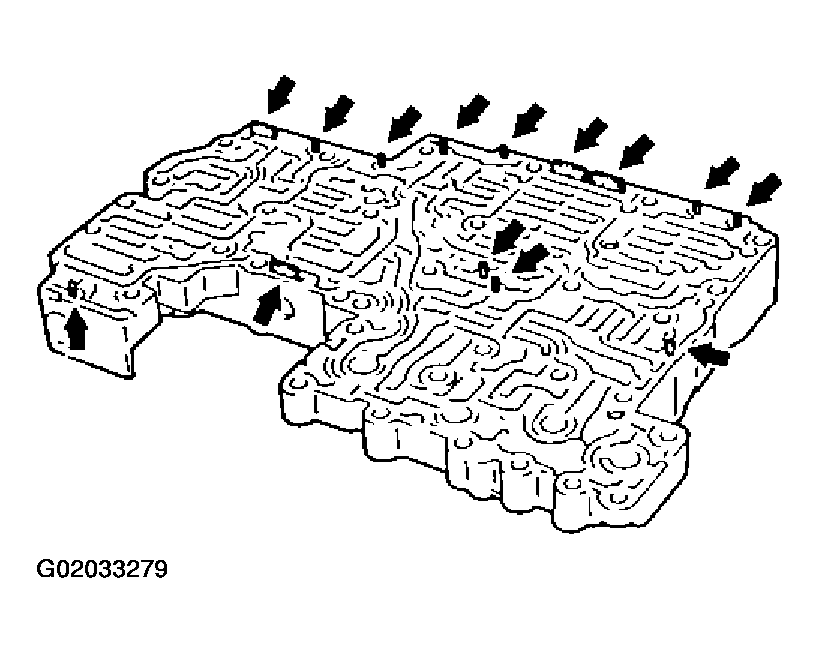

Install parallel pins and retainer plates.

Fig 5: Installing Parallel Pins And Retainer Plates
Courtesy of NISSAN MOTOR CO., U.S.A.
- While pushing plug, install parallel pin.

  Fig 6: Pushing Plug And Installing Parallel Pin
  Courtesy of NISSAN MOTOR CO., U.S.A.

  4-2 sequence valve and relay valve
- Push 4-2 sequence valve and relay valve with wire wrapped in vinyl tape to prevent scratching valve body. Install parallel pins.

  Fig 7: Installing Parallel Pins
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Insert retainer plate while pushing spring.

  Fig 8: Inserting Retainer Plate While Pushing Spring
  Courtesy of NISSAN MOTOR CO., U.S.A.
