Control Unit Ground

Check resistance between the terminals and ground.

Resistance: 0ohm

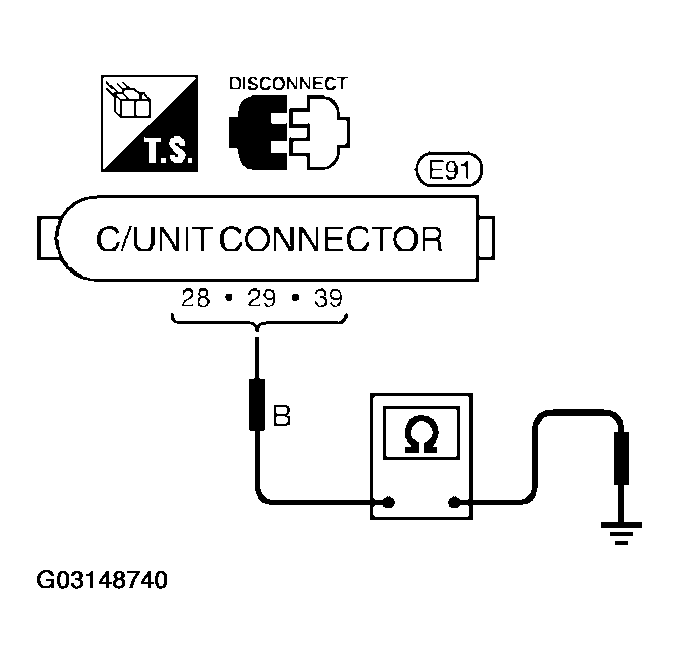

Fig 1: Checking Control Unit Ground Circuit

G03148740
