Fuel Pump & Fuel Level Sensor

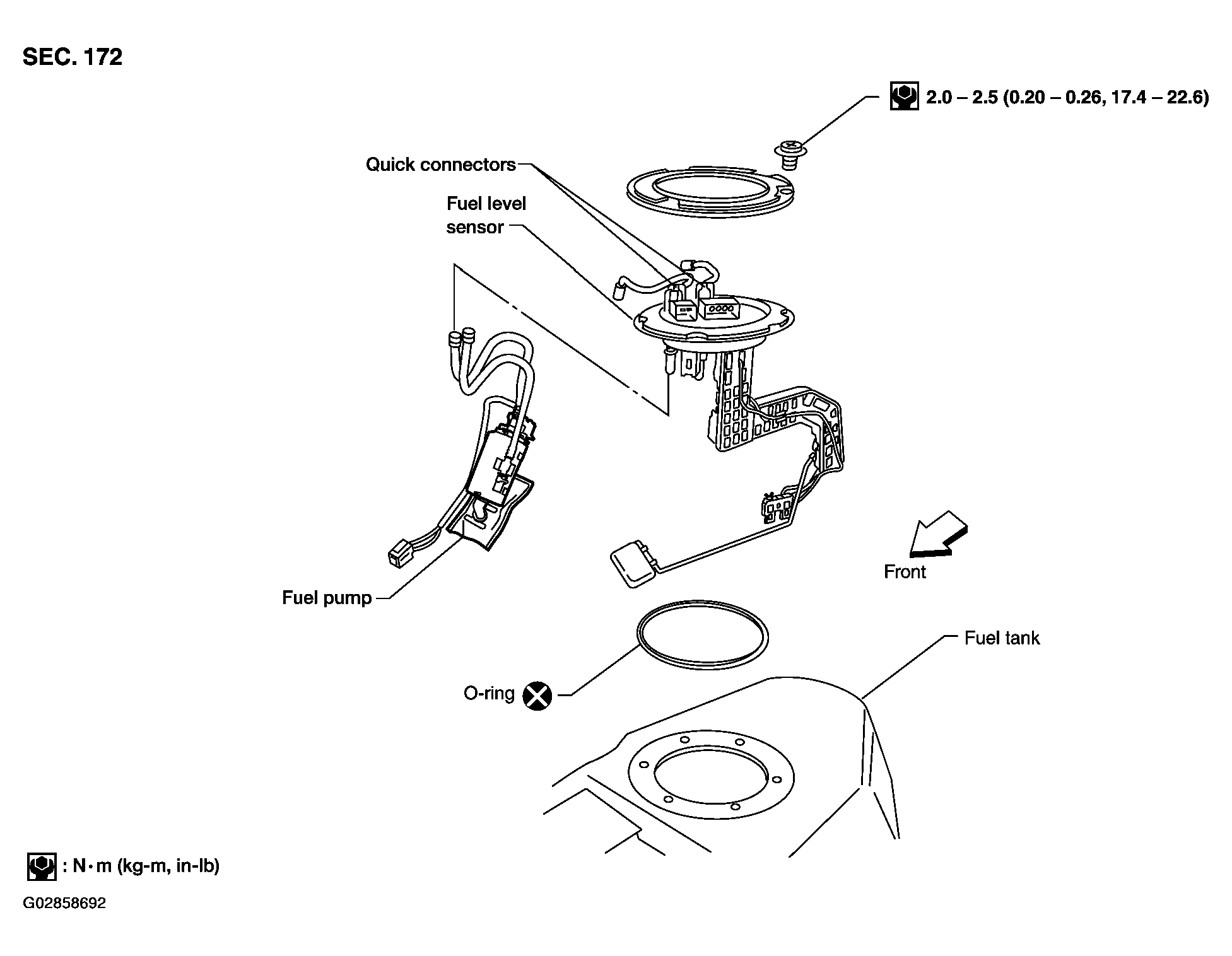

Fig 1: Exploded View Of Fuel Pump & Fuel Level Sensor Components With Torque Specifications

Remove fuel tank. Refer to "FUEL TANK ".
Remove the six screws.
Remove fuel level sensor retainer and fuel level sensor.
Remove fuel pump with bracket while lifting the pawl of the fuel pump bracket upward.

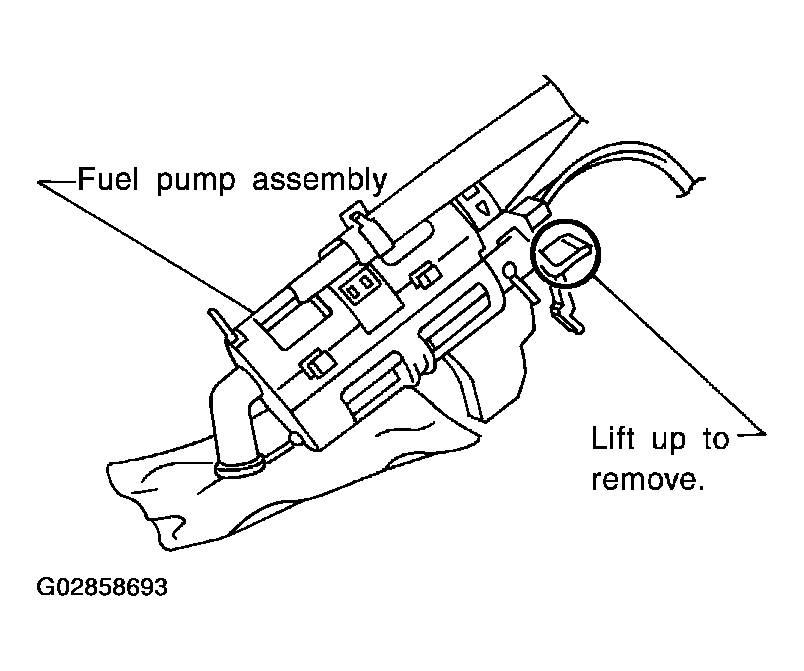

Fig 2: Identifying Fuel Pump Assembly
Remove fuel level sensor assembly.

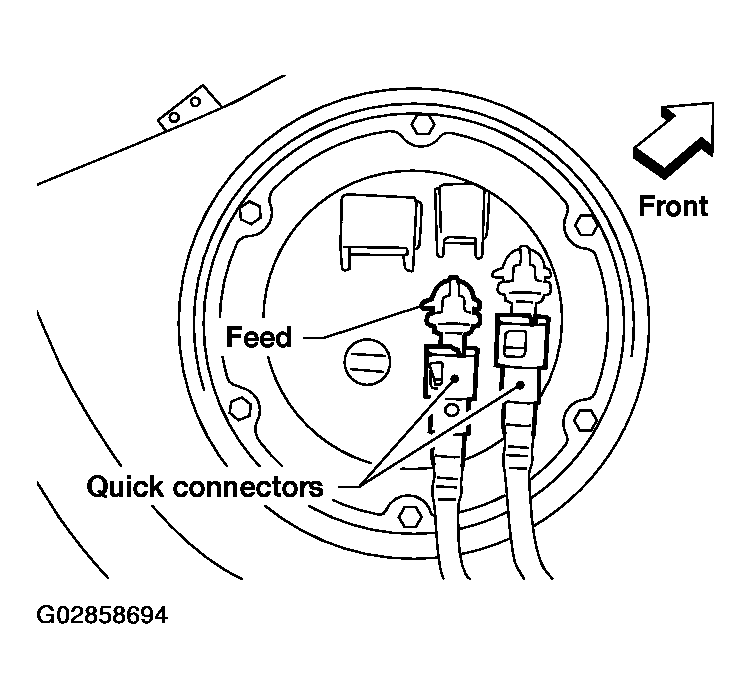

Fig 3: Removing Fuel Level Sensor Assembly

Installation procedure is the reverse order of removal.
- Install fuel level sensor as shown.
  CAUTION:
  - Tighten bolts to specified torque.

    Torque Specification: 2.0 - 2.5 N.m (0.20 - 0.26 kg-m, 17.4 - 22.6 in-lb)
- Always replace O-ring with a new one.
- Make sure the connectors are clean and undamaged.
- After installation, run engine and check for leaks at connections.
