Component Locations

COMPONENT LOCATIONS

Component

Location

Door Lock Actuator

Inside Appropriate Door

Door Lock Switch

On Appropriate Armrest

Horn Relay

⁽¹⁾ Located In Underhood Relay Block

Smart Entrance Control Unit (SECU)

⁽²⁾

⁽¹⁾	See Fig 1 .

⁽²⁾	See Fig 2 .

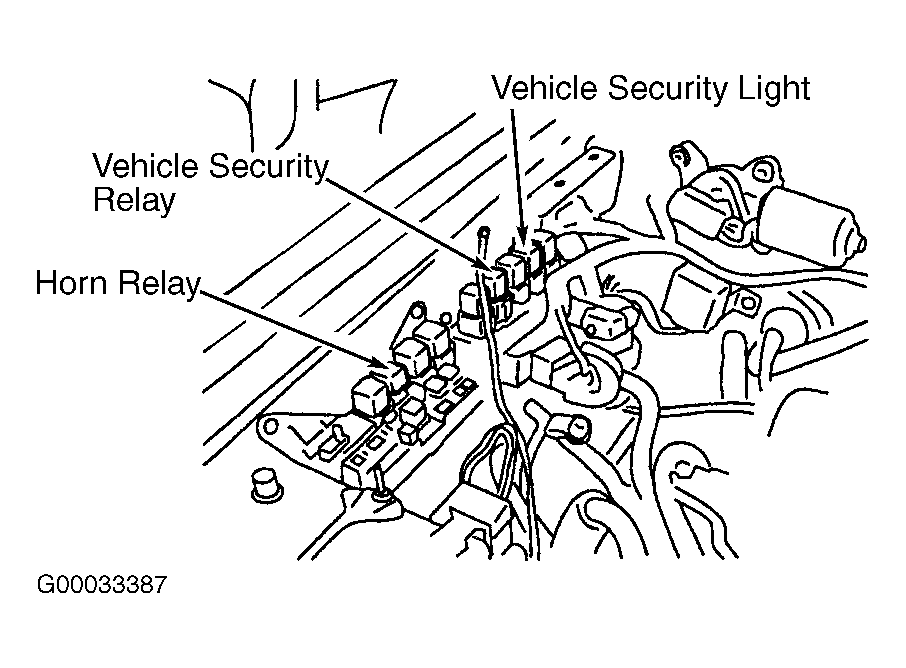

Fig 1: Locating Horn Relay

Courtesy of NISSAN MOTOR CO., U.S.A

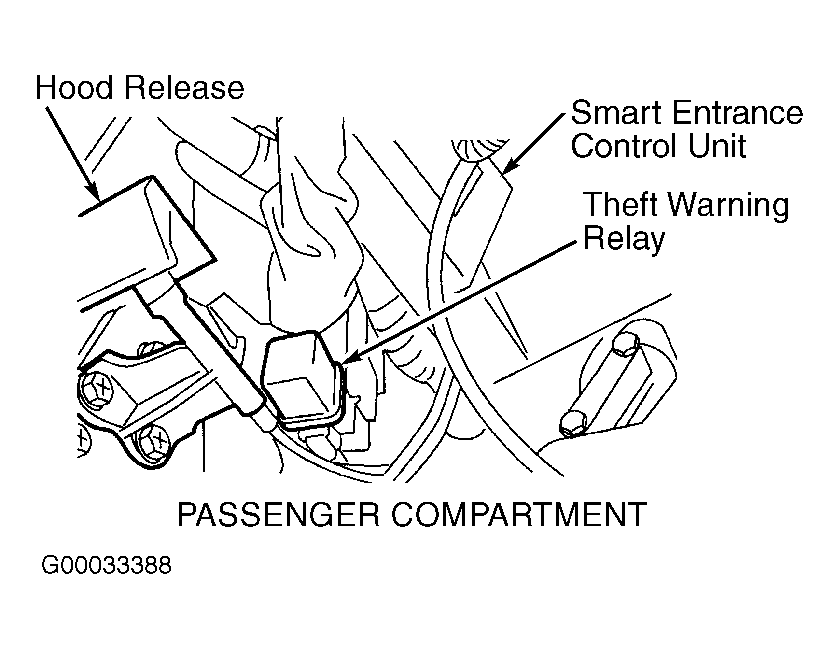

Fig 2: Locating Smart Entrance Control Unit (SECU)

Courtesy of NISSAN MOTOR CO., U.S.A.
