Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

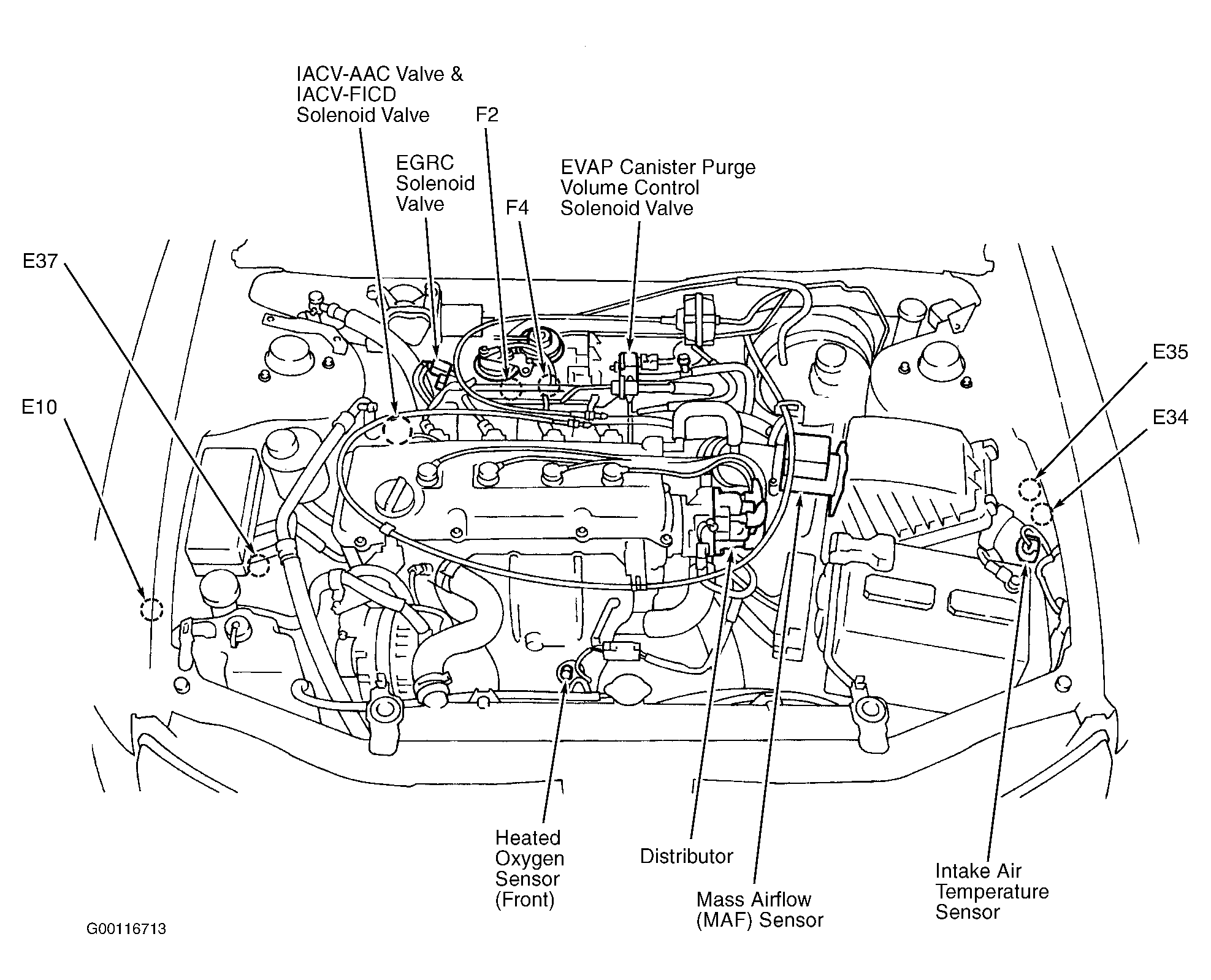

Fig 1: Engine Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Engine Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

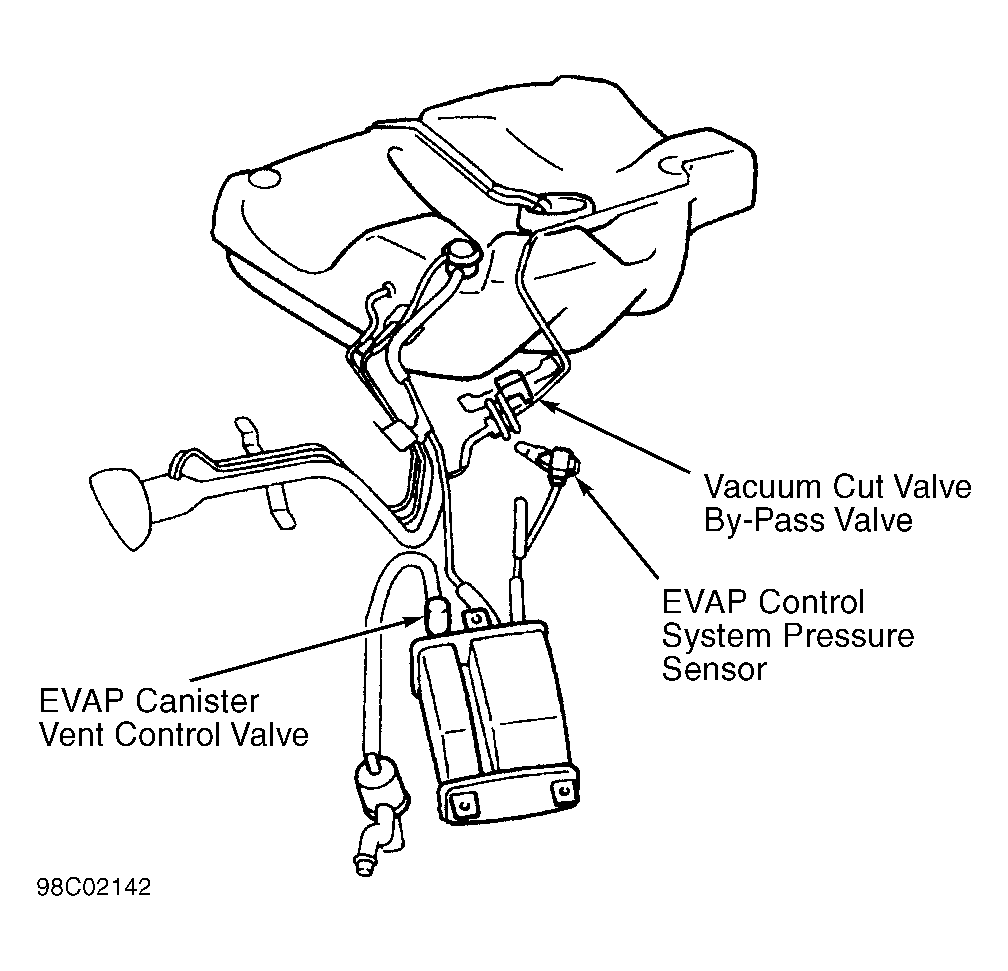

Fig 3: Fuel Tank & Emission Components

Courtesy of NISSAN MOTOR CO., U.S.A.

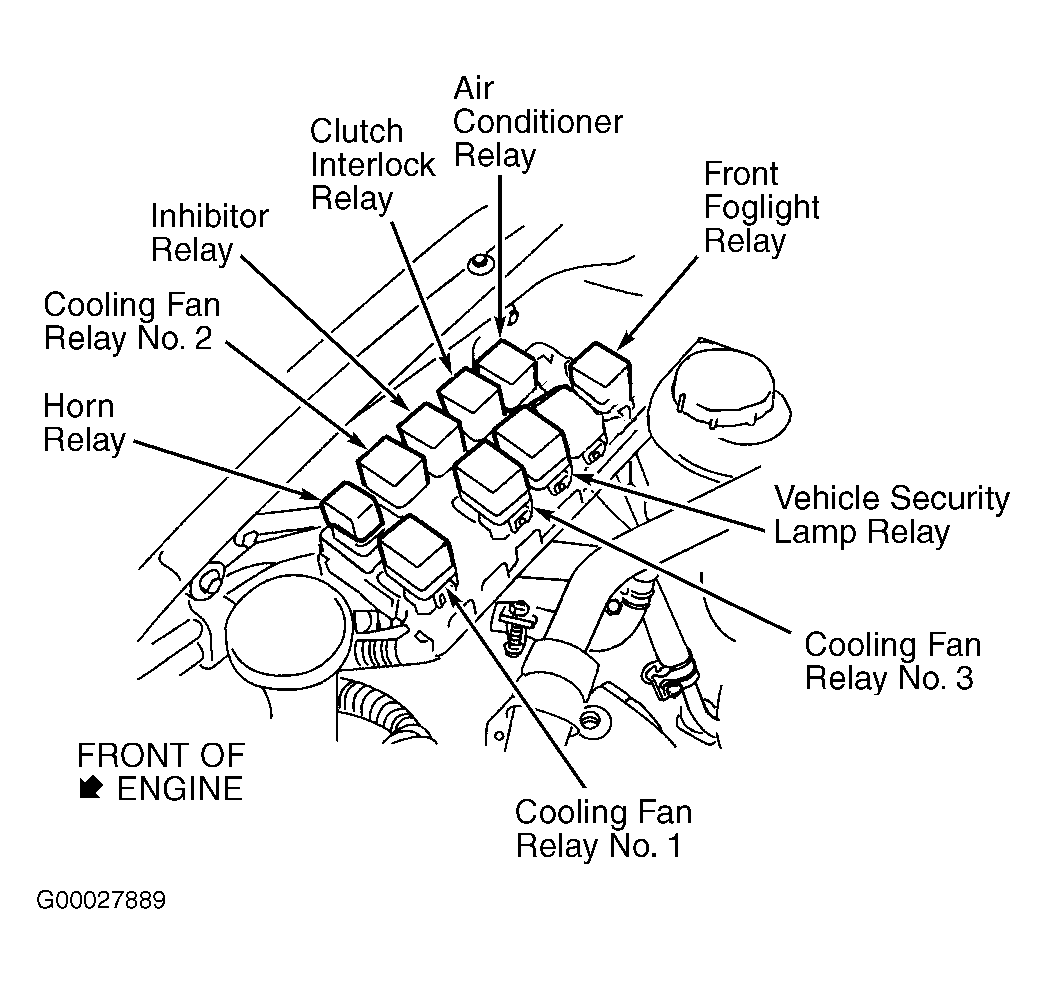

Fig 4: Relay Box

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Fuse & Fusible Link Box

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Passenger Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.
