Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Component Location
ABS Relay Unit On left side of engine compartment.

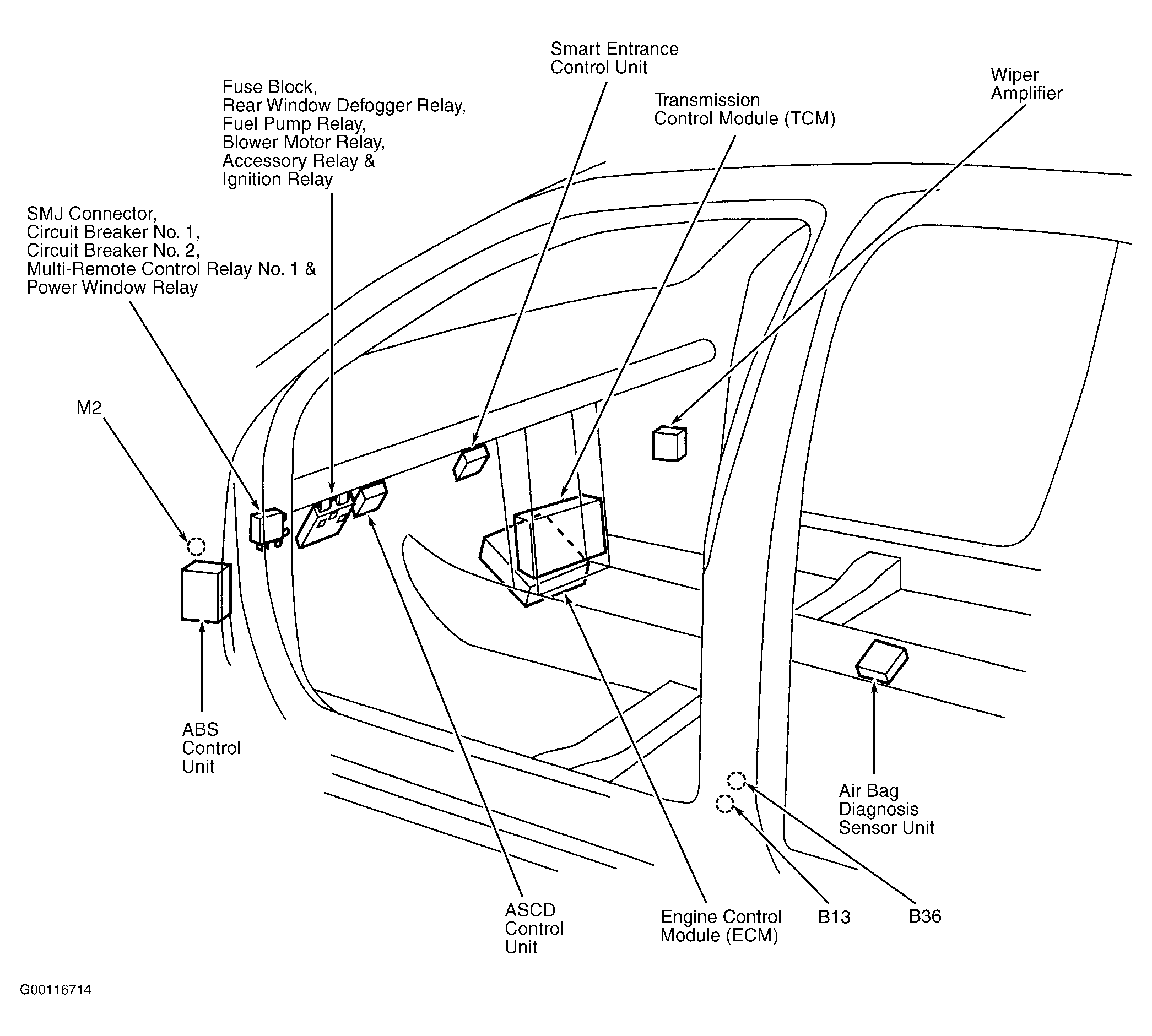

Circuit Breaker No. 1 Behind left side of dash. See Figure .
Circuit Breaker No. 2 Behind left side of dash. See Figure .
Fuse Block Under left side of dash. See Figure .

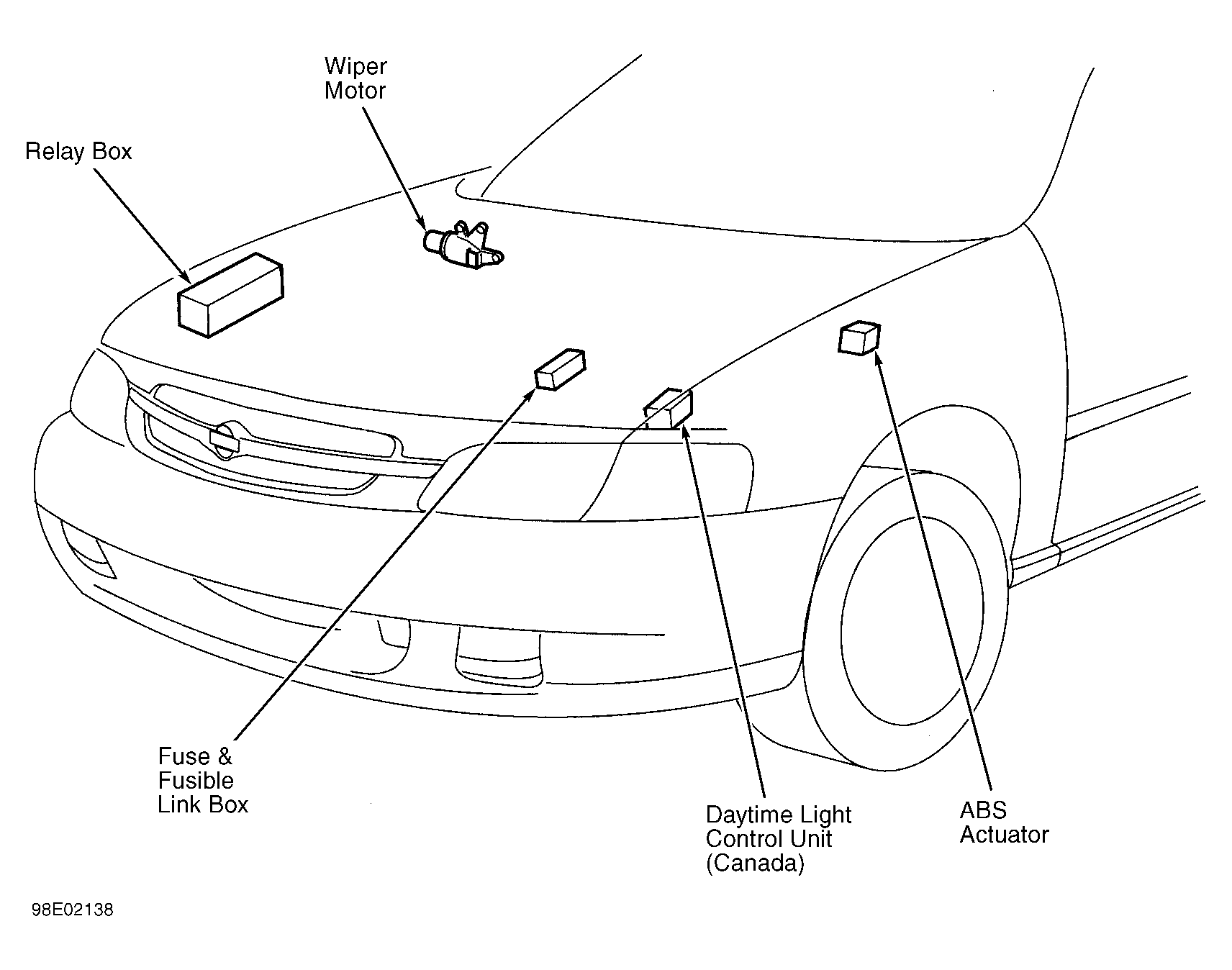

Fuse & Fusible Link Box On left side of engine compartment. See Figure .

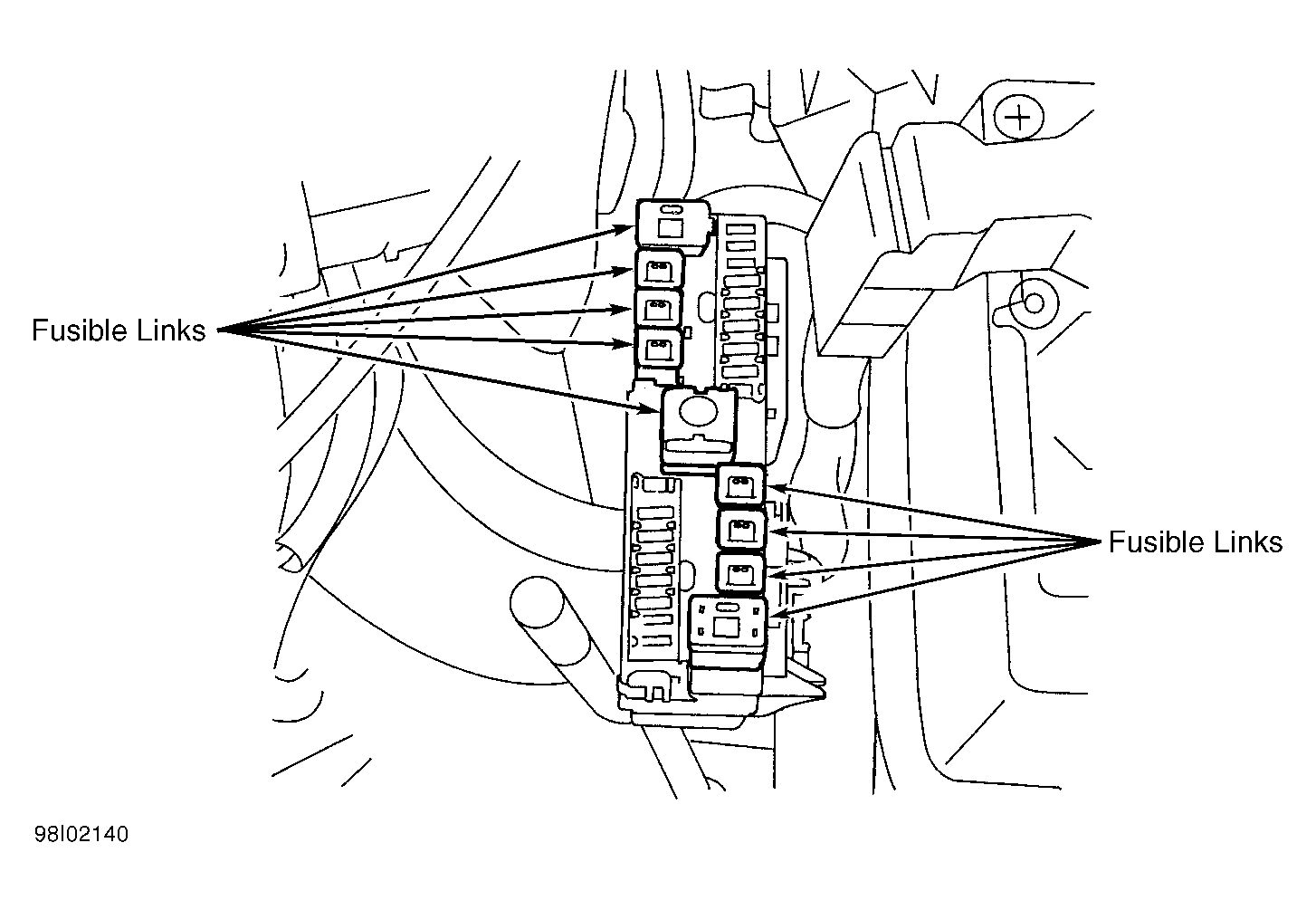

Fusible Links In fuse & fusible link box. See Figure .
Relay Box On right side of engine compartment. See Figure .
