Component Locations

COMPONENT LOCATIONS

Component

Location

Antenna

Inside Smart Entrance Control Unit (SECU)

Horn Relay

⁽¹⁾ In Underhood Relay Box

Multi-Remote Control Relay

⁽²⁾ On Junction Block, Under Left Side Of Instrument Panel

Smart Entrance Control Unit (SECU)

⁽³⁾ Under Left Side Of Instrument Panel

⁽¹⁾	See Fig 1 .

⁽²⁾	See Fig 2 .

⁽³⁾	See Fig 3 .

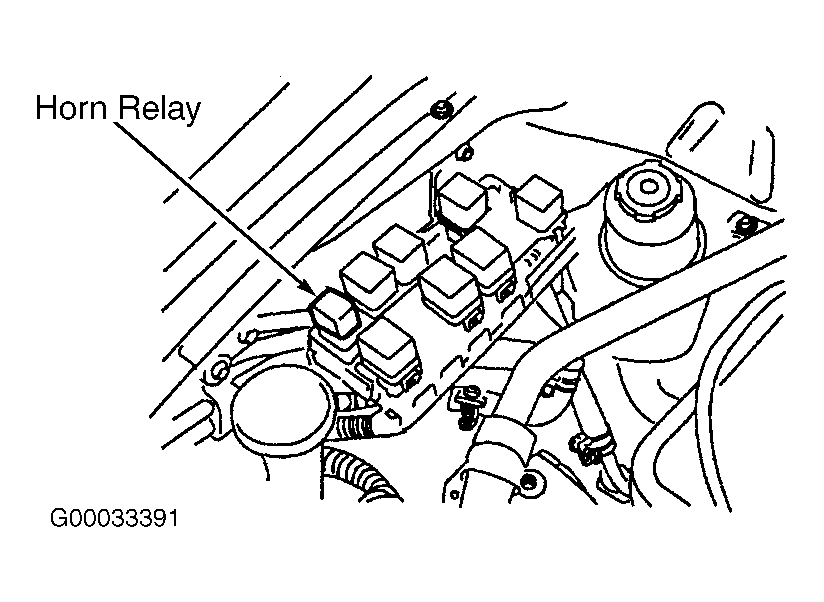

Fig 1: Locating Horn Relay

Courtesy of NISSAN MOTOR CO., U.S.A.

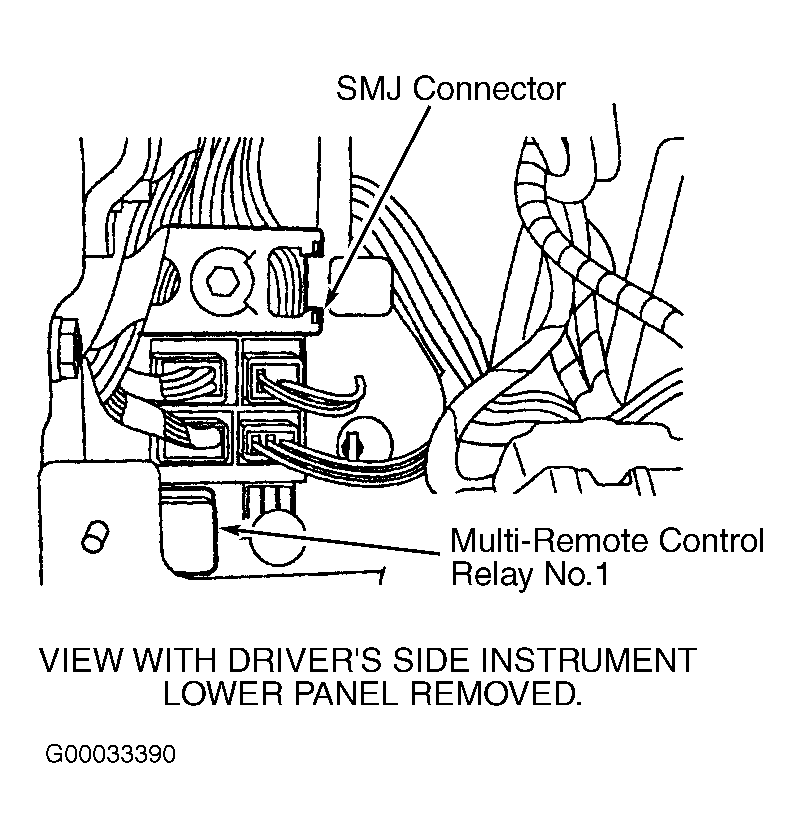

Fig 2: Locating Multi-Remote Control Relay

Courtesy of NISSAN MOTOR CO., U.S.A.

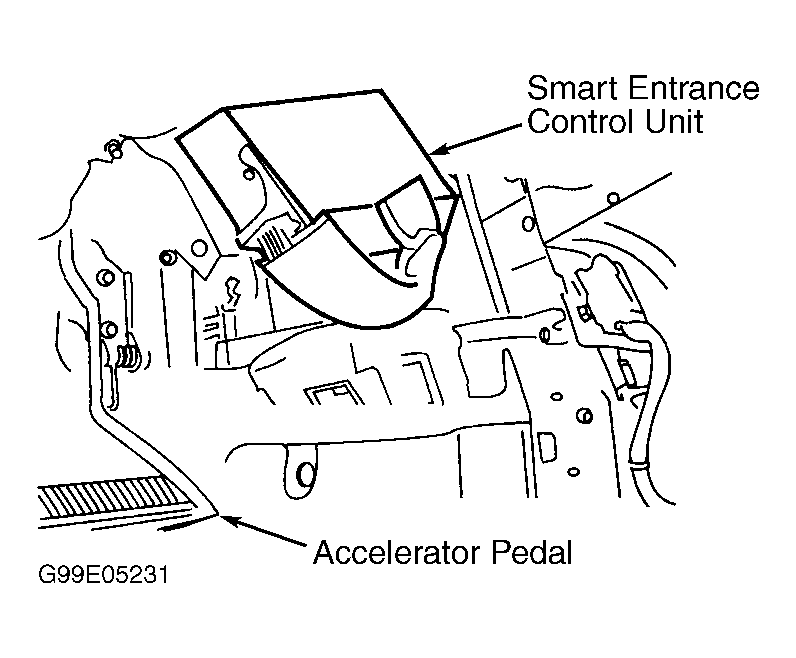

Fig 3: Locating Smart Entrance Control Unit

Courtesy of NISSAN MOTOR CO., U.S.A.
