Torque Specifications
WARNING: This page is about a different variant/trim than selected.
TORQUE SPECIFICATIONS
| Application |
Ft. Lbs. (N.m) |
| Axle Shaft Nut |
145-203 (197-275) |
| Camshaft Bearing Cap Bolt |
|
| Camshaft Sprocket Bolt |
101-116 (137-157) |
| Connecting Rod Nut |
| Step 1 |
10-12 (14-16) |
| Step 2 |
60-65 Degrees Or 28-33 (38-45) |
| Crankshaft Pulley Bolt |
105-112 (142-152) |
| Crossmember Bolt |
33-40 (45-54) |
| Cylinder Head-To-Cylinder Block Bolt |
| Step 1 |
29 (39) |
| Step 2 |
58 (79) |
| Step 3 |
Loosen All Bolts |
| Step 4 |
25-33 (34-45) |
| Step 5 |
90-95 Degrees |
| Step 6 |
90-95 Degrees |
| Exhaust Manifold Nut |
27-35 (37-47) |
| Flywheel/Drive Plate Bolt |
61-69 (83-94) |
| Front Engine Mount Through-Bolt |
33-40 (45-54) |
| Front Engine Mount-To-Front Cover Bolt |
33-40 (45-54) |

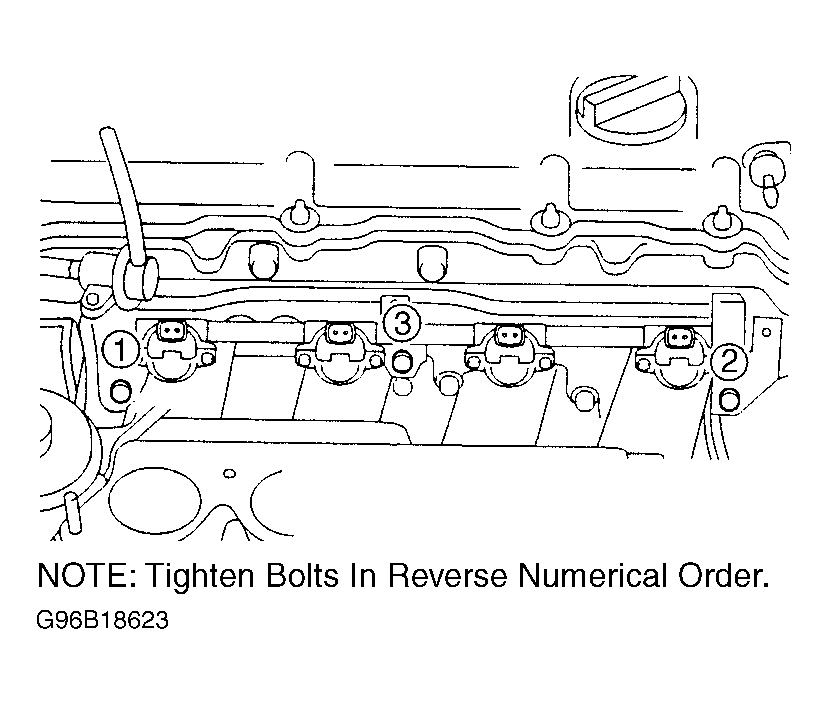

| Fuel Rail Bolt |
|

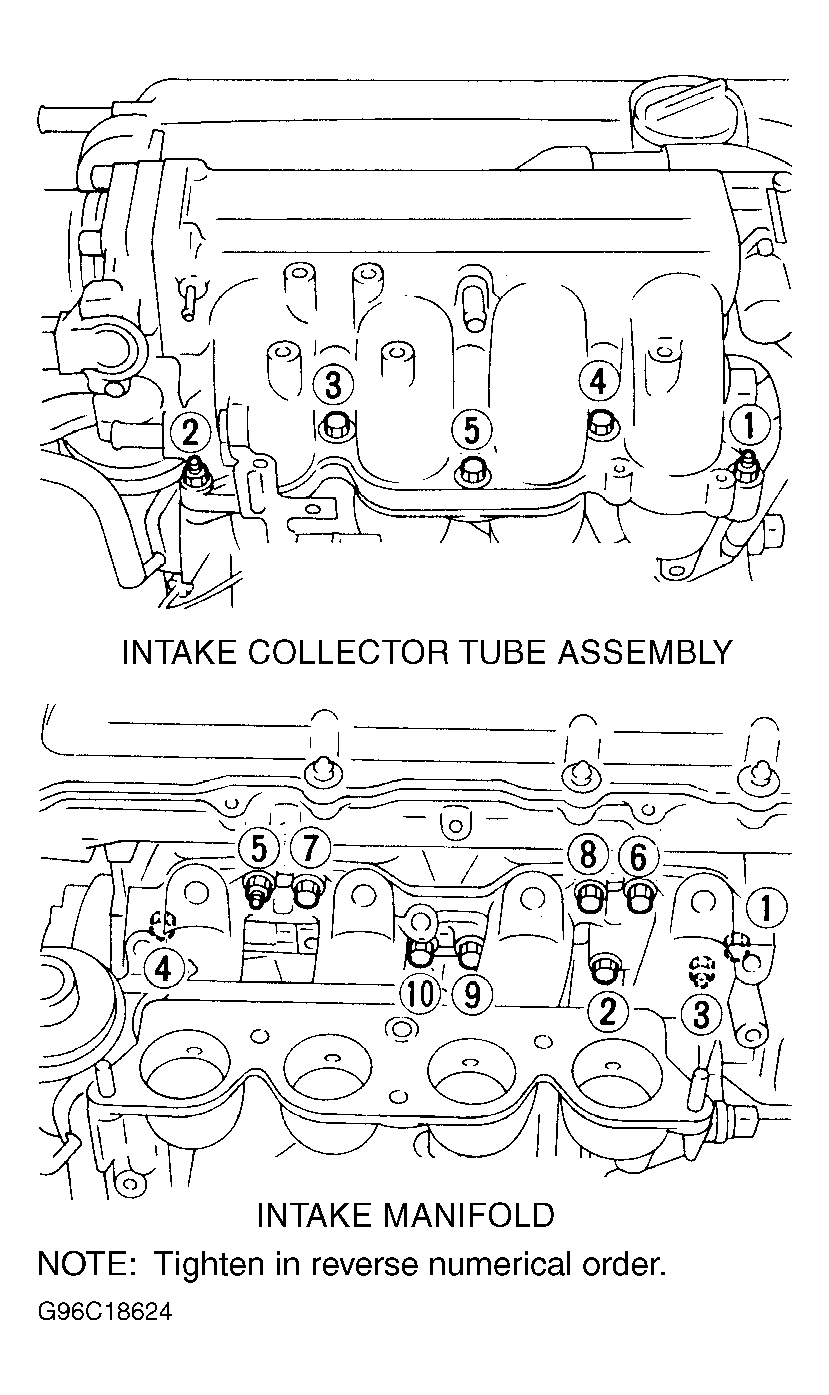

| Intake Manifold Bolt |
13-15 (18-20) |
| Intake Manifold Collector Bolt/Nut |
13-15 (18-20) |
| Intake Manifold Support Brace Bolt |
15-20 (20-27) |
| Knock Sensor Bolt |
15-20 (20-27) |
| Main Bearing Cap Bolt |
| Step 1 |
20-24 (27-33) |
| Step 2 |
75-80 Degrees |
| Step 3 |
Loosen All Bolts |
| Step 4 |
24-28 (33-38) |
| Step 5 |
45-50 Degrees |
| Oil Filter Bracket Bolt |
12-14 (16-19) |
| Oil Pan Drain Plug |
22-29 (30-39) |
| Oil Pressure Regulator Valve Plug |
29-51 (39-69) |
| Oil Pump Pick-Up Tube Bolt |
12-14 (16-19) |
| Oxygen Sensor |
30-37 (41-50) |
| Power Steering Pump Bracket Bolt |
33-44 (45-60) |
| Right (Timing Chain Side) Engine Mount Through-Bolt |
33-40 (45-54) |
| Spark Plug |
14-22 (19-30) |
| Steering Knuckle-To-Strut Bolt |
84-98 (114-133) |
| Throttle Body Bolt |
| Step 1 |
|
| Step 2 |
13-15 (18-20) |
| Tie Rod-To-Steering Knuckle Nut |
22-29 (30-39) |
| Timing Chain Guide Bolt |
| Lower Guide |
10-14 (14-19) |
| Upper Guide |
12-14 (16-19) |
| Torque Converter-To-Drive Plate Bolt |
33-43 (45-58) |
| Transaxle Mount Through-Bolt |
33-40 (45-54) |
| Upper Oil Pan Bolt |
|
| Upper Transaxle-To-Engine Bolts |
51-58 (69-79) |

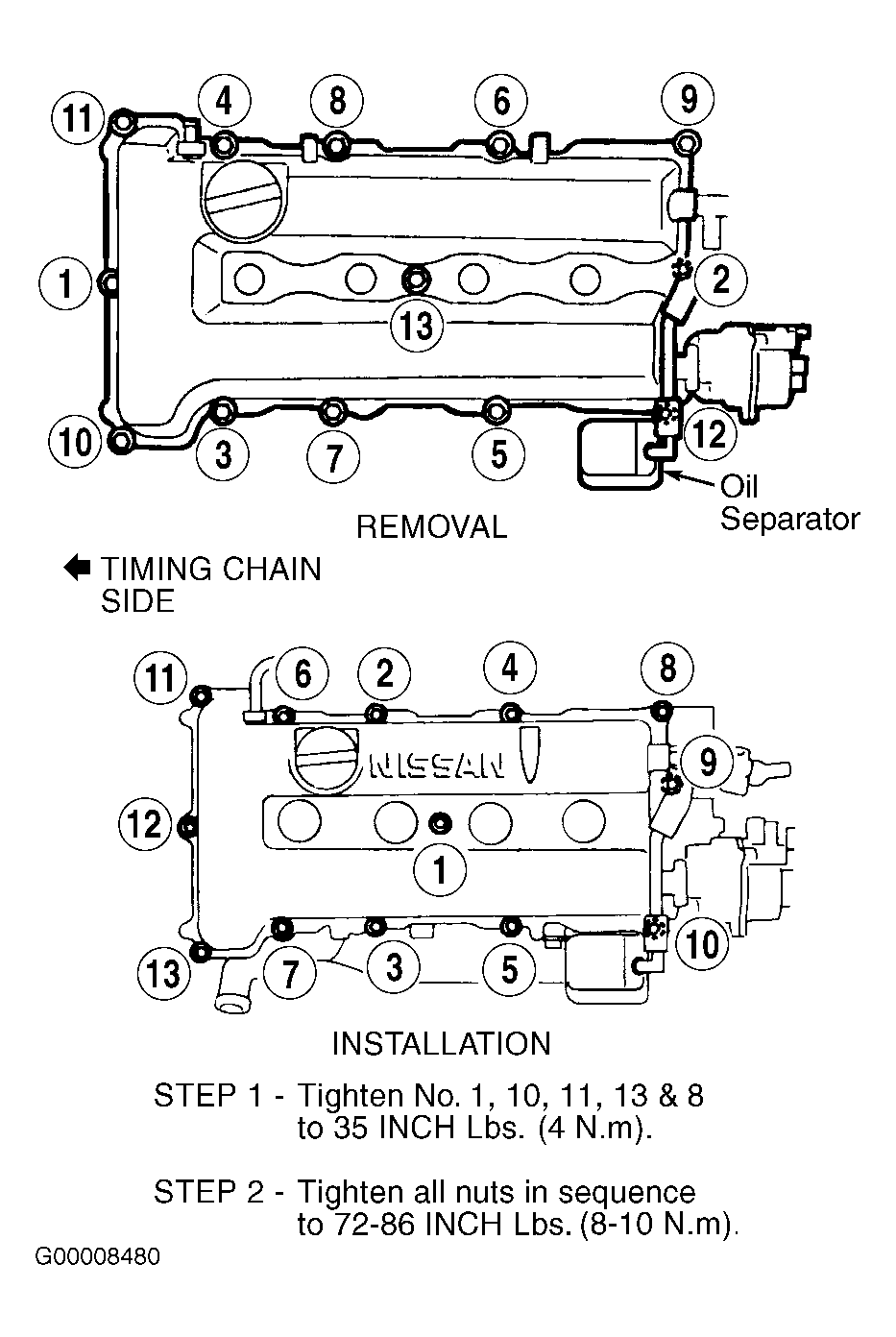

| Valve Cover Nut |
|
| Water Pump Bolt |
12-15 (16-20) |
| Wheel Lug Nut |
72-87 (98-118) |
| INCH Lbs. (N.m) |
| Air Relief Plug |
73 (8) |
| Baffle Plate Bolt |
56-66 (6-7) |
| Crankshaft Rear Seal Housing Bolt |
56-73 (6-8) |
| Cylinder Head-To-Front Cover Bolt |
80-104 (9-12) |
| Front Cover Bolt |
56-66 (6-7) |
| Fuel Injector Clamp Bolt |
26-34 (3-4) |
| Lower Oil Pan Bolt |
56-66 (6-7) |
| Oil Pump Cover Bolt |
| 1999 |
56-66 (6-7) |
| 2000 |
70-113 (8-13) |
| Oil Pump Cover Screw |
| 1999 |
34-44 (4-5) |
| 2000 |
70-96 (8-11) |
| Rear Cover Plate Bolt |
56-66 (6-7) |
| Timing Chain Tensioner Bolt/Nut |
56-73 (6-8) |
| Water Pump Pulley Bolt |
56-73 (6-8) |
