Anti-Theft System: Description

Anti-theft system is controlled by Smart Entrance Control Unit (SECU), with inputs from door switches, door key cylinder switches, hood switch and back door key cylinder switch. See Fig 1 and Fig 2 .

Fig 1: Identifying Theft Warning Relays

Courtesy of NISSAN MOTOR CO., U.S.A.

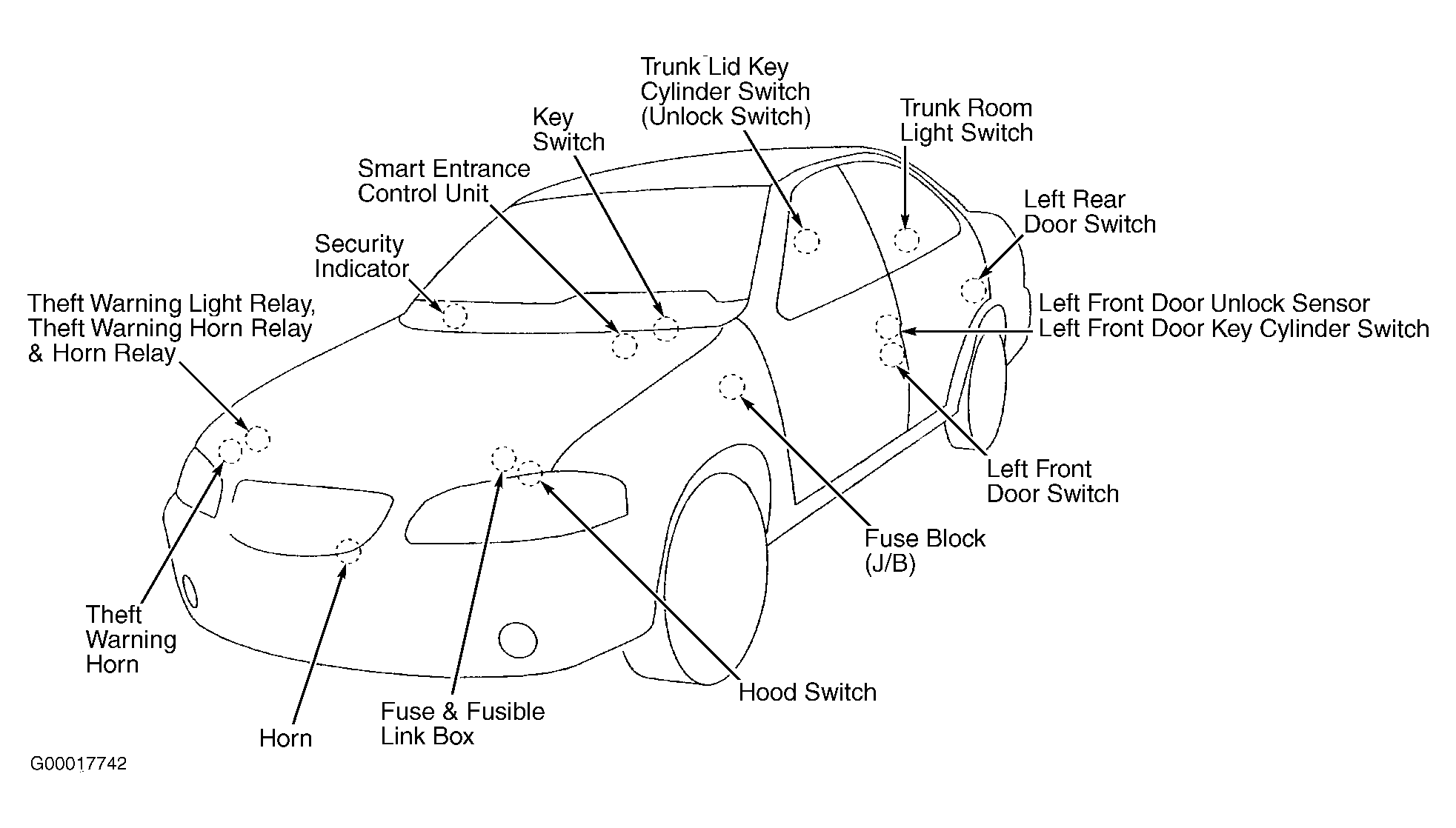

Fig 2: Locating Anti-Theft System Components

Courtesy of NISSAN MOTOR CO., U.S.A.
