Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| A/C Control Unit (Front) | Behind center of dash. |
| A/C Control Unit (Rear) | Behind driver's seat, behind side trim panel. |

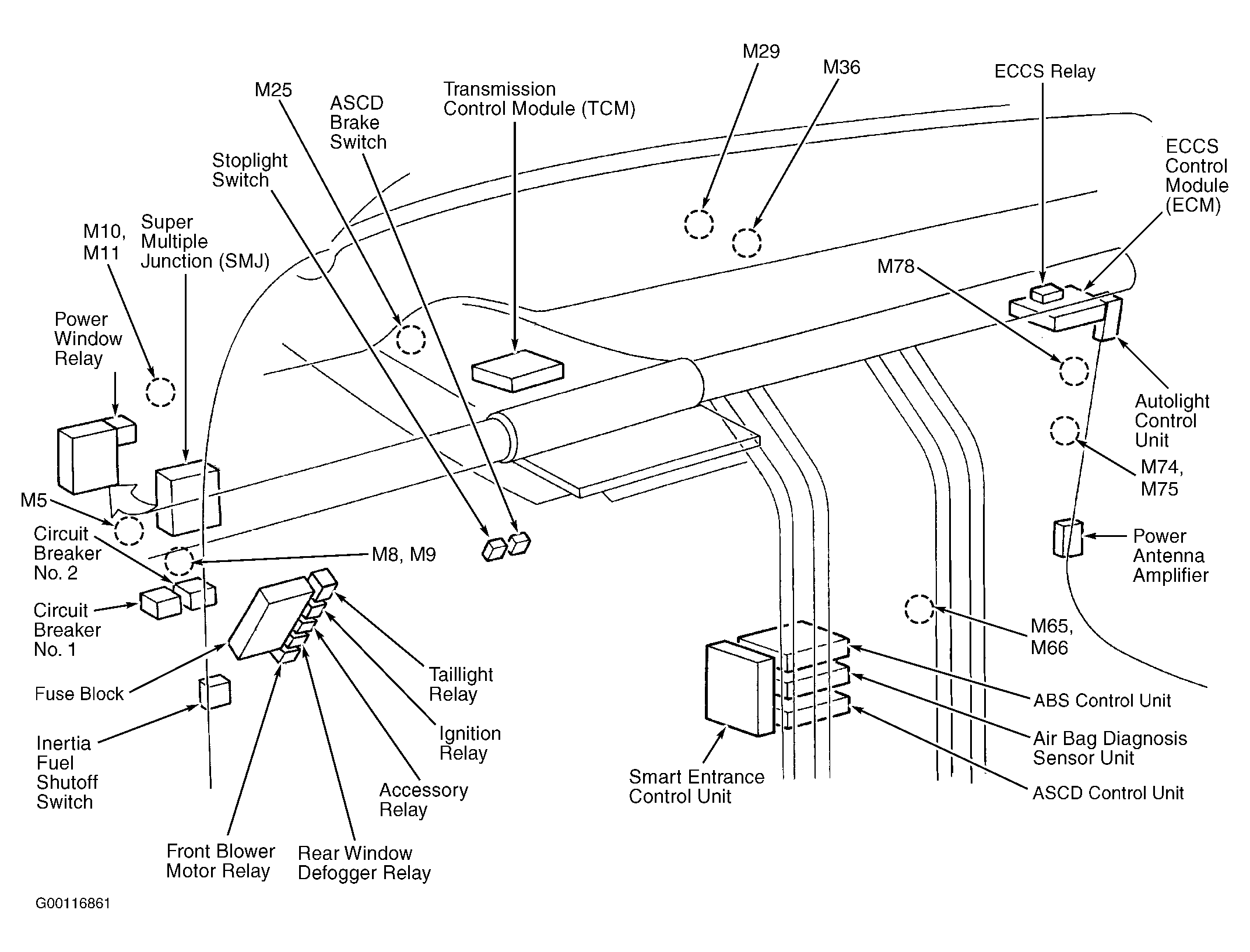

| ABS Control Unit | Behind center console. See Figure . |
| Air Bag Diagnosis Sensor Unit | Behind center of dash, at front of center console. See Figure . |
| ASCD Control Unit | Behind center of dash. See Figure . |
| Autolight Control Unit | Behind right side of dash. See Figure . |

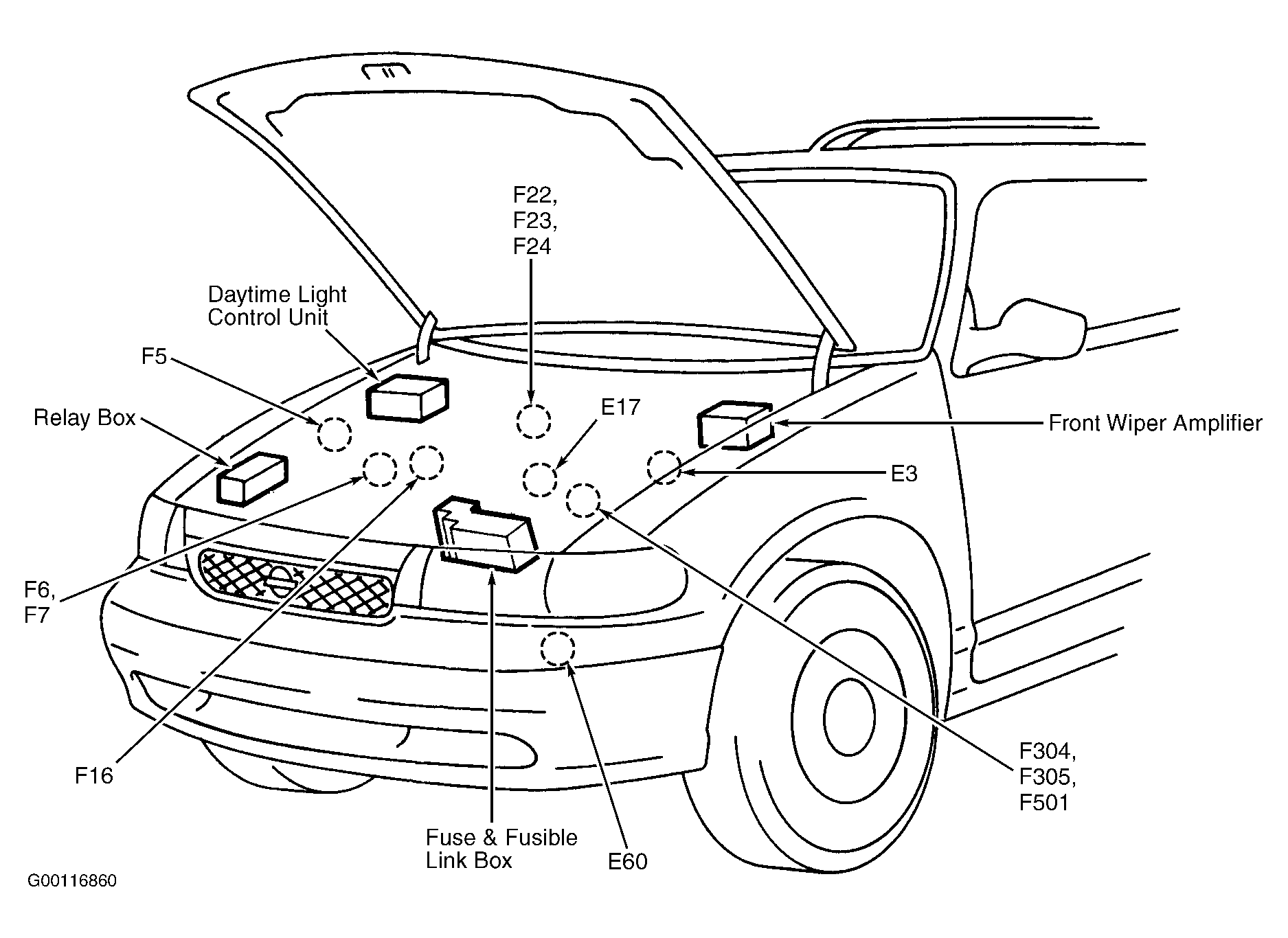

| Daytime Light Control Unit | Right rear corner of engine compartment. See Figure . |
| EATC Unit | Behind center of dash. |
| ECCS Control Module (ECM) | Behind right side of dash. See Figure . |
| Front Blower Speed Control Unit (EATC) | Behind right side of dash, near front blower motor. |
| Front Wiper Amplifier | Left side of firewall. See Figure . |
| Power Antenna Amplifier | Behind right kick panel. See Figure . |
| Rear Radio Remote Control Unit | Behind driver's seat, behind side trim panel. |

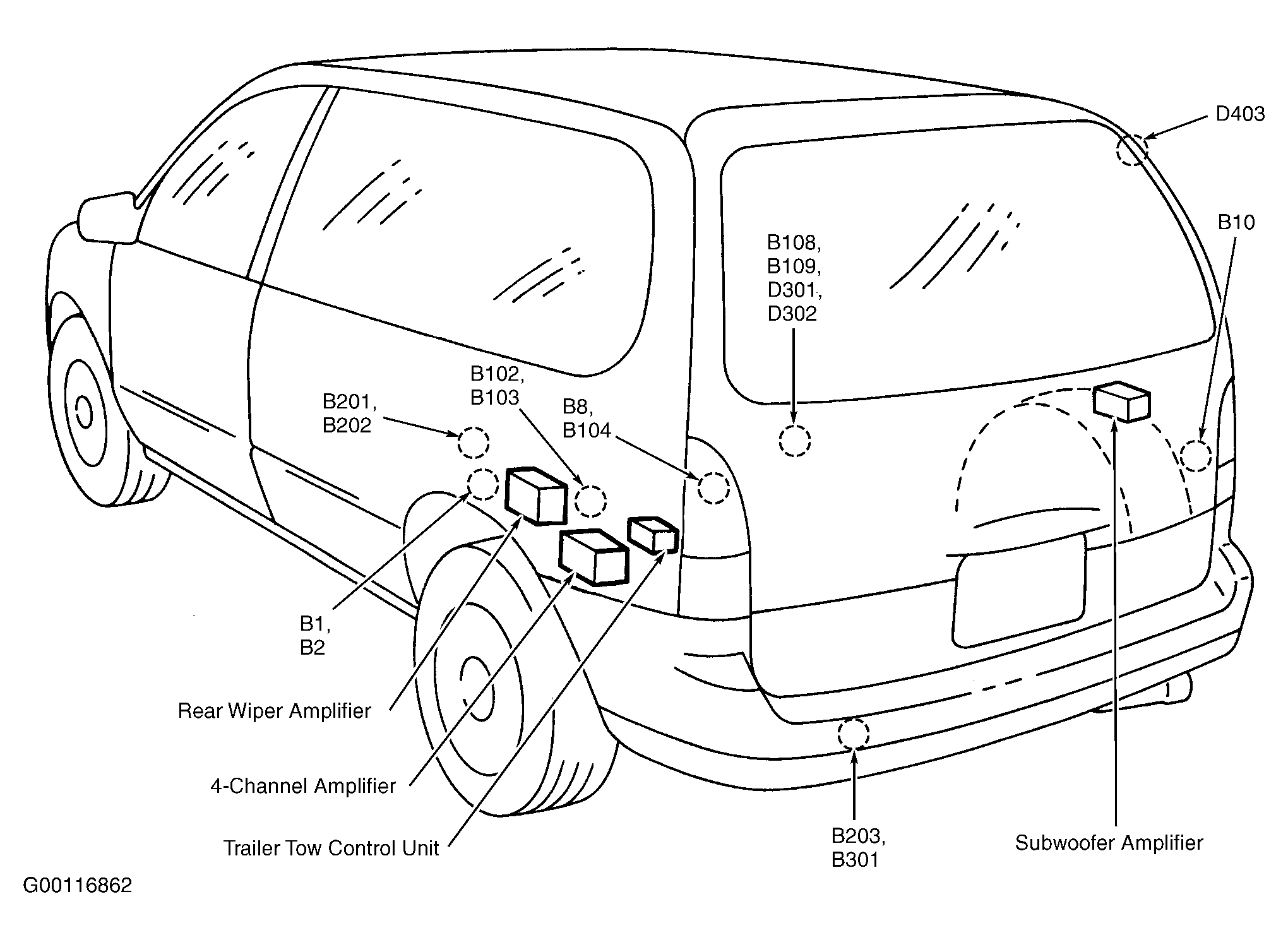

| Rear Wiper Amplifier | Behind trim panel, above left rear wheel. See Figure . |
| Sliding Door Control Unit | In sliding door. |
| Smart Entrance Control Unit | Behind center of dash. See Figure . |
| Subwoofer Amplifier | Behind trim panel, above right rear wheel. See Figure . |
| Trailer Tow Control Unit | Behind trim panel, above left rear wheel. See Figure . |
| Transmission Control Module (TCM) | Behind dash, right of steering column. See Figure . |
| 4-Channel Amplifier | Behind trim panel, behind left rear wheel. See Figure . |
