Antenna Check

Check Antenna Feeder Cable

Remove instrument cluster lid and combination meter. Remove center console left-side finisher, then center console. Disconnect antenna feeder cable connector from antenna and Smart Entrance Control Unit (SECU). Using DVOM, check antenna feeder cable for continuity. If continuity is present, go to next step. If continuity is not present, replace antenna feeder cable.

Check Antenna

With combination meter removed, remove 2 clips from instrument panel. Visually check antenna. See Fig 1 . Replace if necessary. If no problem is found, antenna is okay.

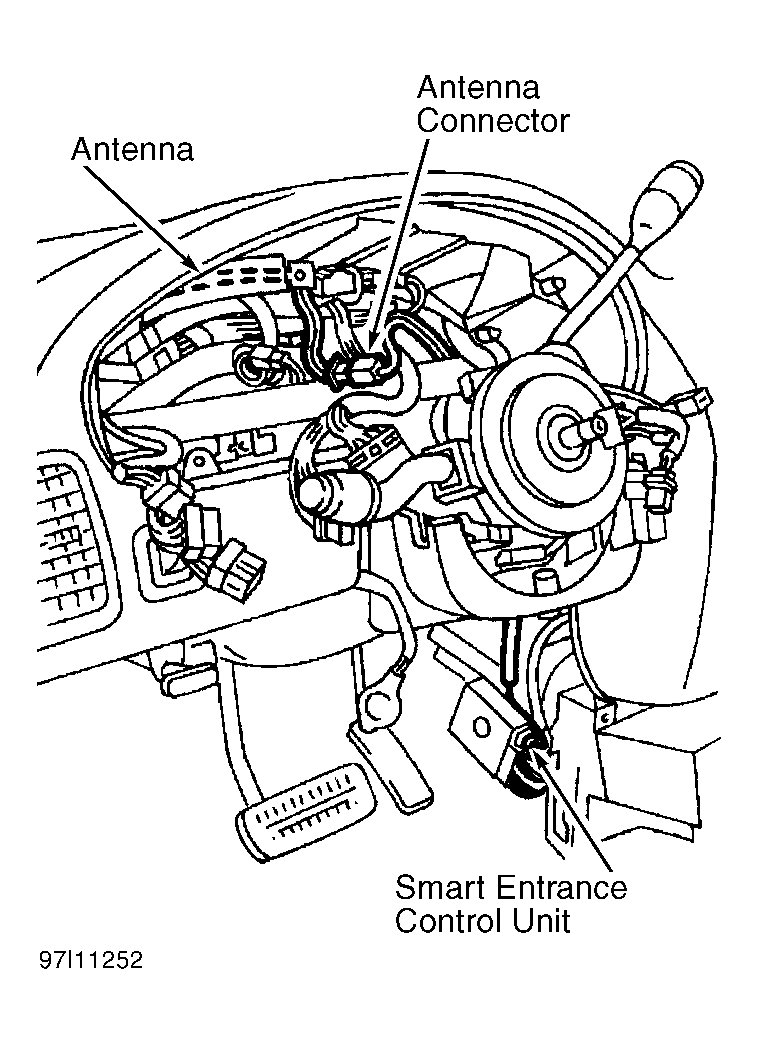

Fig 1: Locating Multi-Remote Control System Antenna

Courtesy of NISSAN MOTOR CO., U.S.A.
