Nissan-Datsun
>>
1998
>>
Maxima GLE, RE4F04V
>>
Repair and Diagnosis
>>
Maintenance
>>
Procedures
>>
Maintenance Information
>>
Service Point Locations
Service Point Locations

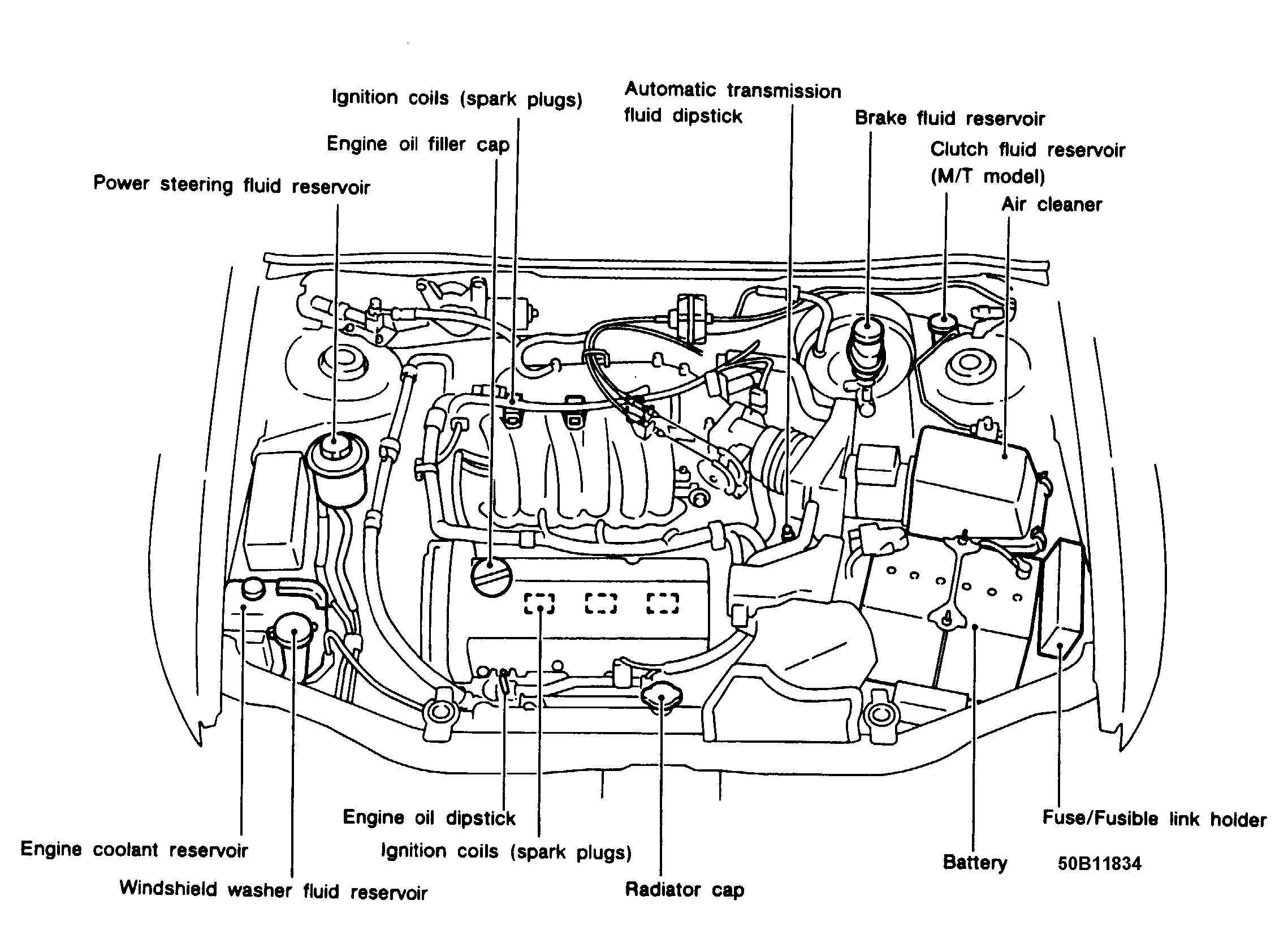

Fig 1: Engine Service Point Locations
Courtesy of NISSAN MOTOR CO., U.S.A.

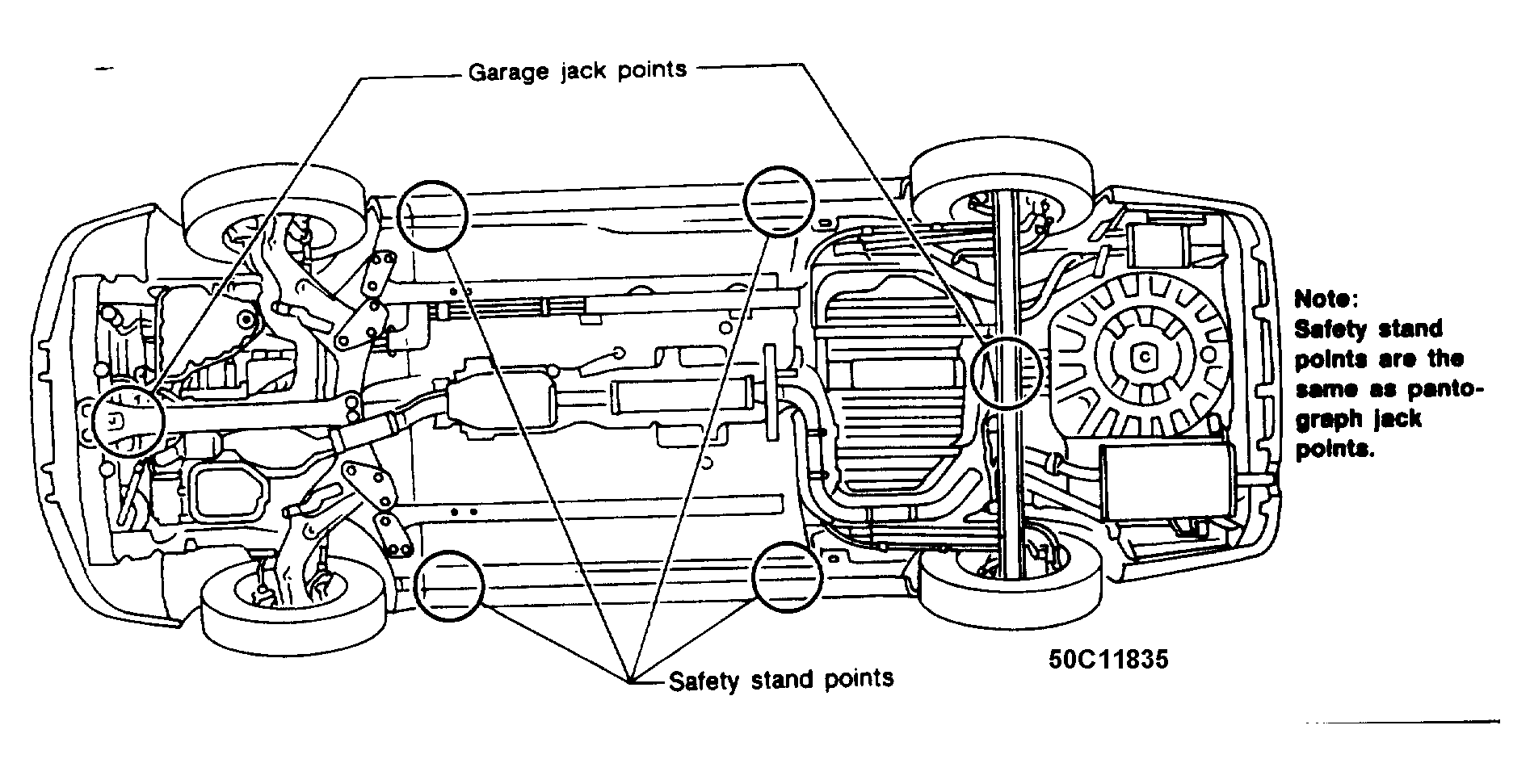

Fig 2: Lift Point Locations
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
