Electrical Component Locator: Grounds
GROUNDS
| Component | Component Location |
|---|---|

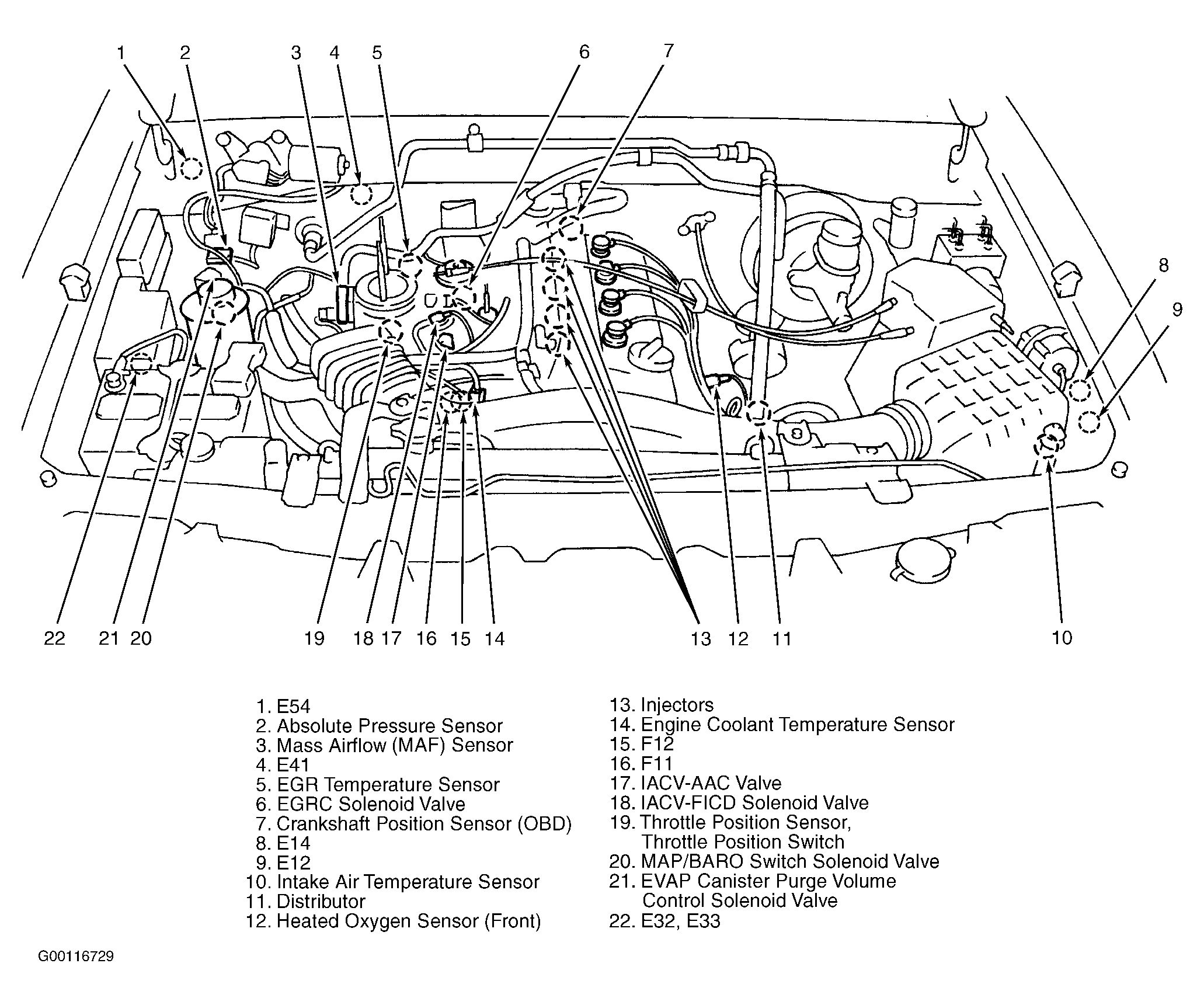

| E12 | Left front corner of engine compartment. See Figure . |
| E14 | Left front corner of engine compartment. See Figure . |
| E54 | Rear right corner of engine compartment. See Figure . |
| E203 | Right side of engine compartment. |
| E222 | On battery ground cable. |
| E223 | On intake manifold. |
| F11 | Near engine coolant temperature sensor. See Figure . |
| F12 | Near engine coolant temperature sensor. See Figure . |
| M14 | On left "A" pillar. See Figure . |
| M22 | Under drivers seat. |
| M68 | Right "A" pillar. |
