Electrical Component Locator: Motors

MOTORS

Component Component Location

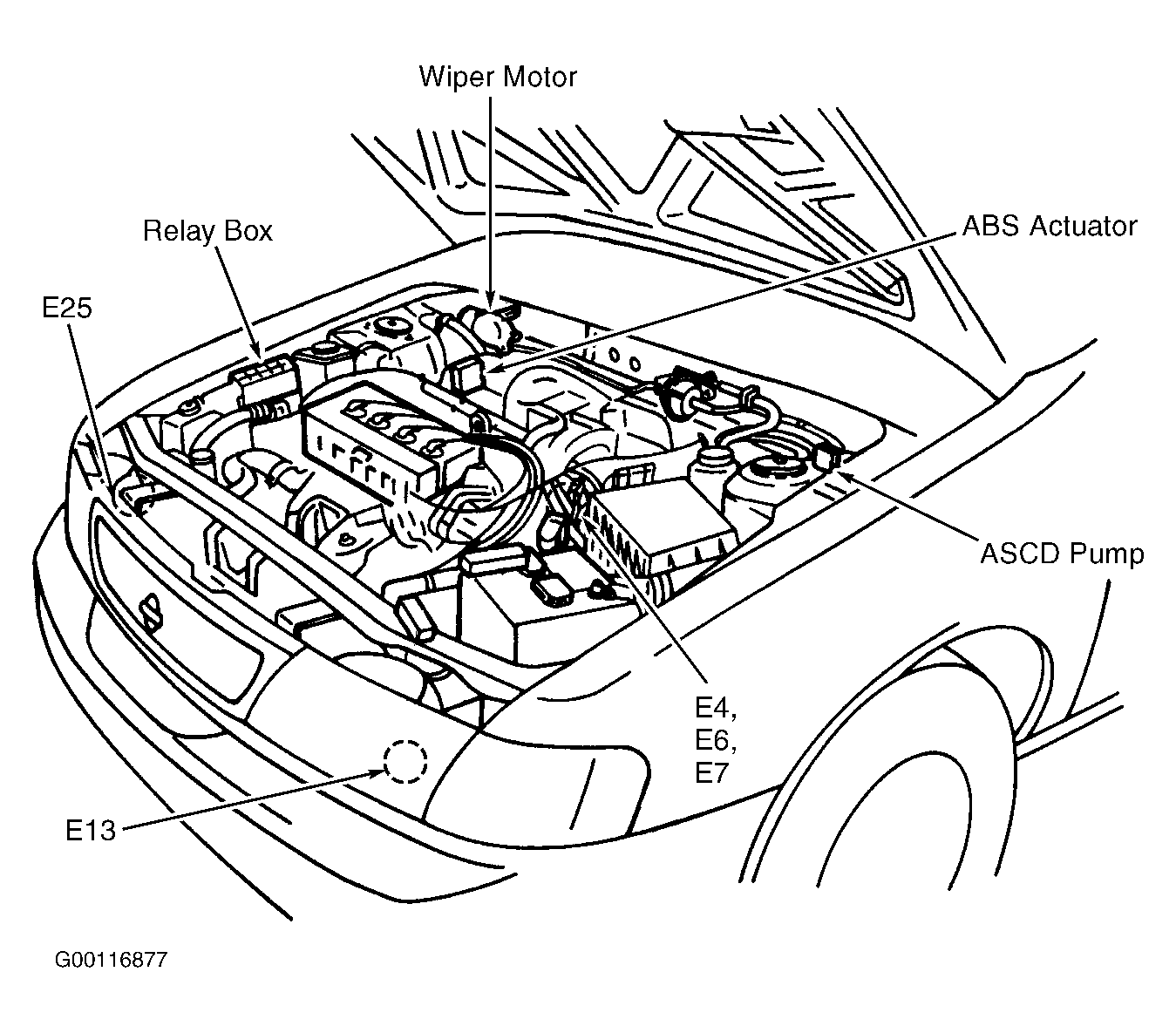

ABS Actuator Right rear corner of engine compartment. See Figure .
ASCD Pump Left rear corner of engine compartment. See Figure .
Blower Motor Below right side of dash.
Front Washer Motor At right front of engine compartment, on washer fluid reservoir.
Fuel Pump In fuel tank.
Intake Door Motor Behind right side of dash, on air intake unit.
Sun Roof Motor Assembly At front of sun roof opening.
Wiper Motor Right side of firewall. See Figure .
