System Tests

WIRE COLOR ABBREVIATIONS ⁽¹⁾

Abbreviation

Color

B

Black

G

Green

L

Blue

P

Pink

R

Red

Y

Yellow

LG

Light Green

SB

Sky Blue

G/B

Green/Black

G/OR

Green/Orange

G/R

Green/Red

G/W

Green/White

G/Y

Green/Yellow

L/OR

Blue/Orange

P/B

Pink/Black

R/B

Red/Black

R/G

Red/Green

R/W

Red/White

W/L

White/Blue

Y/B

Yellow/Black

LG/R

Light Green/Red

⁽¹⁾	Listed wire color abbreviations are used in the following diagnostic checks.

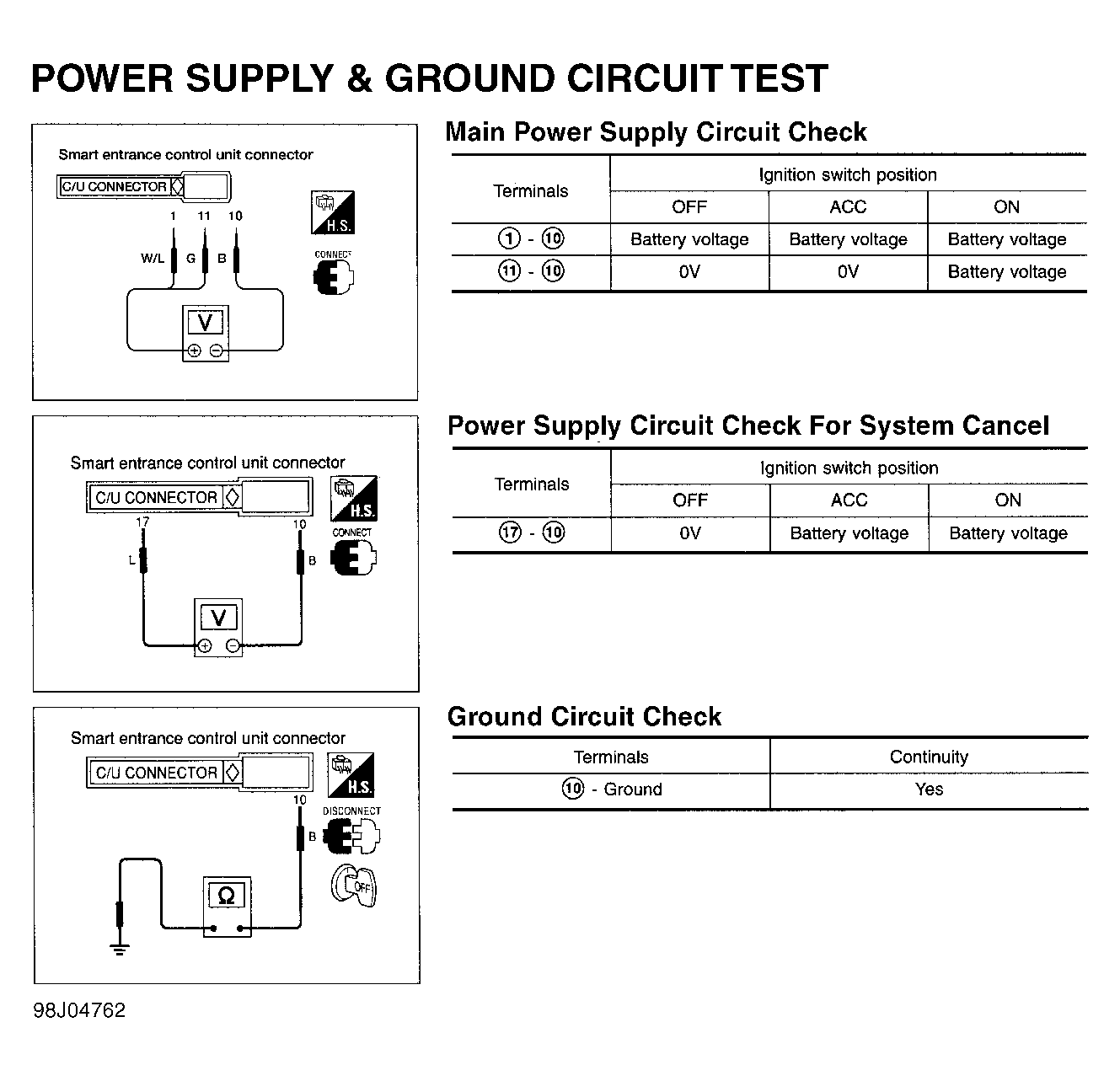

Fig 1: Power Supply & Ground Circuit Check

G98J04762

Courtesy of NISSAN MOTOR CO., U.S.A.

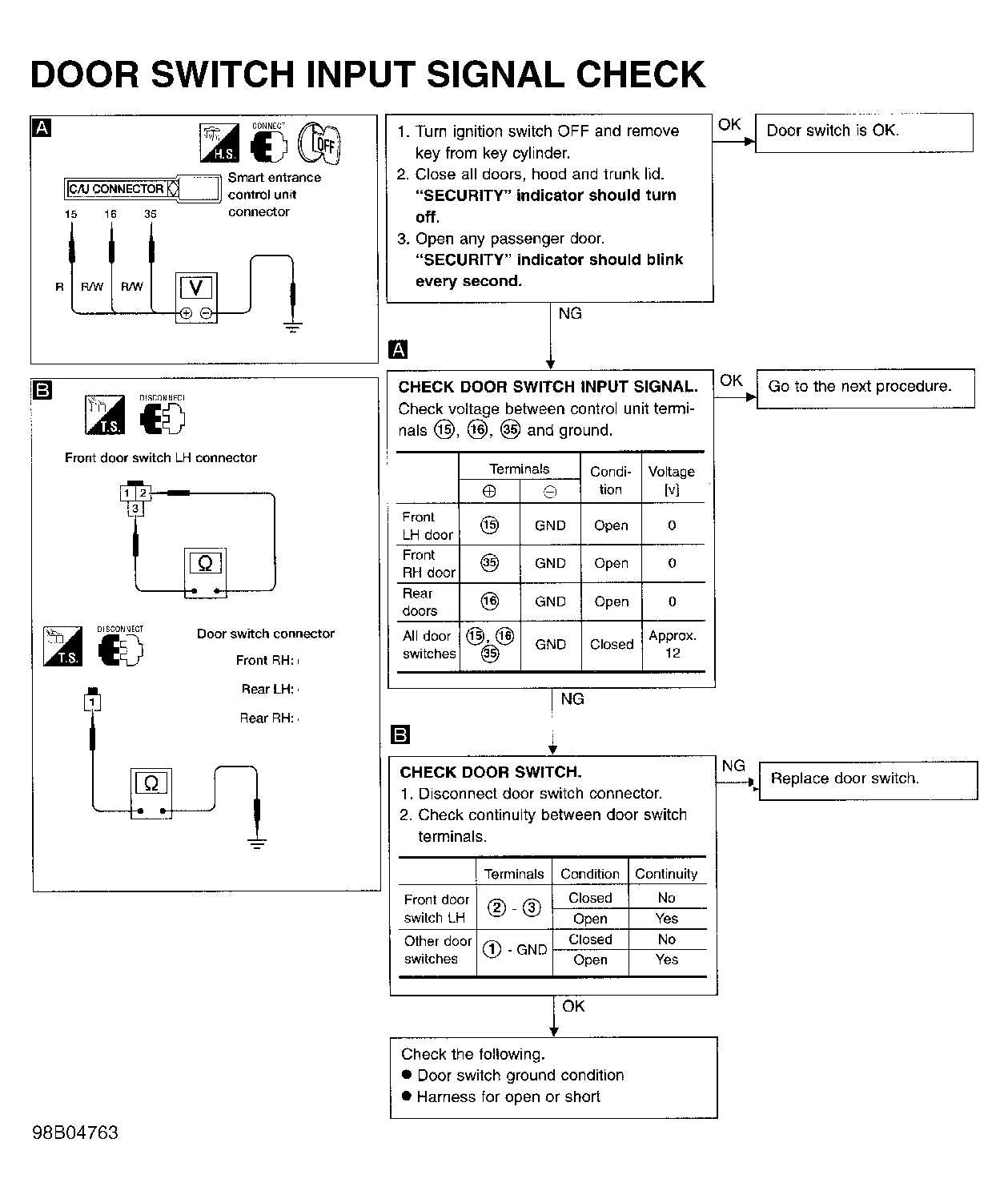

Fig 2: Door Switch Input Signal Check

G98B04763

Courtesy of NISSAN MOTOR CO., U.S.A.

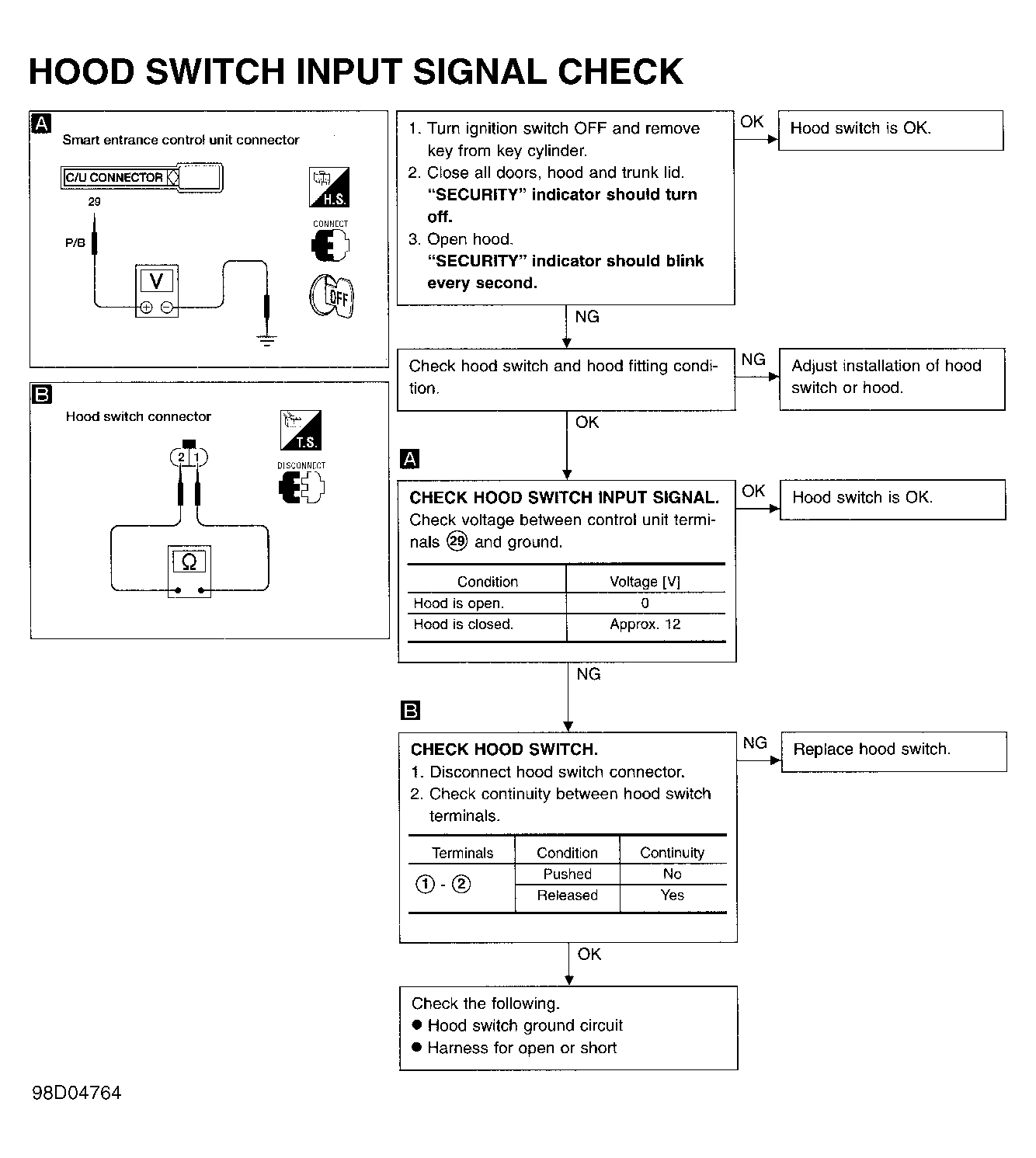

Fig 3: Hood Switch Input Signal Check

G98D04764

Courtesy of NISSAN MOTOR CO., U.S.A.

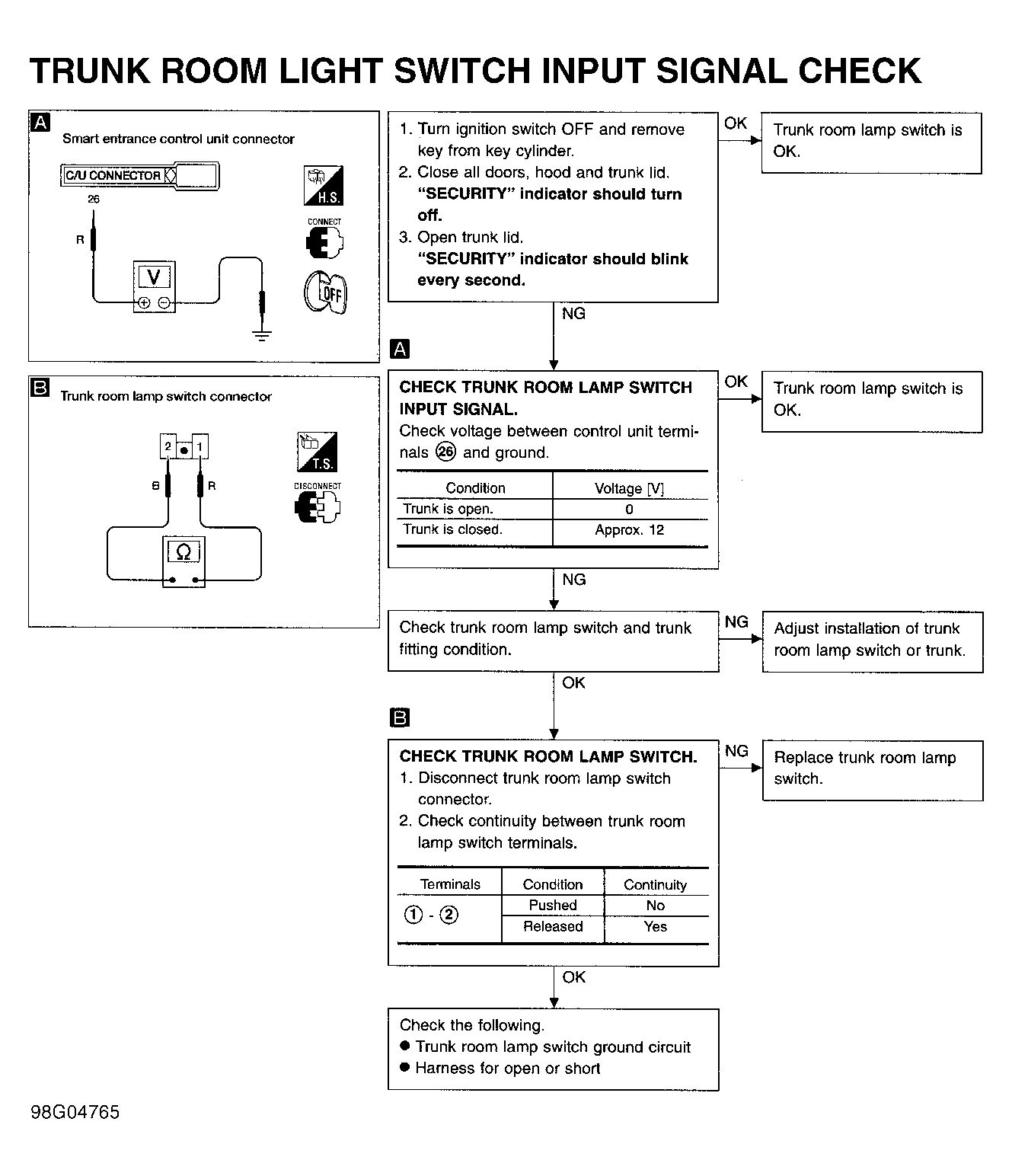

Fig 4: Trunk Room Light Switch Input Signal Check

G98G04765

Courtesy of NISSAN MOTOR CO., U.S.A.

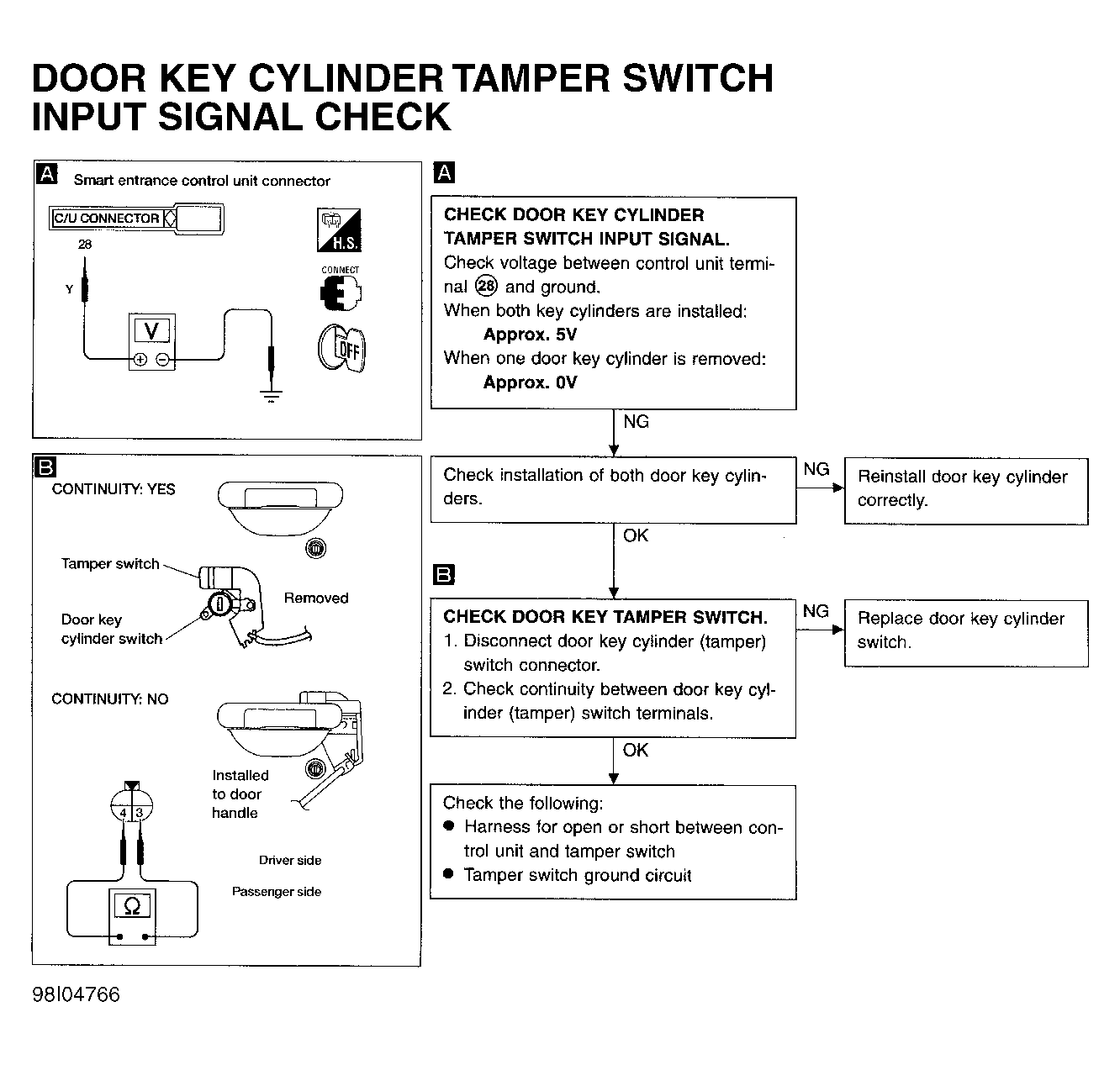

Fig 5: Door Key Cylinder Tamper Switch Input Signal Check

G98I04766

Courtesy of NISSAN MOTOR CO., U.S.A.

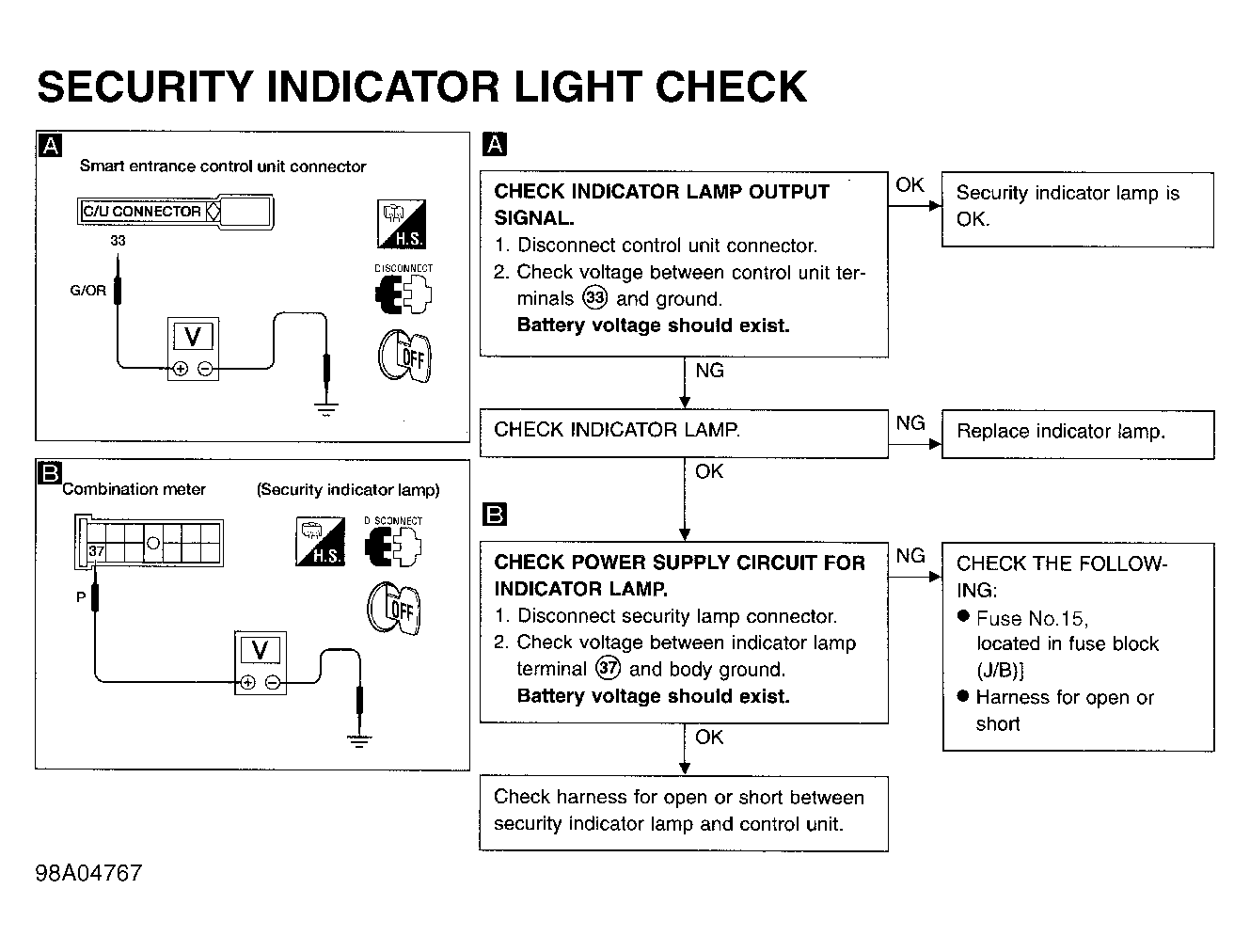

Fig 6: Security Indicator Light Check

G98A04767

Courtesy of NISSAN MOTOR CO., U.S.A.

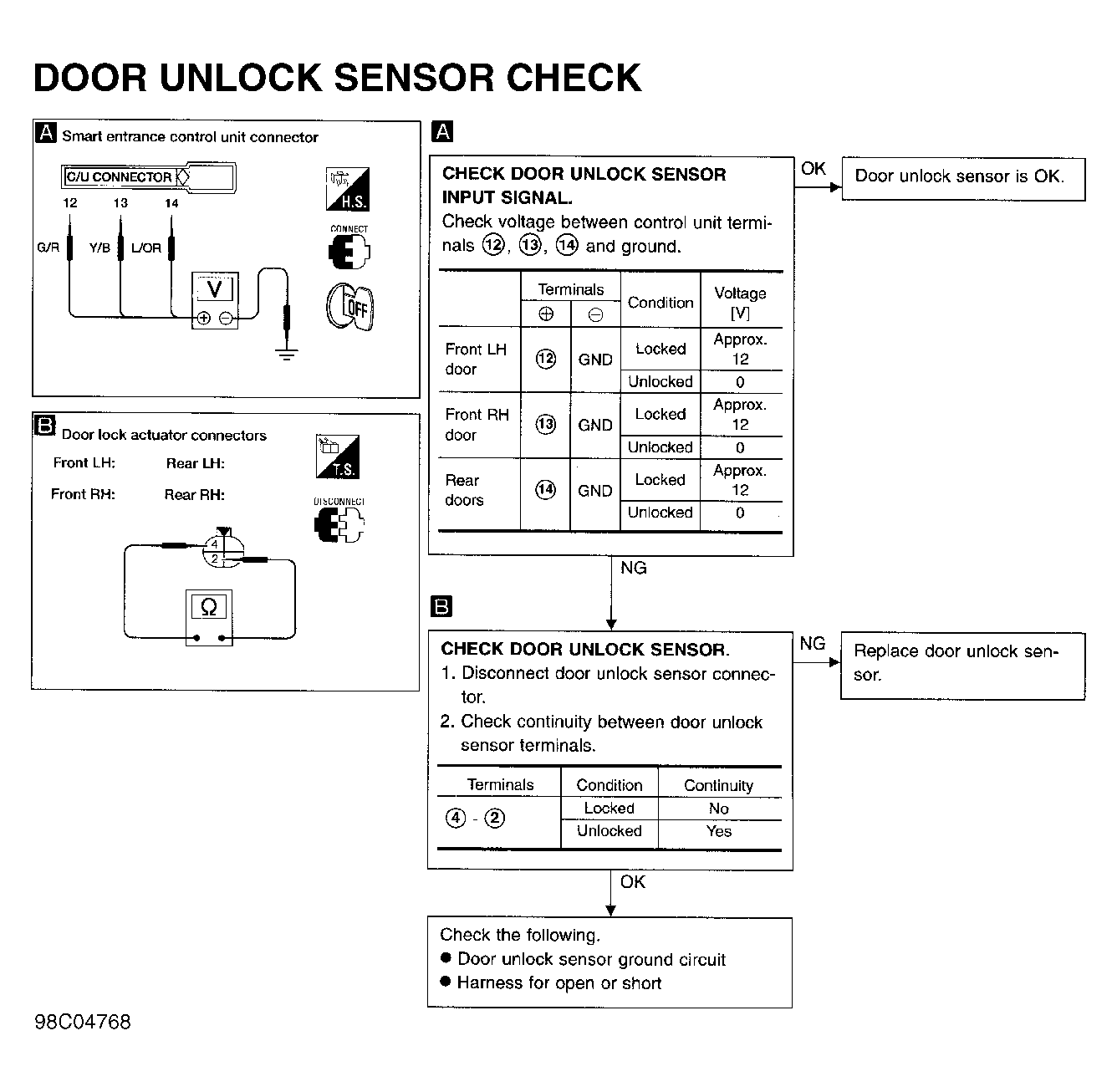

Fig 7: Door Unlock Sensor Check

G98C04768

Courtesy of NISSAN MOTOR CO., U.S.A.

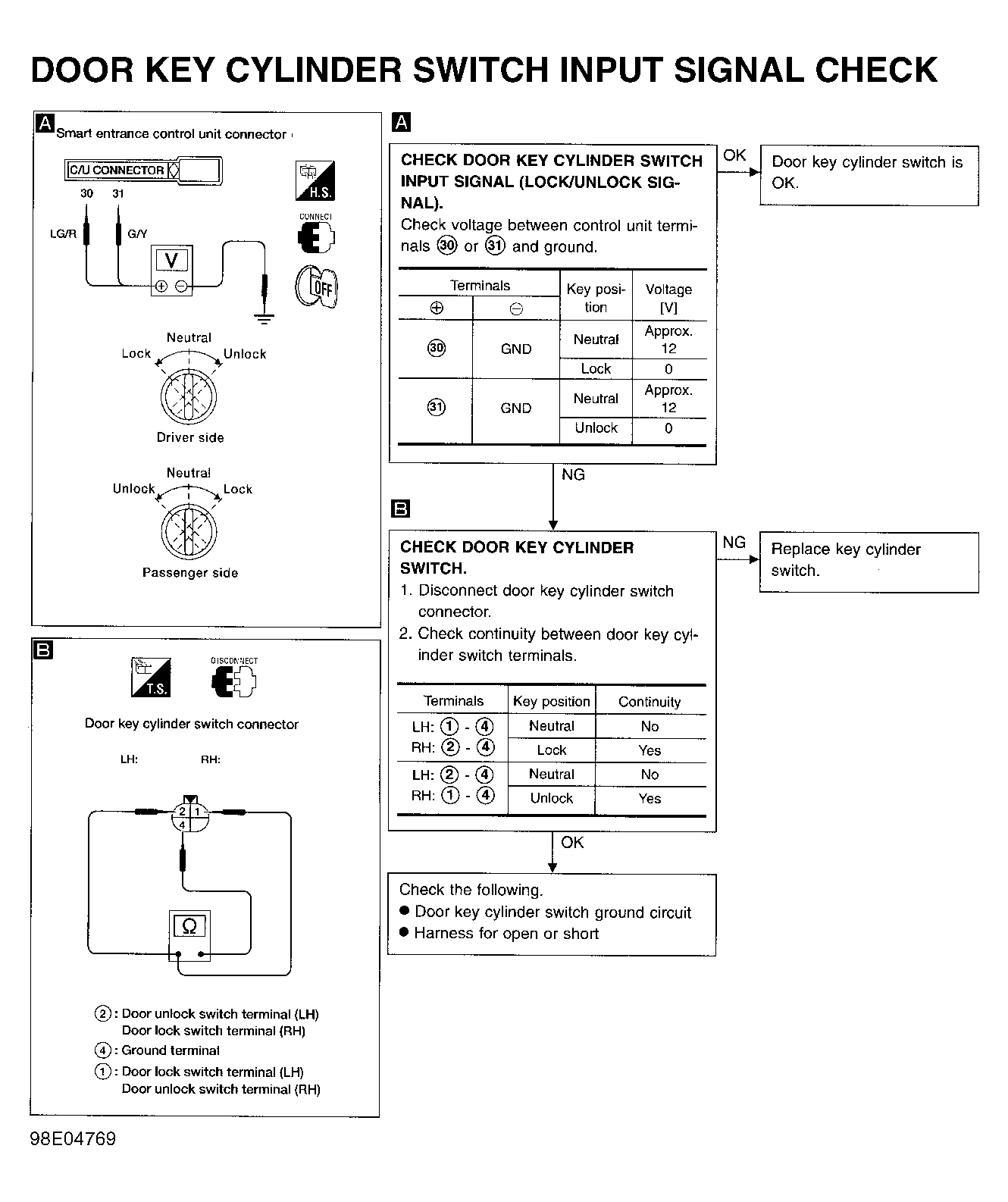

Fig 8: Door Key Cylinder Switch Input Signal Check

G98E04769

Courtesy of NISSAN MOTOR CO., U.S.A.

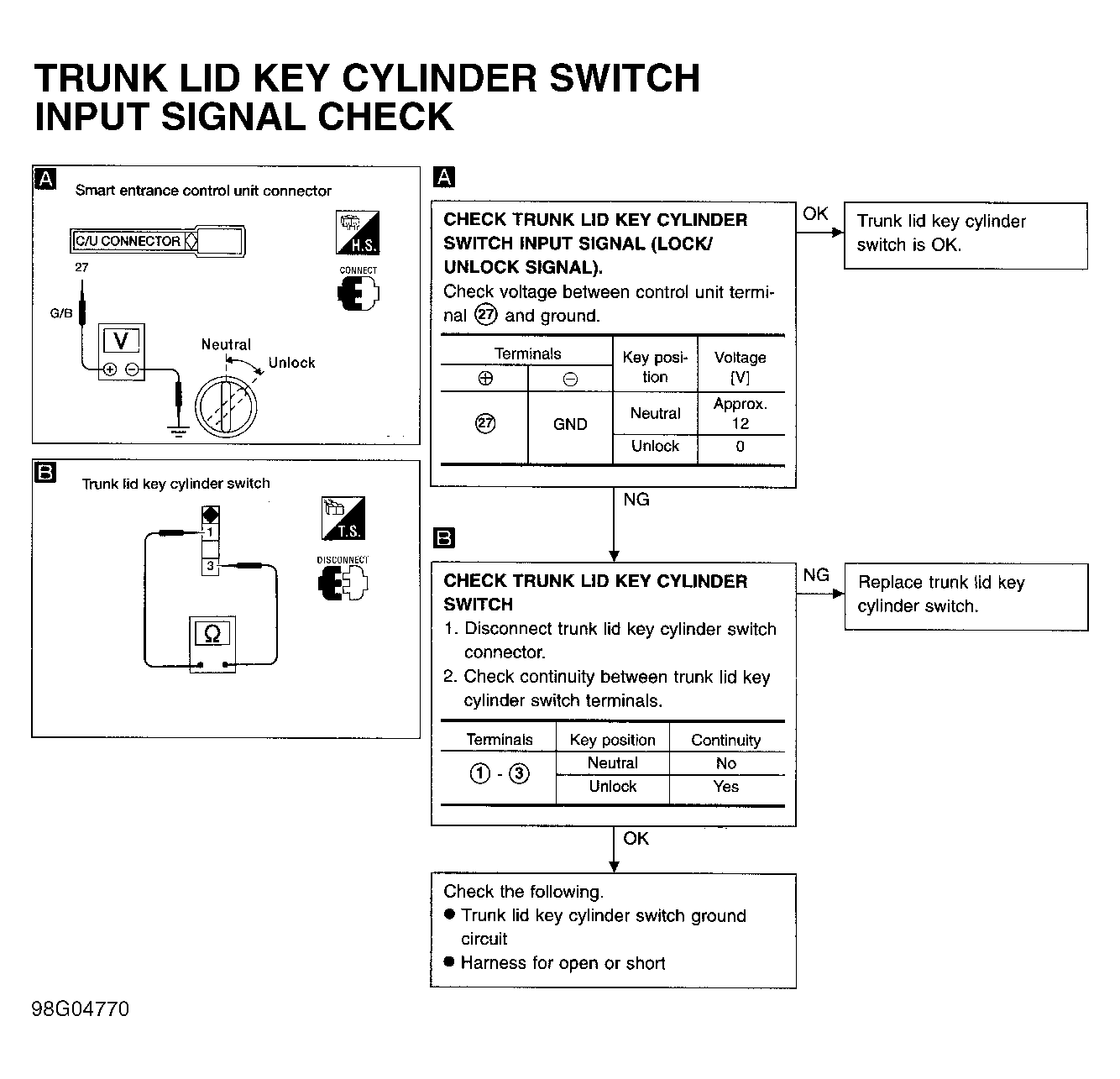

Fig 9: Trunk Lid Key Cylinder Switch Input Signal Check

G98G04770

Courtesy of NISSAN MOTOR CO., U.S.A.

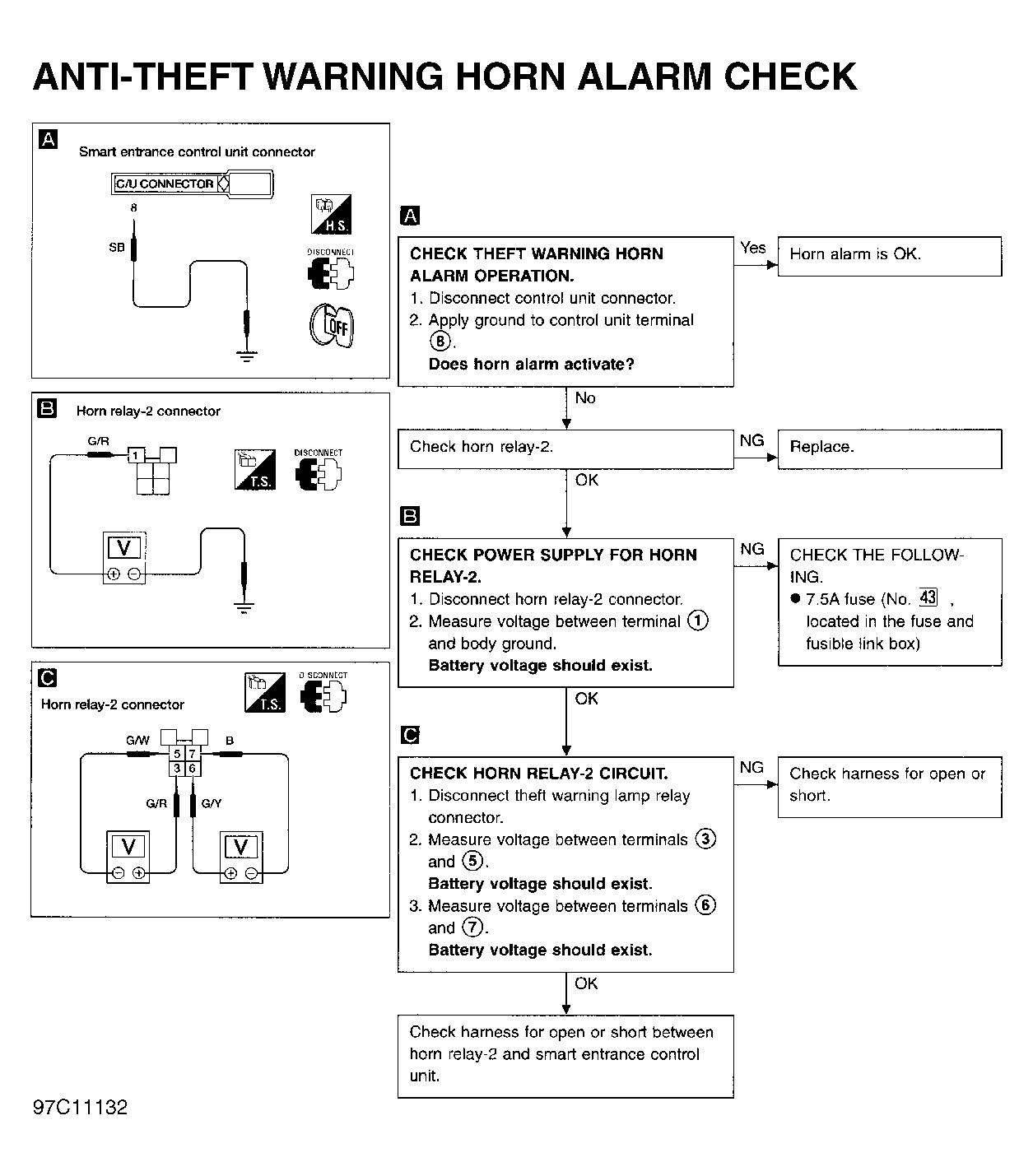

Fig 10: Anti-Theft Warning Horn Alarm Check

G97C11132

Courtesy of NISSAN MOTOR CO., U.S.A.

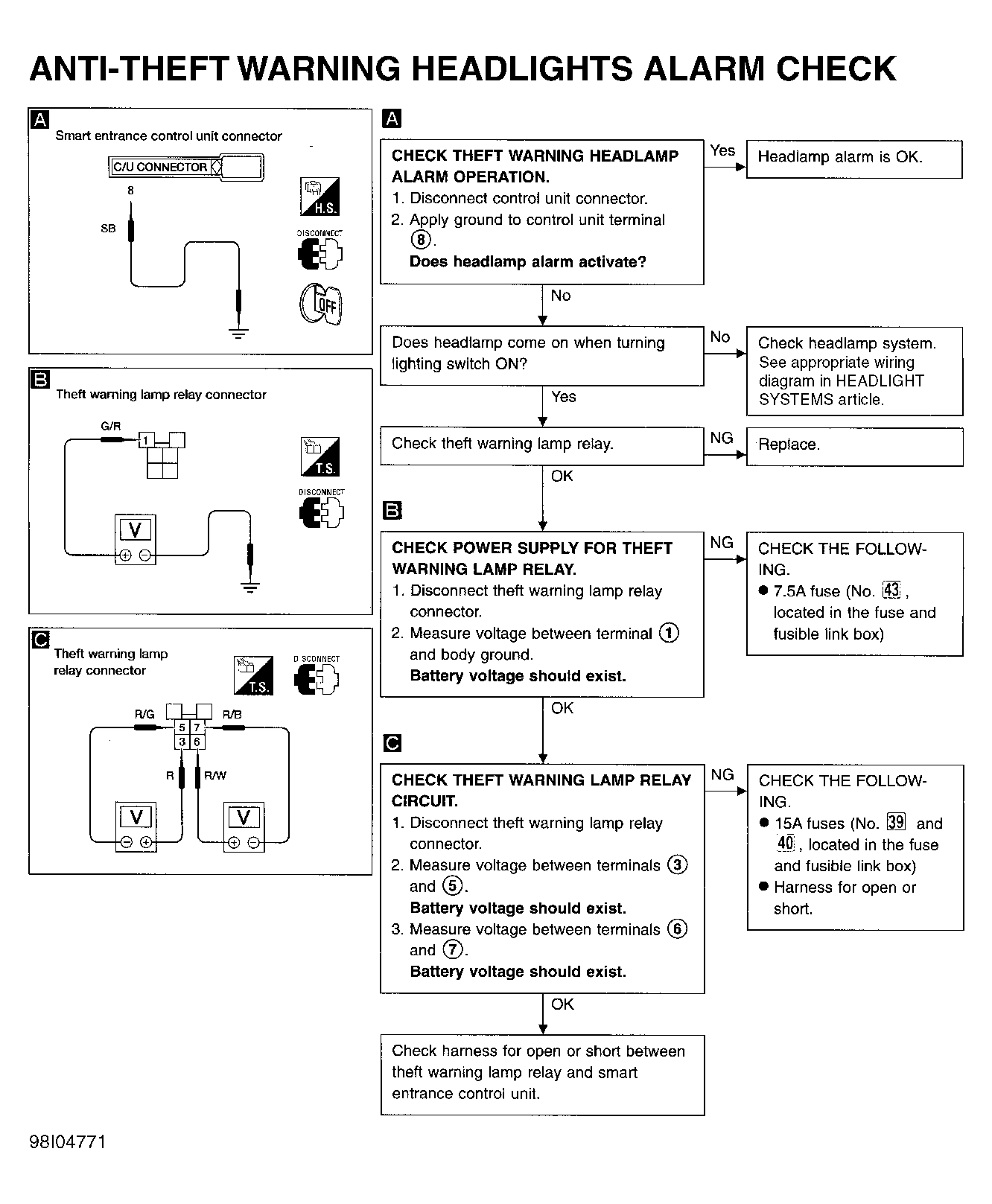

Fig 11: Anti-Theft Warning Headlights Alarm Check

G98I04771

Courtesy of NISSAN MOTOR CO., U.S.A.

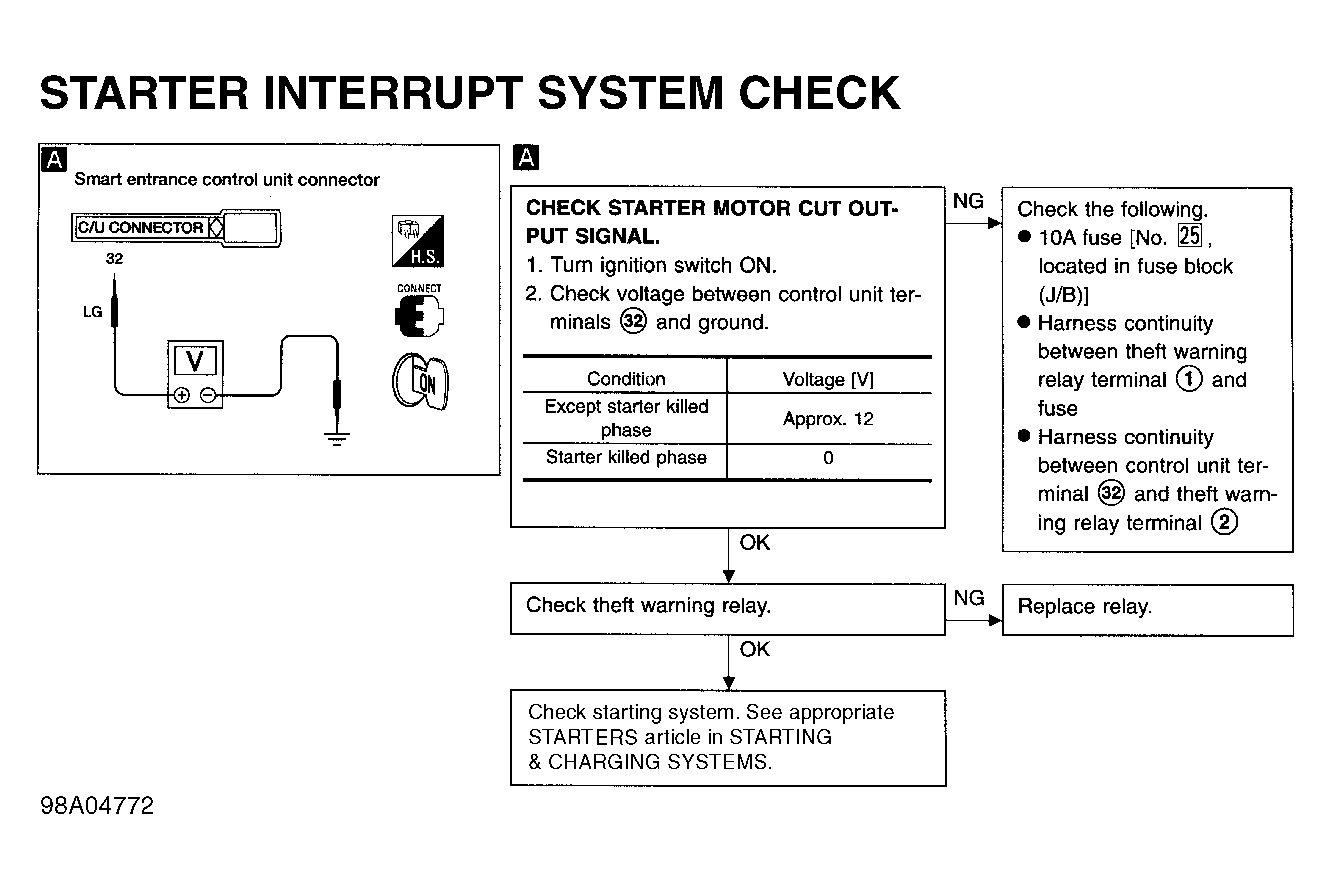

Fig 12: Starter Interrupt System Check

G98A04772

Courtesy of NISSAN MOTOR CO., U.S.A.
