Torque Specifications

TORQUE SPECIFICATIONS

Application Ft. Lbs. (N.m)
Altima
Crossmember Bolt 57-72 (77-98)
Engine-To-Transaxle Bolt
Bolt No. 1 (1) 29-36 (39-49)
Bolts No. 2, 3, 5 & 6 (1) 22-27 (30-36)
Bolt No. 4 (1) 55-61 (74-83)
Torque Converter Bolt 33-43 (45-58)
Maxima
1997
Crossmember Bolt 57-72 (77-98)
Engine-To-Transaxle Bolt (2) 51-59 (70-79)
Gusset-To-Engine Bolt 51-59 (70-79)
Torque Converter Bolt 33-43 (45-58)
1998
Crossmember Bolt 57-72 (77-98)
Engine-To-Transaxle Bolt
Bolt No. 1 (1) 29-36 (39-49)
Bolts No. 2, 3, 5 & 6 (1) 22-27 (30-36)
Bolt No. 4 (1) 55-61 (74-83)
Gusset-To-Engine Bolt 51-59 (70-79)
Starter
Lower Bolt 57-72 (77-98)
Upper Bolt 22-30 (30-41)
Torque Converter Bolt 33-43 (45-58)
Frontier & Pickup
Engine-To-Transmission Bolt
Frontier
Bolt No. 1 (9) 29-36 (39-49)
Bolt No. 2 (9)(10)
Bolt No. 3 (9) 12-16 (16-22)
Pickup
Bolt No. 1 (8) 29-36 (39-49)
Bolt No. 2 (8)(10)
Bolt No. 3 (8) 12-16 (16-22)
Rear Mounting Bracket-To-Transmission Bolt 30-38 (41-52)
Starter Bolt 22-27 (30-36)
Torque Converter Bolt 33-43 (45-58)
1-Piece Rear Drive Shaft Flange Bolt/Nut 58-65 (79-88)
Pathfinder & QX4
Crossmember Mounting Bolt
2WD 32-41 (43-55)
4WD 57-77 (77-105)
Engine-To-Transmission Bolt
Bolts No. 1 & 2 (7) 29-36 (39-49)
Bolt No. 3 (7) 22-29 (29-39)
Exhaust Pipe-To-Manifold Bolt 32-37 (43-50)
Front Drive Shaft Flange Bolt/Nut 41-48 (55-65)
Rear Drive Shaft Flange Bolt/Nut
2WD 58 (78)
4WD 51-58 (69-78)
Rear Transmission Mount Nut 30-38 (41-52)
Starter Bolt 30-38 (41-52)
Torque Converter Bolt 33-43 (45-58)
Quest
Crossmember Bolt 58-65 (78-88)
Engine-To-Transaxle Bolt
Bolt No. 1 (3) 29-36 (39-49)
Bolts No. 2 & 3 (3) 22-30 (30-41)
Starter Bolt 17-19 (23-26)
Torque Converter Bolt 33-43 (45-58)
Sentra & 200SX 1.6L
Crossmember Bolt 33-40 (44-54)
Engine-To-Transaxle Bolt
Bolts No. 1 & 2 (4) 22-30 (30-41)
Bolt No. 3 (4) 12-15 (16-21)
Gusset-To-Engine Bolt
Front 22-30 (30-41)
Rear 12-15 (16-21)
Torque Converter Bolt 33-43 (45-58)
Sentra & 200SX 2.0L
Crossmember Bolt 33-40 (44-54)
Engine-To-Transaxle Bolt
Bolts No. 1, 2 & 3 (5) 51-59 (70-79)
Bolts No. 4 & 5 (5) 12-15 (16-21)
Torque Converter Bolt 33-43 (45-58)
240SX
Crossmember Bolt 32-41 (43-56)
Drive Shaft Flange Bolt 41-48 (55-65)
Engine-To-Transmission Bolt
Bolts No. 1 & 2 (6) 29-36 (39-49)
Bolt No. 3 (6) 22-29 (30-39)
Gusset-To-Engine Bolt 22-29 (30-39)
Rear Transmission Mount Nut 16-21 (22-28)
Starter 30-37 (40-50)
Torque Converter Bolt 33-43 (45-58)
(1) See Fig 1.
(2) See Fig 2.
(3) See Fig 3.
(4) See Fig 4.
(5) See Fig 5.
(6) See Fig 6.
(7) See Fig 7.
(8) See Fig 8.
(9) See Fig 9.
(10) Tighten to 2.2-2.9 INCH lbs. (3-4 N.m).
Fig 1: Identifying Engine-To-Transaxle Bolts (Altima & 1998 Maxima - RE4F04A & RE4F04V Transaxles)
G93F83407Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Identifying Engine-To-Transaxle Bolts (1998 Maxima)
G96F31844Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Identifying Engine-To-Transaxle Bolts (Quest)
G96G31845Courtesy of NISSAN MOTOR CO., U.S.A.

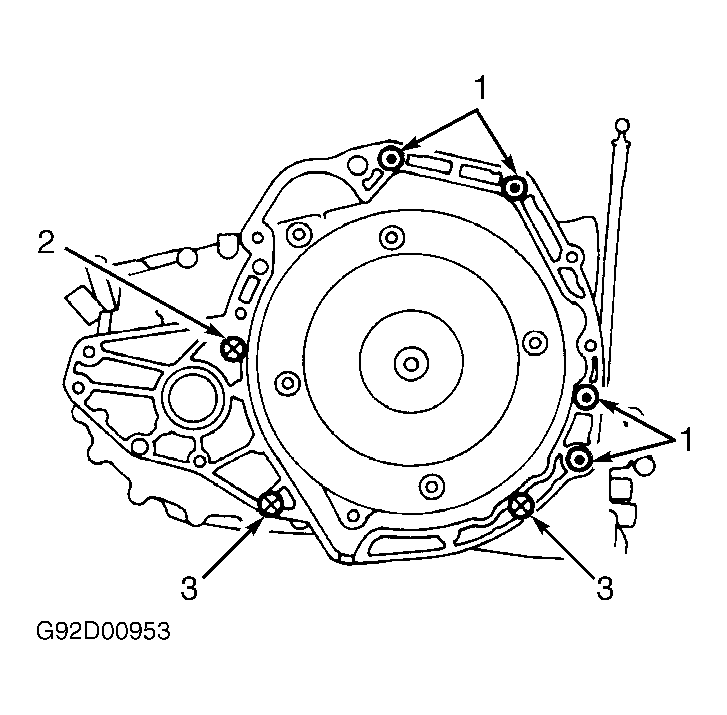

Fig 4: Identifying Engine-To-Transaxle Bolts (Sentra & 200SX - 1.6L)
G92D00953Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 5: Identifying Engine-To-Transaxle Bolts (Sentra & 200SX - 2.0L)
G96H31846Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 6: Identifying Engine-To-Transmission Bolts (240SX)
G92F00955Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 7: Identifying Engine-To-Transmission Bolts (Pathfinder & QX4)
G96J31848Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 8: Identifying Engine-To-Transmission Bolts (1997 Pickup)
G96A31849Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 9: Identifying Engine-To-Transmission Bolts (Frontier)
G98A07718Courtesy of NISSAN MOTOR CO., U.S.A.
