Component Location

The following illustration is provided to assist in locating components for which removal and installation procedures are not provided. See Fig 1 .

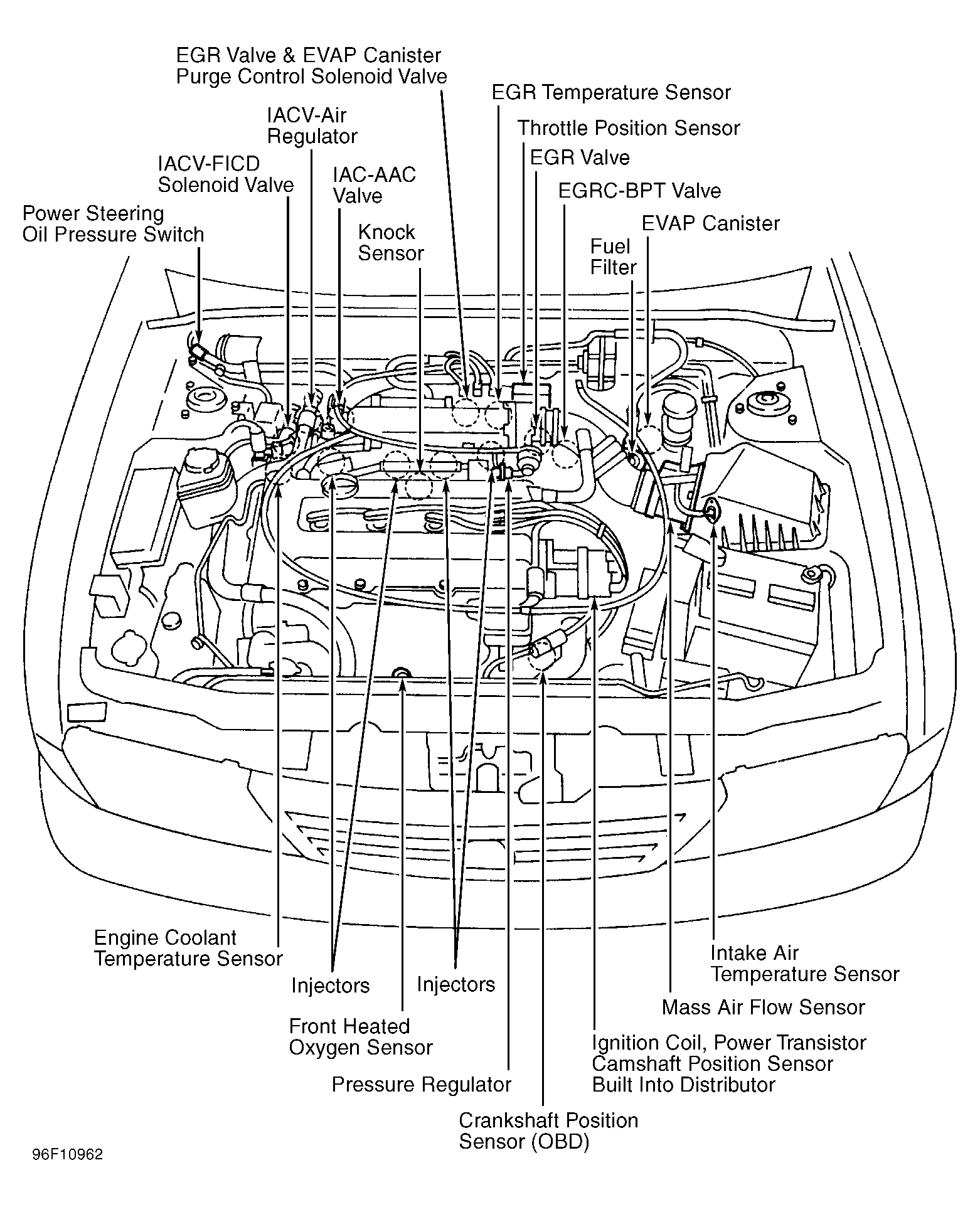

Fig 1: Locating Engine Control System Components
G96F10962Courtesy of AMERICAN HONDA MOTOR CO., INC.
