Inhibitor Switch
- Disconnect and inspect inhibitor switch 8-pin and 2-pin harness connectors for pushed-out, bent, damaged or corroded terminals. Repair connector(s) as necessary. Connectors are located on top or on side of transaxle/transmission.

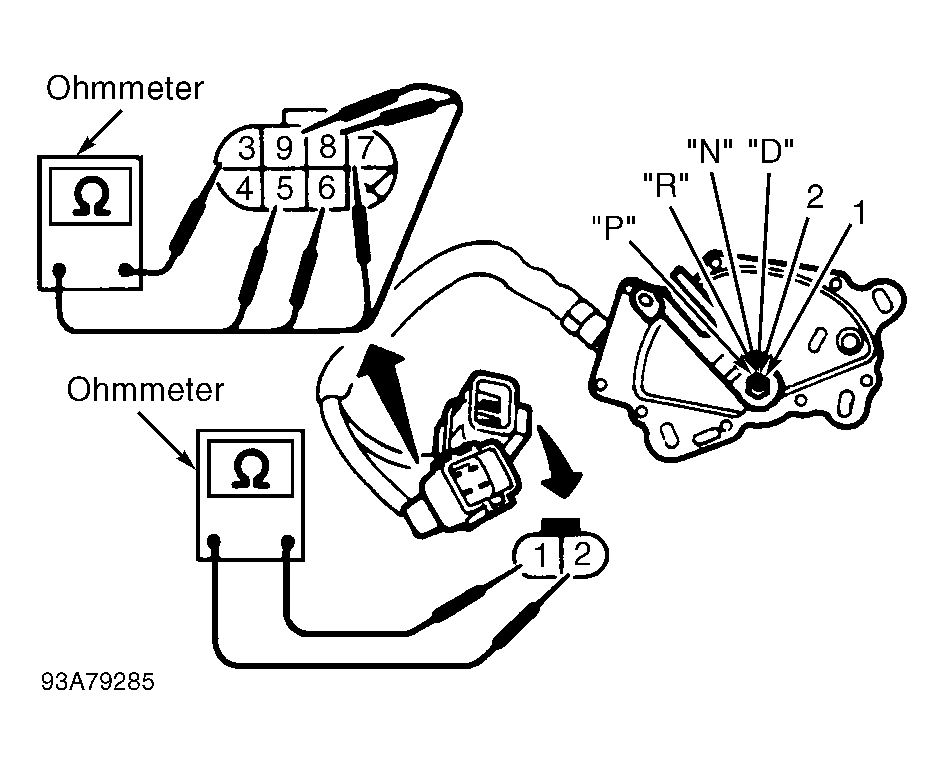

- Using INHIBITOR SWITCH CONTINUITY table, place shift lever in indicated position. Check continuity between terminals of inhibitor switch 8-pin and 2-pin connector listed in table. See Fig 1 . If switch does not function as indicated, replace switch.
INHIBITOR SWITCH CONTINUITY
| Lever Position | 8-Pin Connector Terminals No. | 2-Pin Connector Terminals No. |
|---|---|---|
| "P" | 3 & 4 | 1 & 2 |
| "R" | 3 & 5 | N/A |
| "N" | 3 & 6 | 1 & 2 |
| "D" | 3 & 7 | N/A |
| "2" | 3 & 8 | N/A |
| "1" | 3 & 9 | N/A |
