Electrical Component Locator: Grounds
GROUNDS
| Component | Component Location |
|---|---|

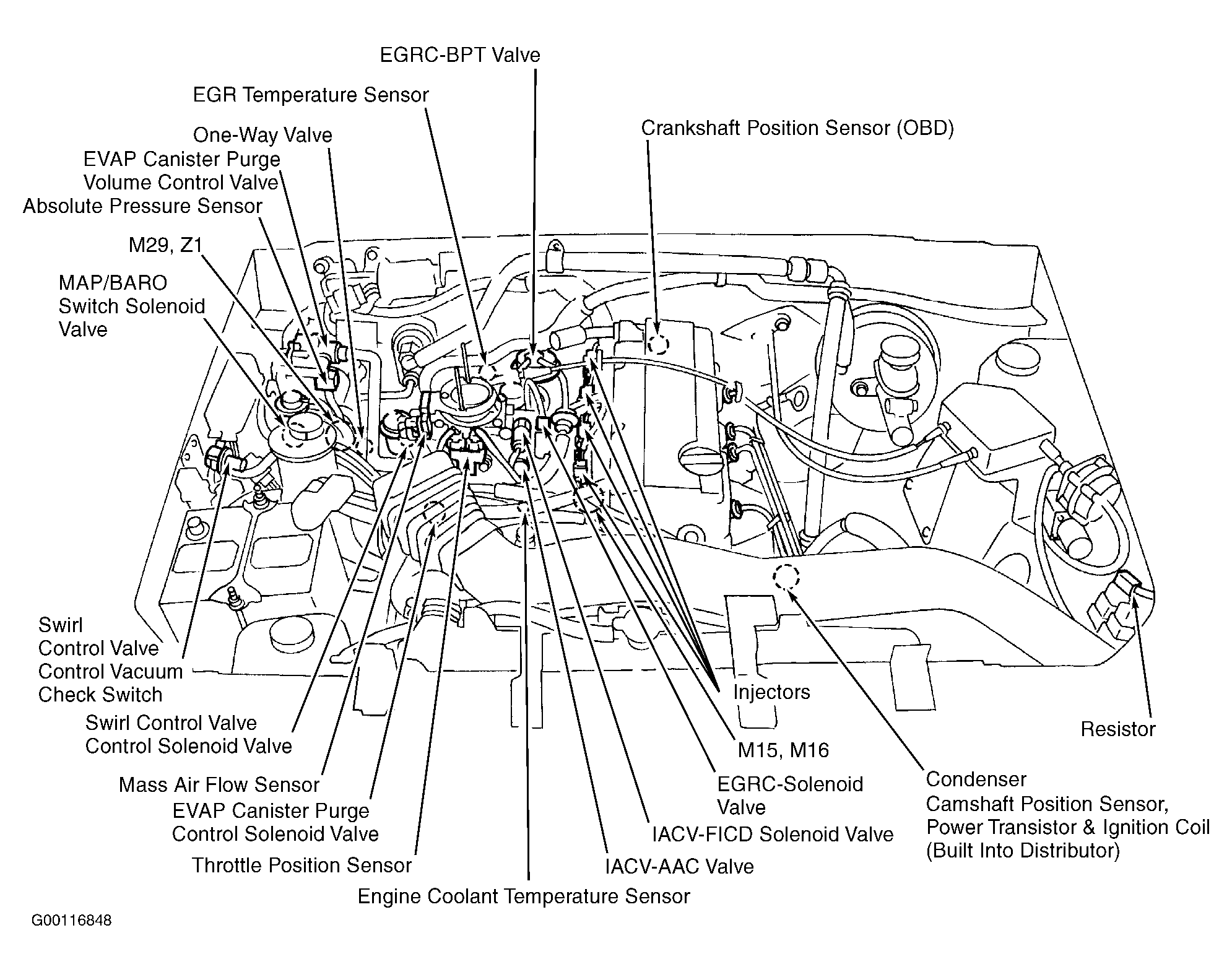

| M15 | On top of engine. See Figure . |
| M16 | On top of engine. See Figure . |
| M49 | Right side of engine compartment. |

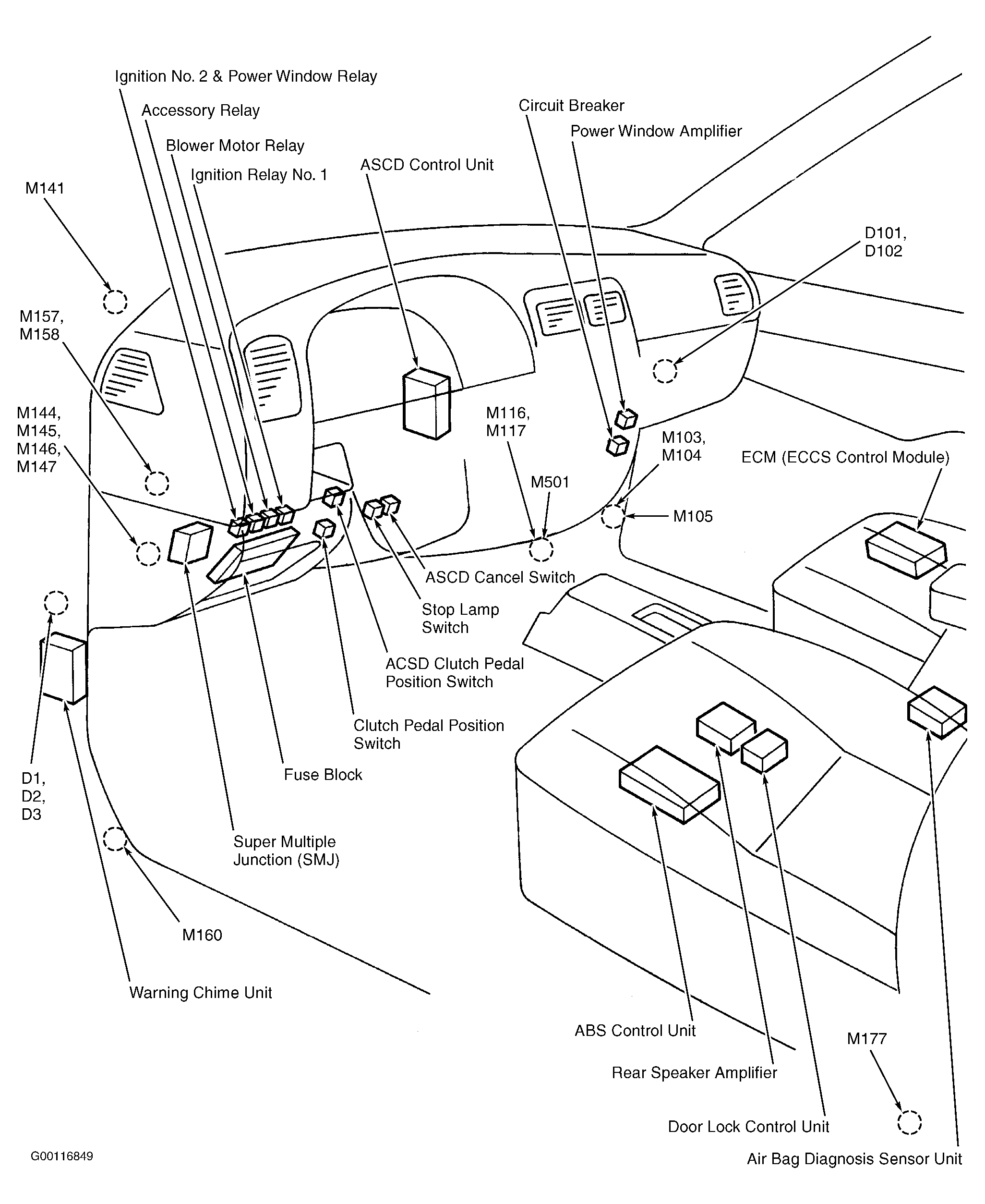

| M105 | Right "A" pillar. See Figure . |
| M111 | Below right seat. |
| M160 | Left "A" pillar. See Figure . |
| M177 | Below driver's seat. See Figure . |
| E6 | Right side of engine compartment. |
| E24 | Right side of engine compartment. |
| E25 | Front of engine, below valve cover. |
