Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

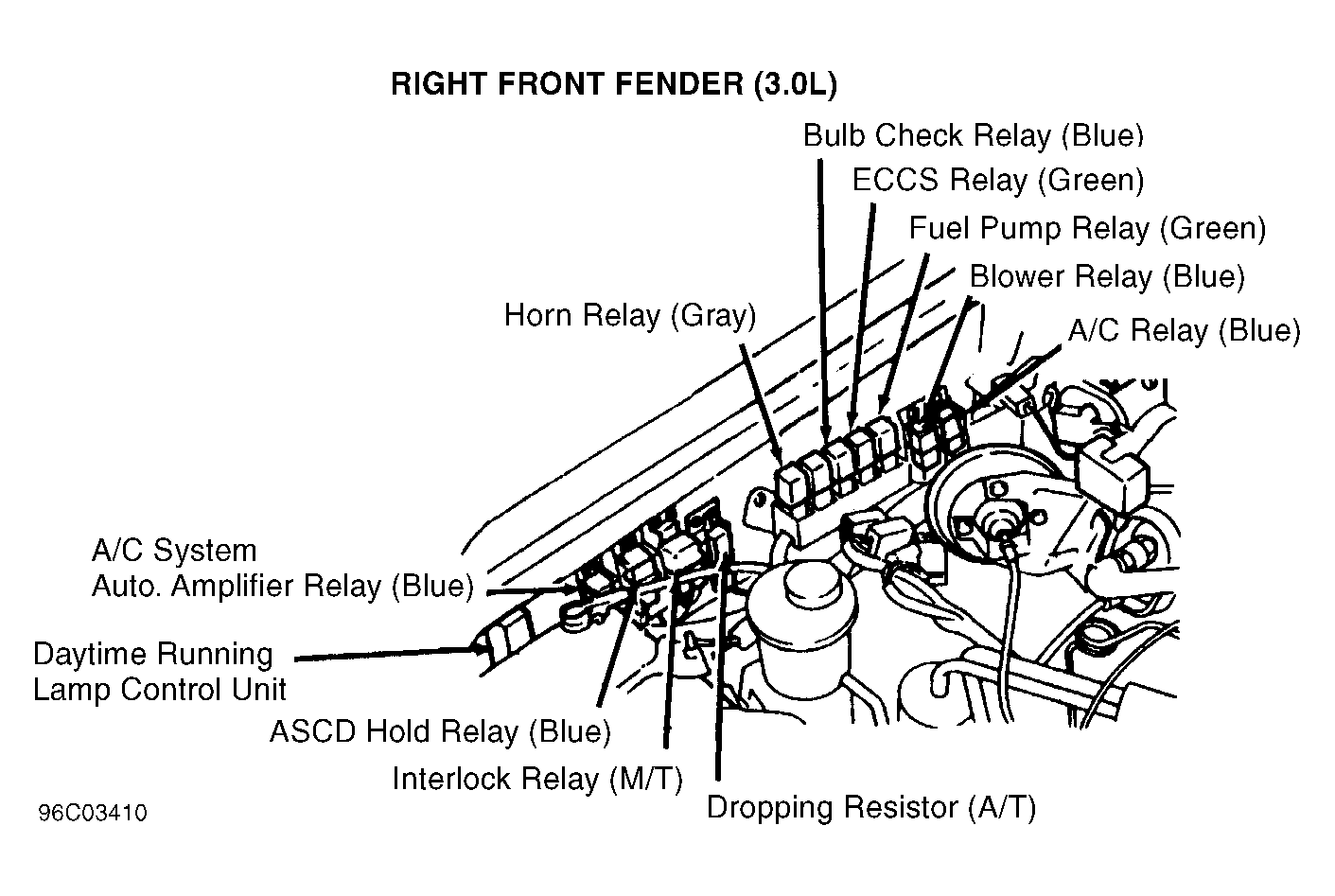

Fig 1: Right Front Fender (3.0L)

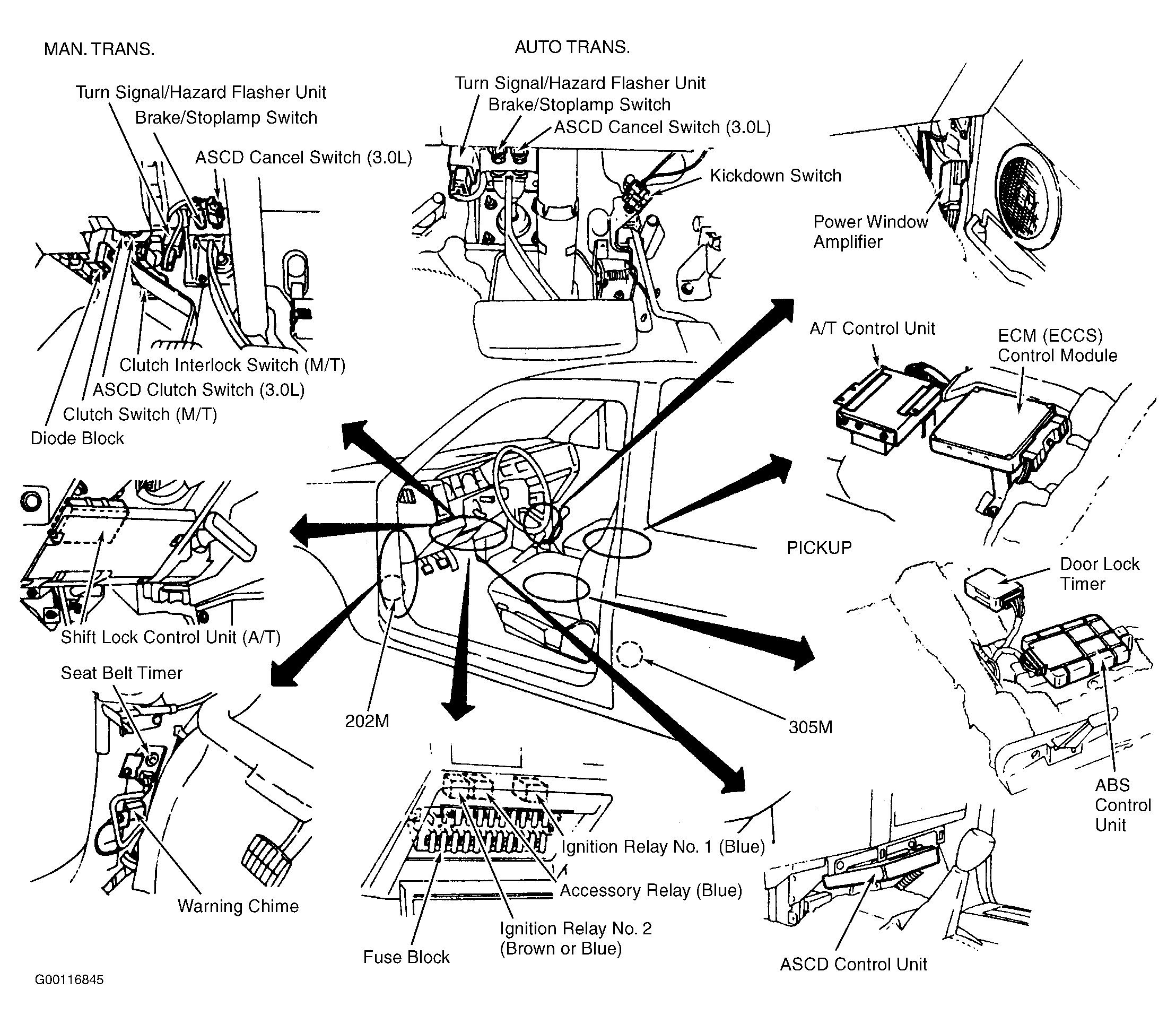

Fig 2: Passenger Compartment

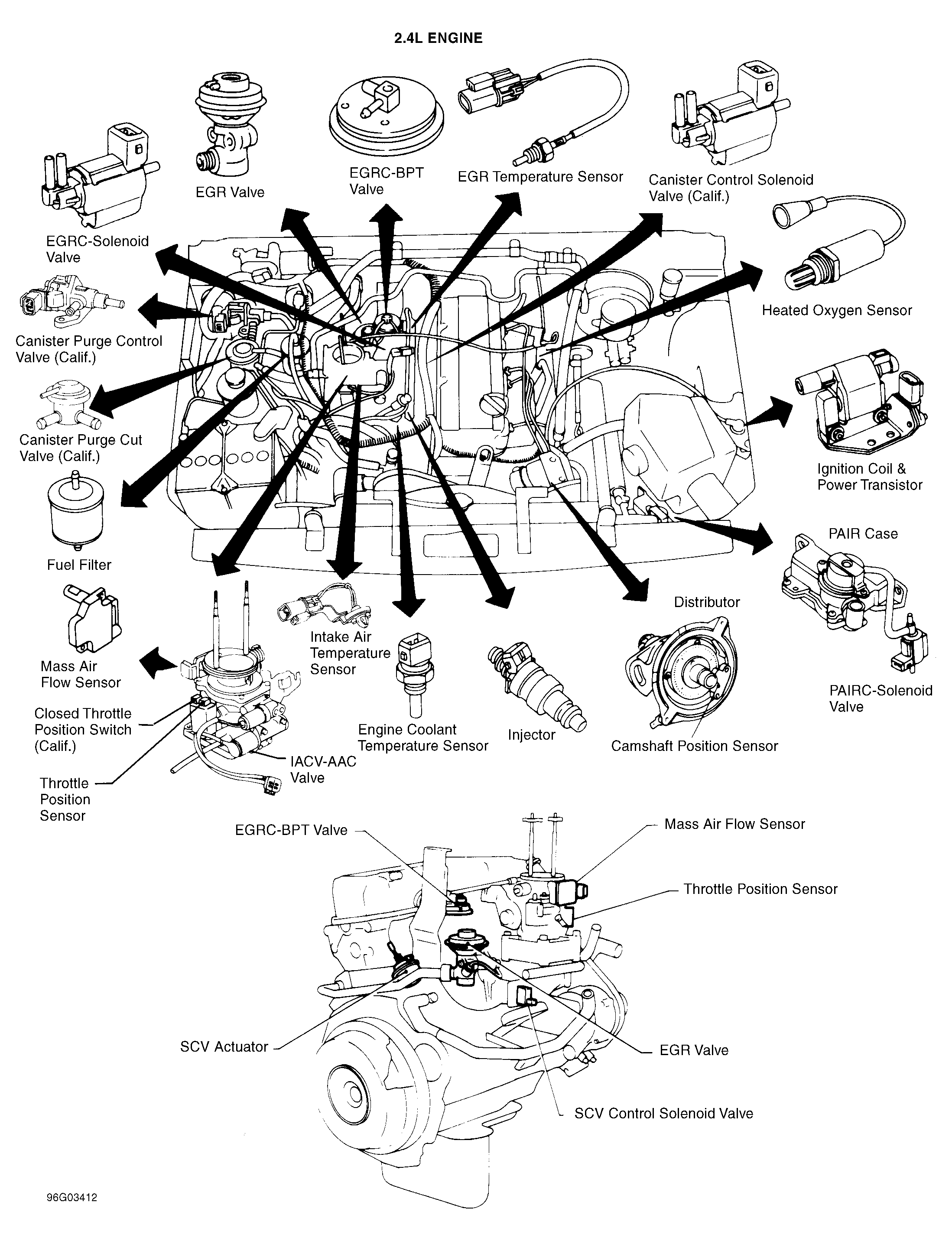

Fig 3: Engine Compartment (2.4L)

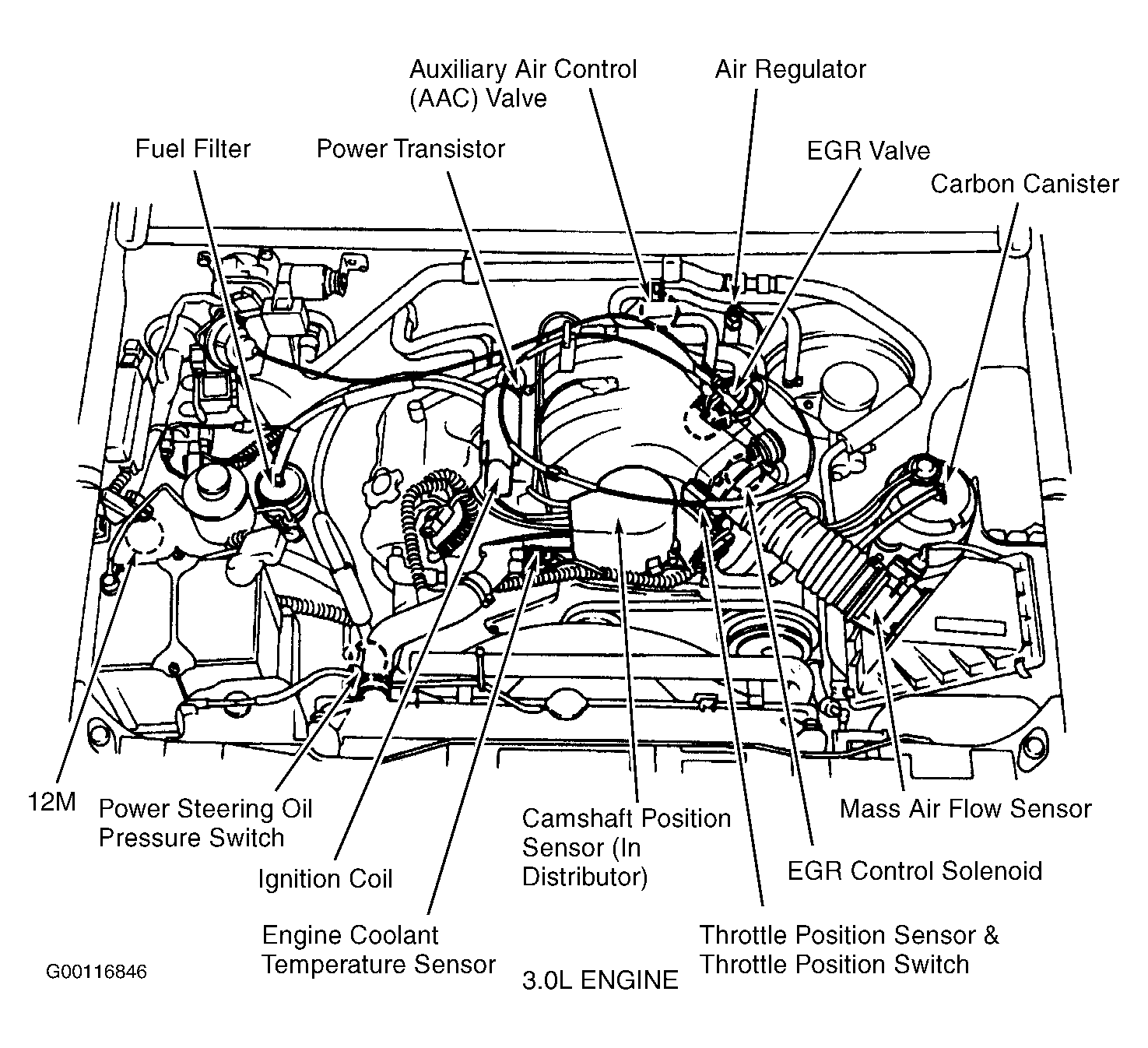

Fig 4: Engine Compartment (3.0L)

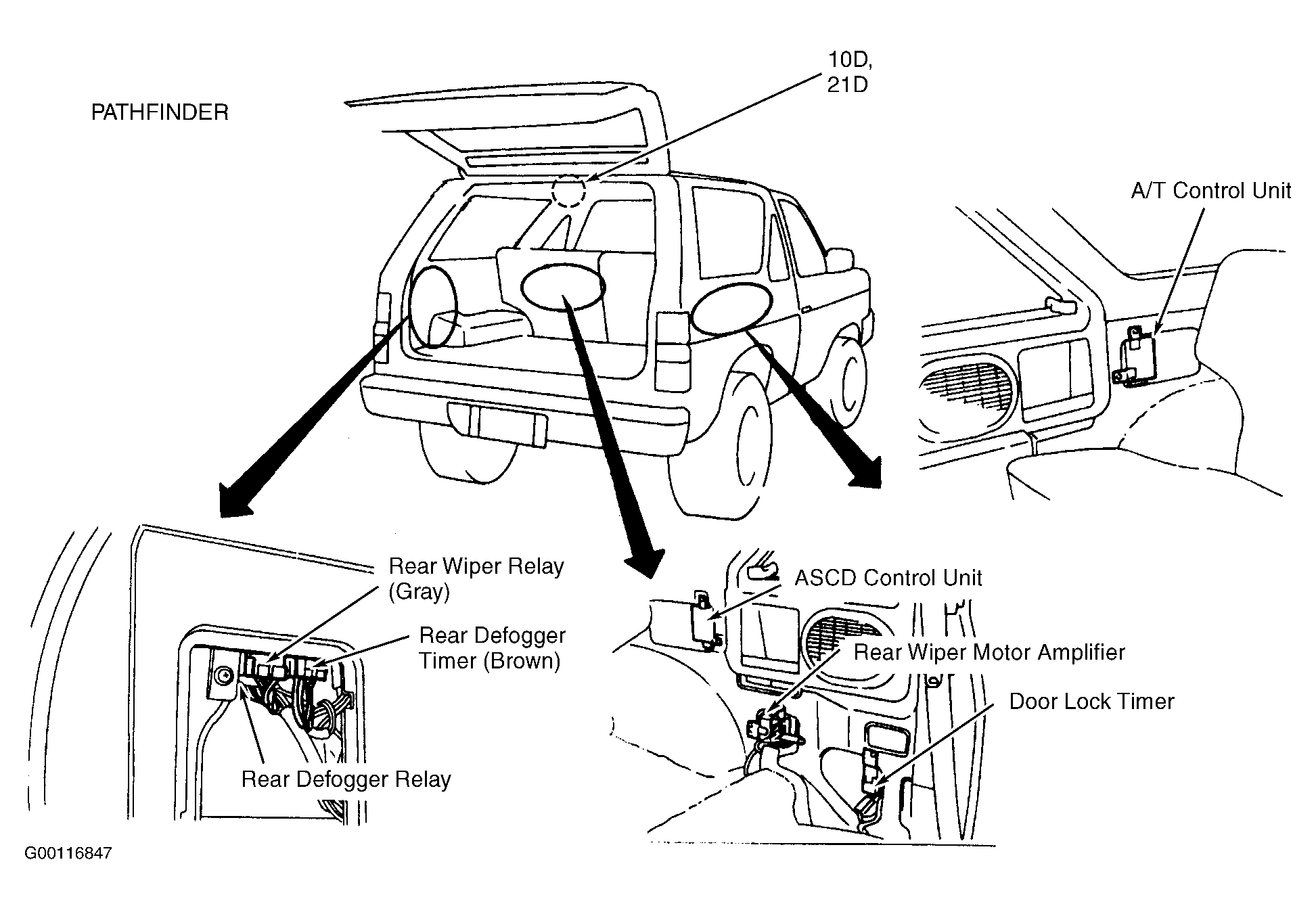

Fig 5: Rear Compartment

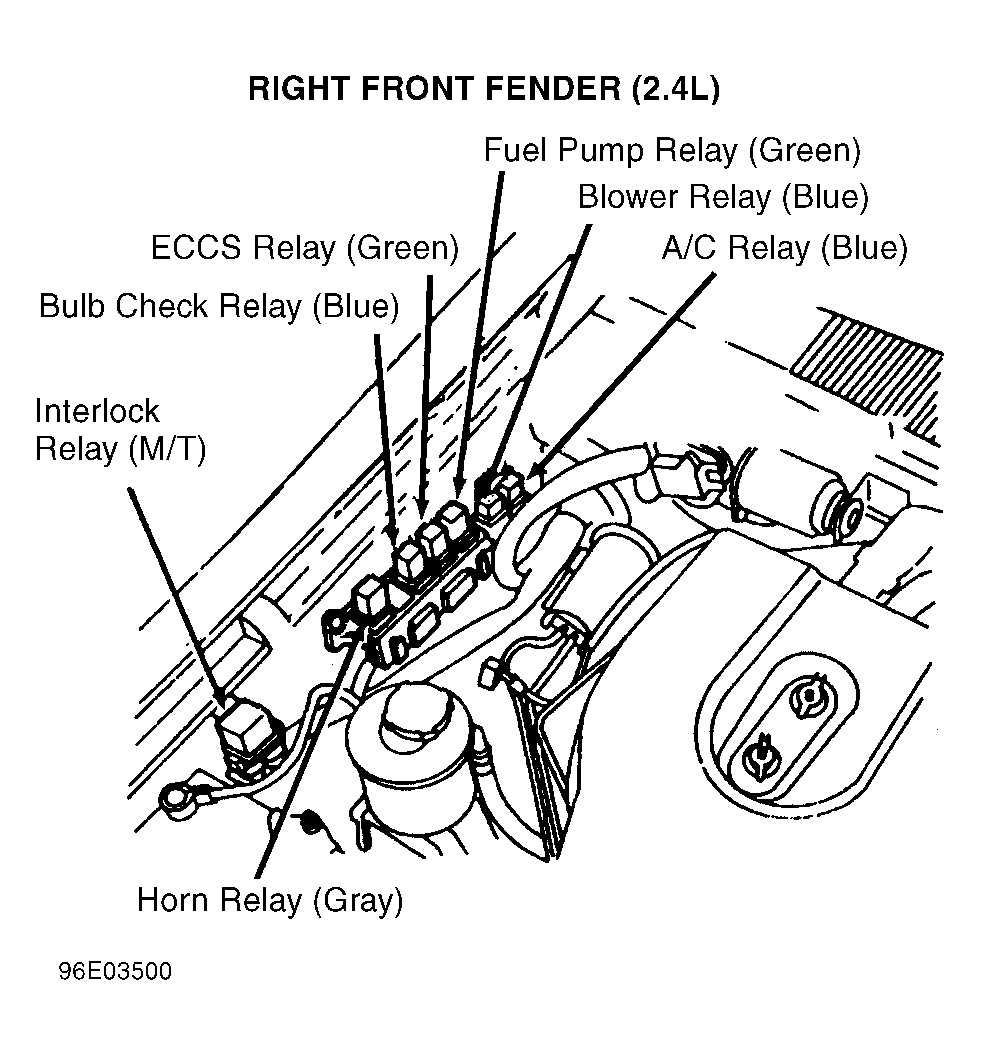

Fig 6: Right Front Fender (2.4L)

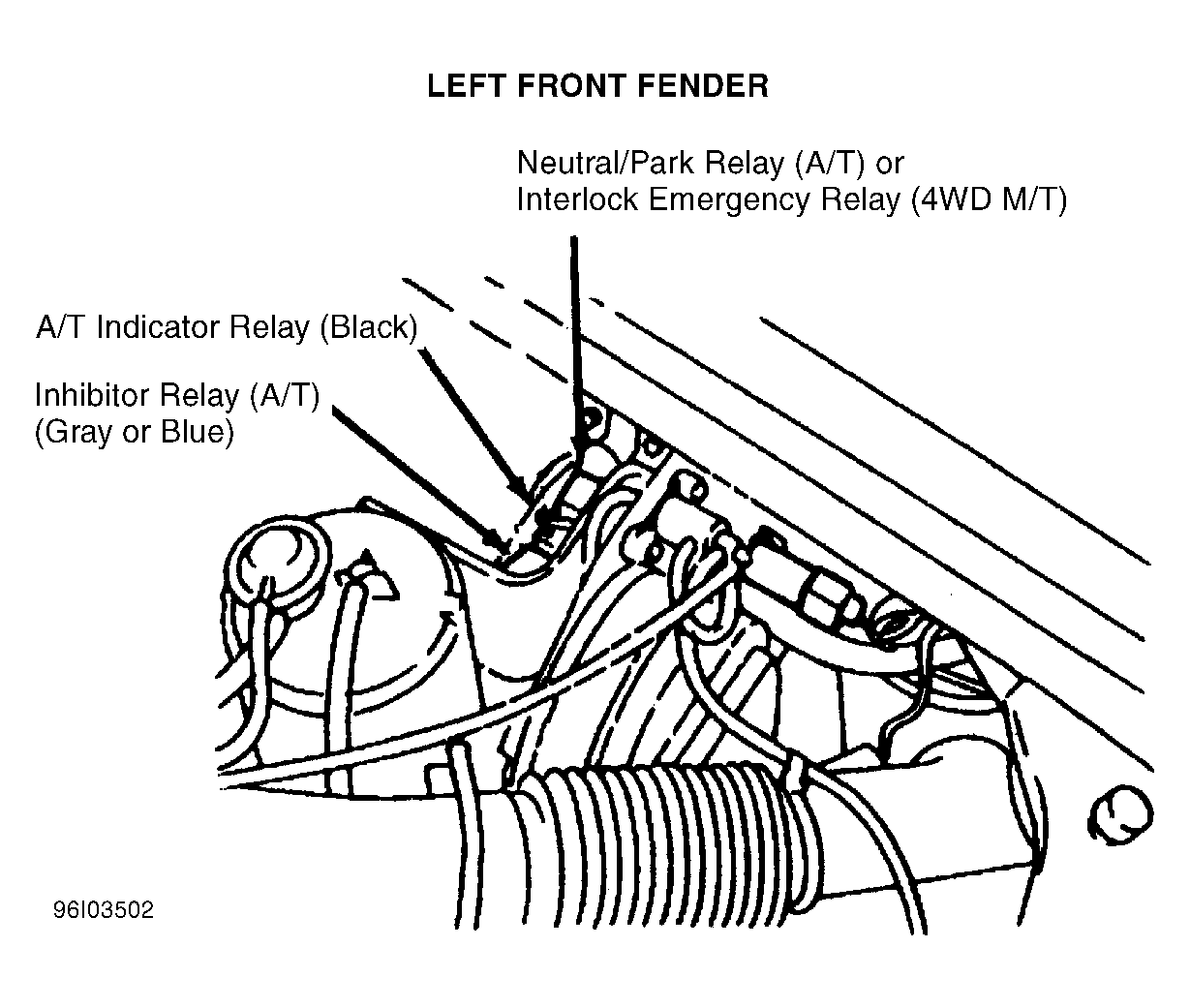

Fig 7: Left Front Fender (3.0L)
