Throttle Position (TP) Sensor

NOTE: Faults in TP sensor circuit may set Code 43. To test system, see CODE 43 diagnostic procedure in the TESTS W/CODES article.

Turn ignition off. Ensure TP sensor wiring harness connector is securely connected. Adjust TP sensor by loosening mounting bolts and rotating sensor body until output voltage is within specification. See 4-CYLINDER TP SENSOR VOLTAGE table. See Fig 1

4-CYLINDER TP SENSOR VOLTAGE ⁽¹⁾

Application

Voltage

Altima M/T

.30-.70

⁽¹⁾	Voltage measured at wiring harness side with TP sensor connected and ignition switch in the ON position.

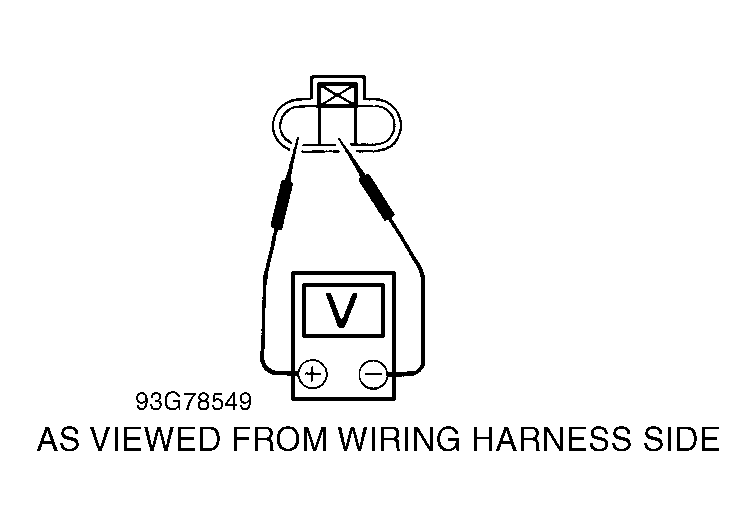

Fig 1: TP Sensor Harness Connector Terminals (Typical)

Courtesy of NISSAN MOTOR CO., U.S.A.
