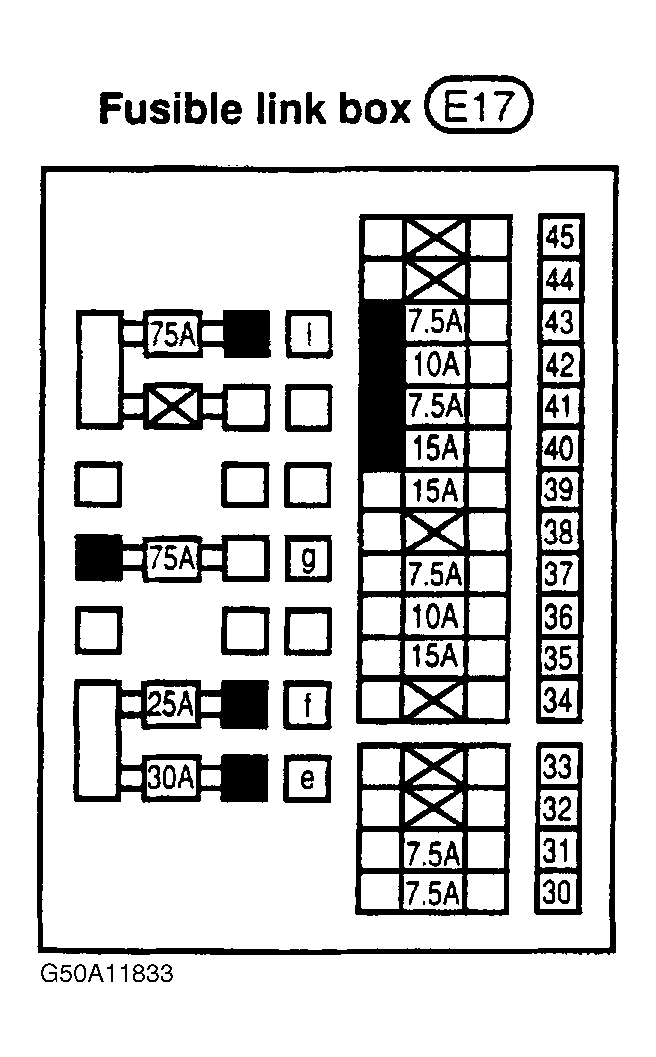

UNDERHOOD Power Distribution Box Fuse Identification
Courtesy of NISSAN MOTOR CO., U.S.A.
- 30 - 7.5 Amp
A/C FICD
- 31 - 7.5 Amp
Charge
- 32 - Not Used
- 33 - Not Used
- 34 - Not Used
- 35 - 15 Amp
Front Fog Lights
- 36 - 10 Amp
Illumination, Tail Lights, Chimes
- 37 - 7.5 Amp
- 38 - Not Used
- 39 - 15 Amp
Headlamp, DTRL, Theft, F/Fog
- 40 - 15 Amp
Headlamp, DTRL, Theft, LD/SIG
- 41 - 7.5 Amp
Main, CMPS, MAFS
- 42 - 10 Amp
Horn, ASCD, Theft
- 43 - 7.5 Amp
Theft
- 44 - Not Used
- 45 - Not Used
- Fusible Link "E" - 30 Amp
A/C Cooling Fan
- Fusible Link "F" - 25 Amp (Circuit Breaker)
Power Window, Door Lock, Sunroof, Theft
- Fusible Link "G" - 75 Amp
Fuse Box
- Fusible Link "H" - Not Used
- Fusible Link "I" - 75 Amp
