Fuse Panel Identification: Notes

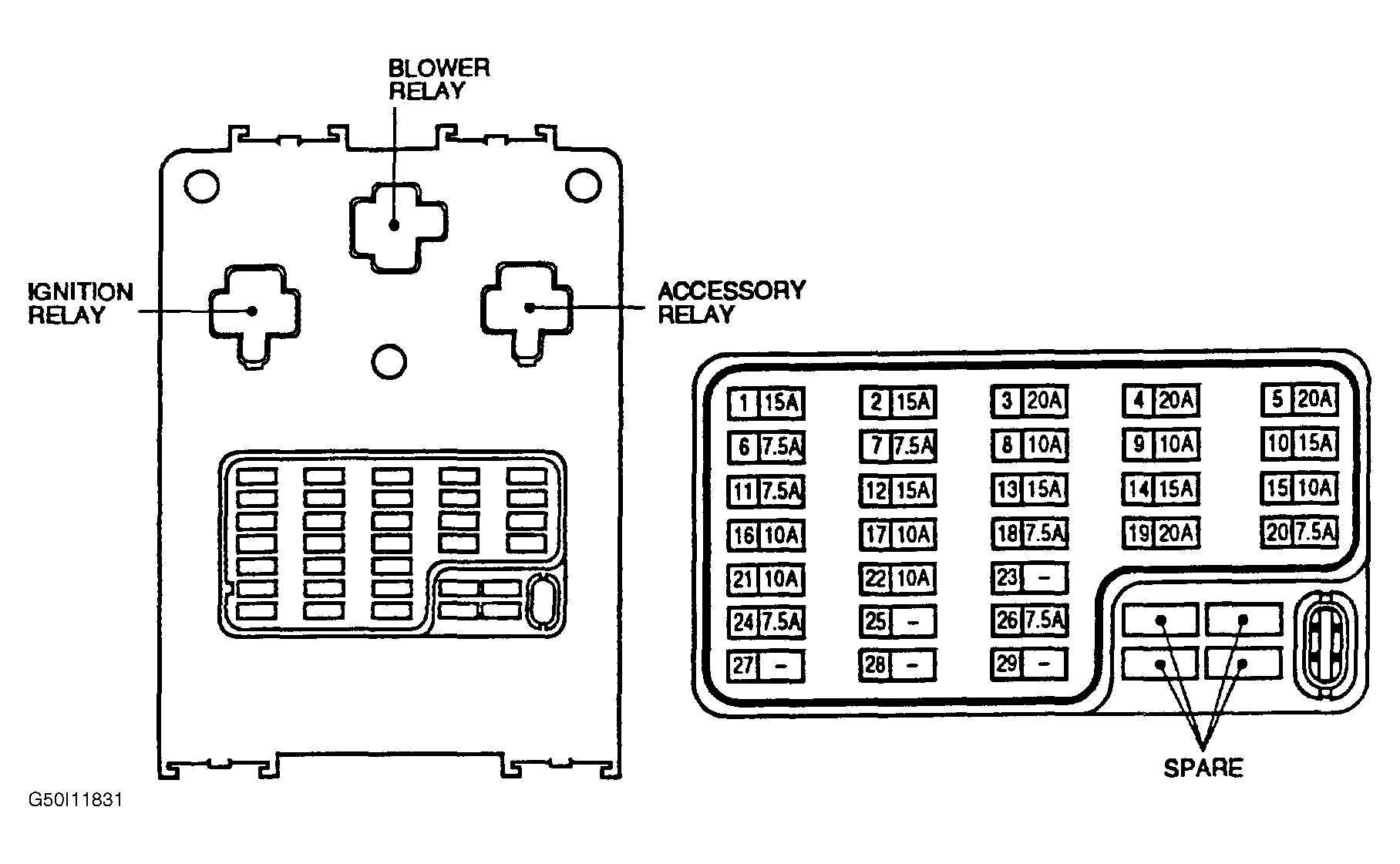

Fig 1: Fuse Panel Identification
G50I11831Courtesy of NISSAN MOTOR CO., U.S.A.
