EGR Control Solenoid

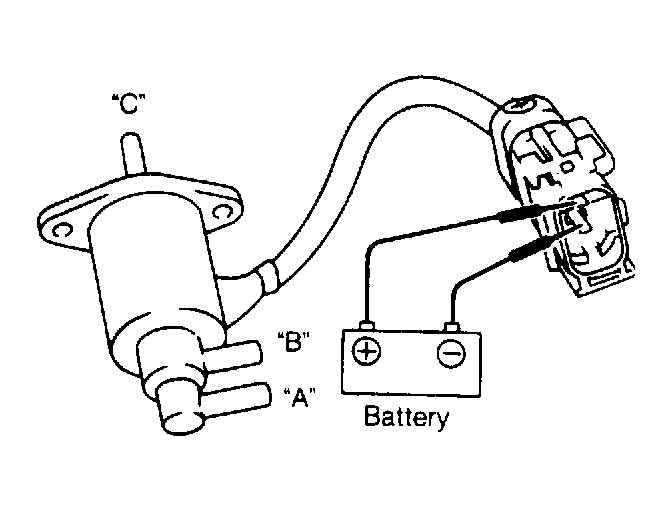

  1. Disconnect vacuum lines and electrical connector from solenoid. Remove solenoid. Using hand-held vacuum pump, apply vacuum to port "B" of solenoid. See Figure . Vacuum should now be available at port "C", but not at port "A".
  2. Apply battery voltage across solenoid connector terminals, ensuring polarity is correct to prevent solenoid damage. Vacuum should now be available at port "A", but not at port "C". Replace solenoid if it does not operate as specified.
