Nissan-Datsun
>>
1994
>>
Pickup Base, 2.4 S
>>
Repair and Diagnosis
>>
Body & Frame
>>
Power Windows
>>
Testing
>>
Switch Test
Switch Test
Remove connector from switch. Test continuity of switch. See
Fig 1
.

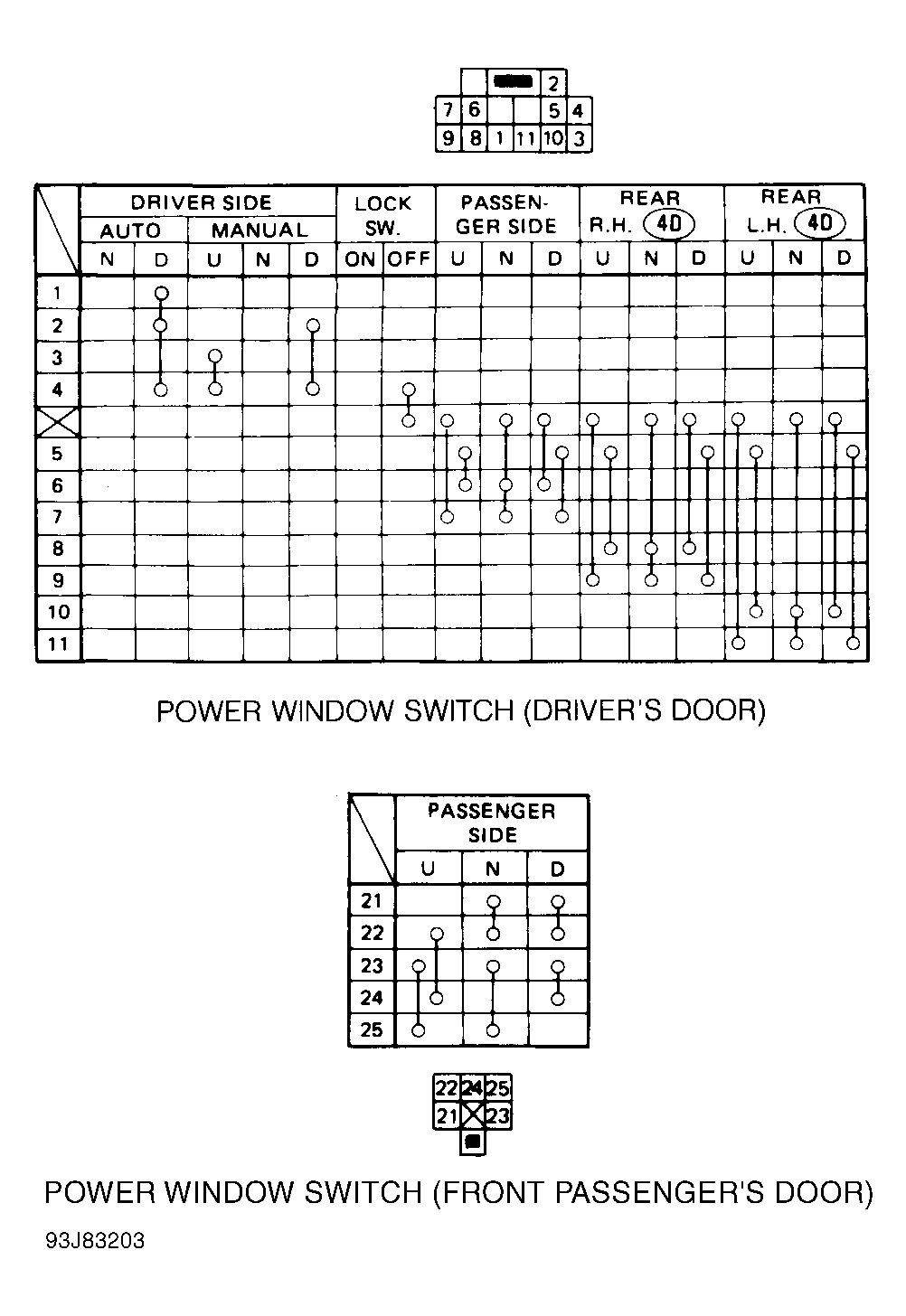

Fig 1: Testing Door Switches (Pickup)
Courtesy of NISSAN MOTOR CO., U.S.A.
