Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

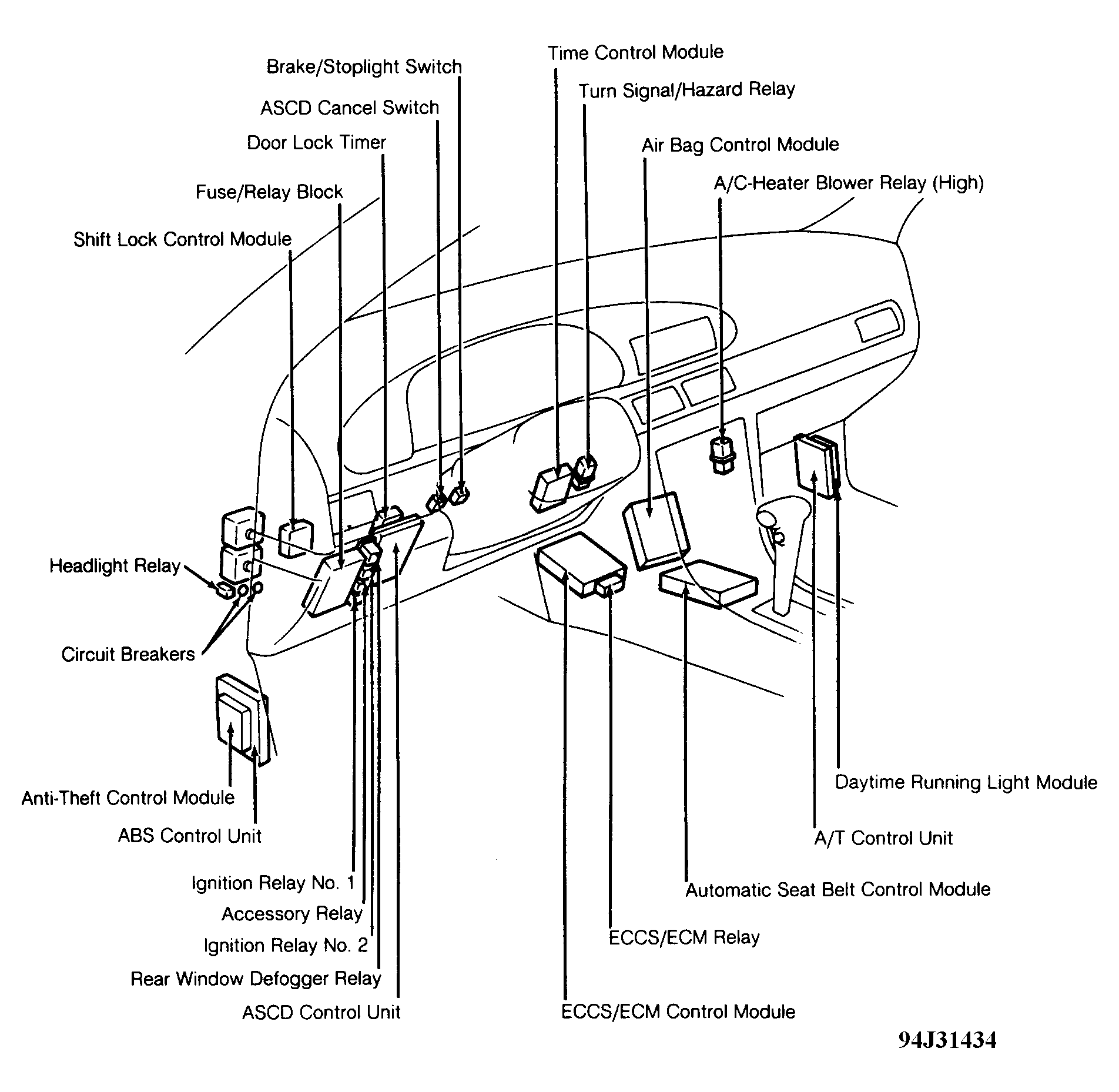

Circuit Breakers Behind left side of dash, near fuse/relay block. See Figure .
Fuse/Relay Block Under left side of dash. See Figure .

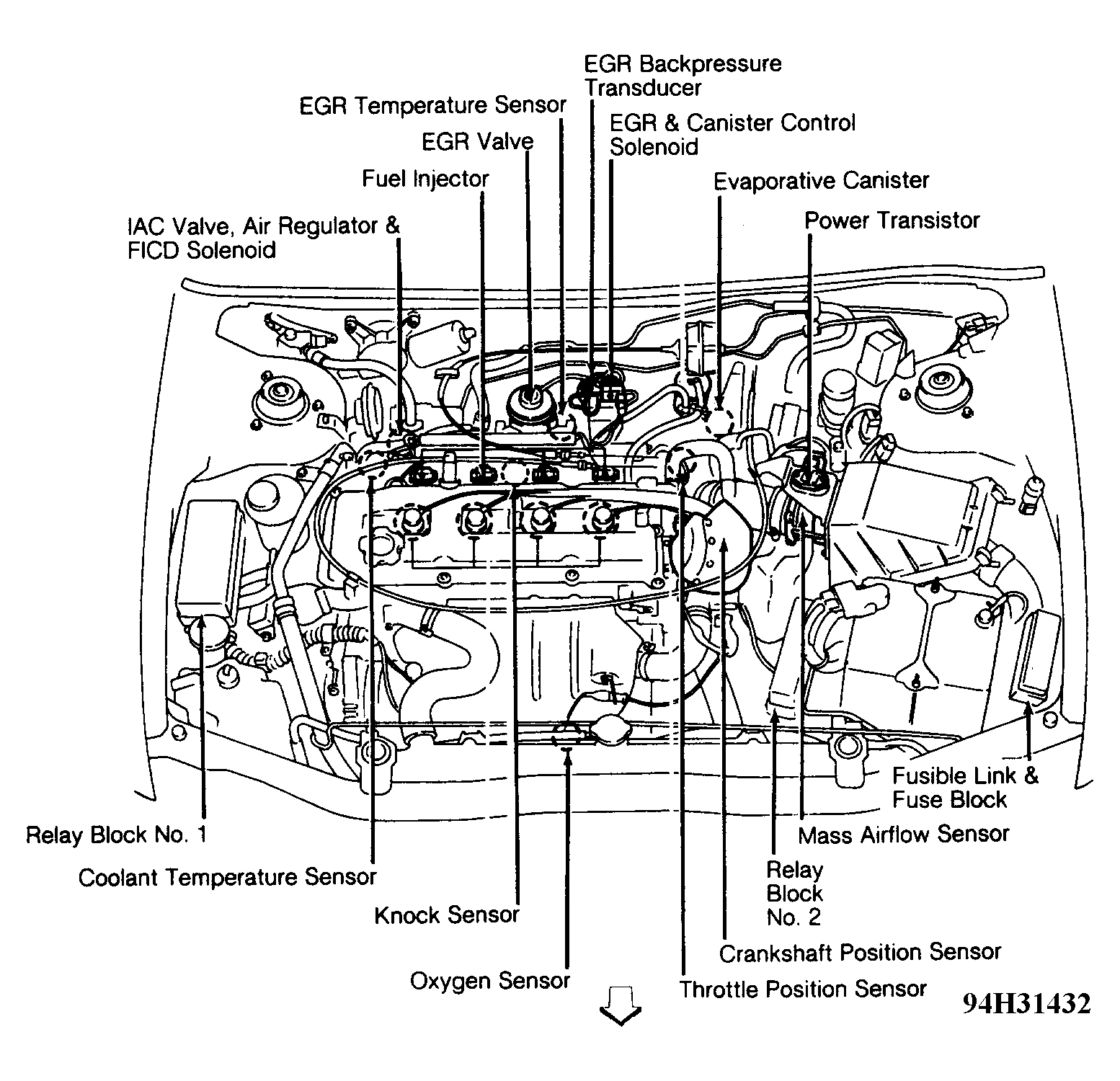

Fusible Link & Fuse Block On left front of engine compartment, near battery. See Figure & Figure .

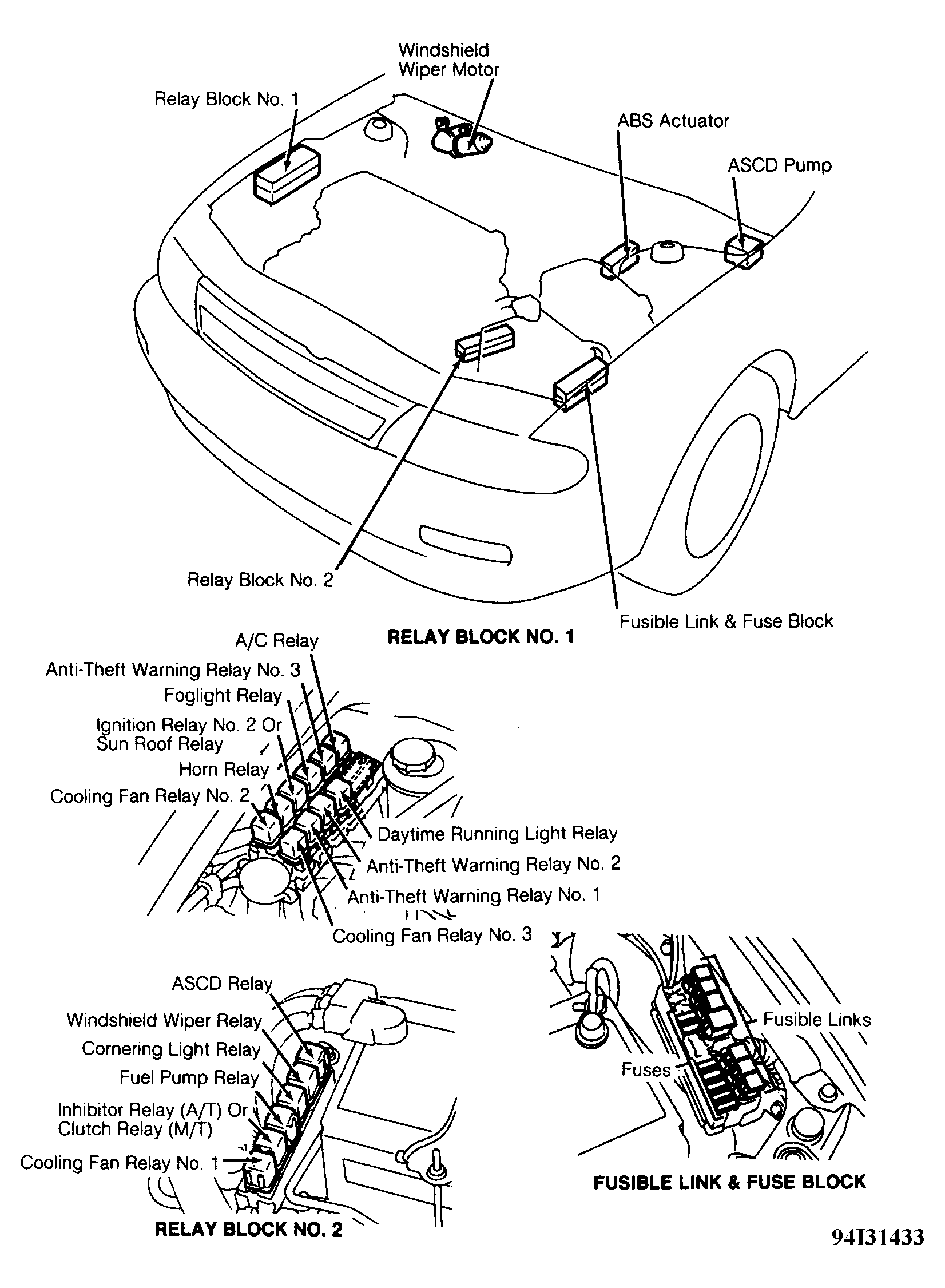

Relay Block No. 1 On right side of engine compartment. See Figure & Figure .
Relay Block No. 2 On left front engine compartment, near battery. See Figure & Figure .
