Home >> Nissan-Datsun >> 1994 >> Altima GLE, RE4F04A >> Repair and Diagnosis >> Engine Performance >> Remove, Overhaul & Install >> Engine Controls - Remove/Install/Overhaul >> Fuel System >> Fuel Pump >> Notes

Fuel Pump: Notes

NOTE: Fuel pump is located in fuel tank. See Fig 1 . If vehicle is not equipped with a maintenance access cover for fuel pump service, remove fuel tank.

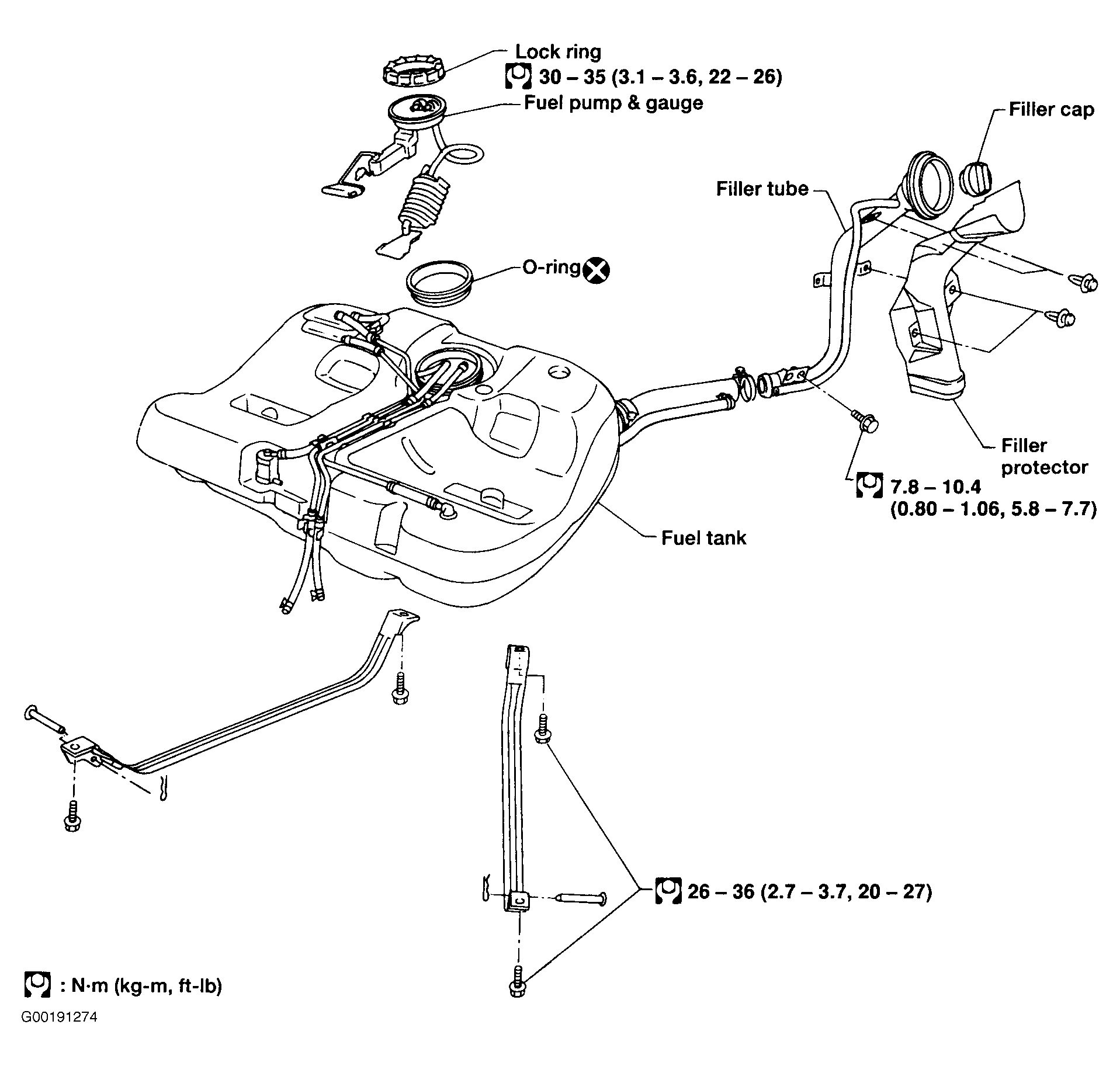

Fig 1: Locating Fuel Pump & Related Components
G00191274Courtesy of NISSAN MOTOR CO., U.S.A.
