Mode Intake Door

  1. Before installing intake door motor, ensure wiring harness connector of intake door motor is connected. Turn ignition on. Depress recirculation button or move mode lever to recirculation setting.
  2. Install intake door motor and lever (if removed). See Fig 1 . Set intake door rod in recirculation position and fasten door rod to holder on intake door lever. Ensure intake door operates properly when recirculation button is pressed on and off or mode lever is moved to and from recirculation setting.

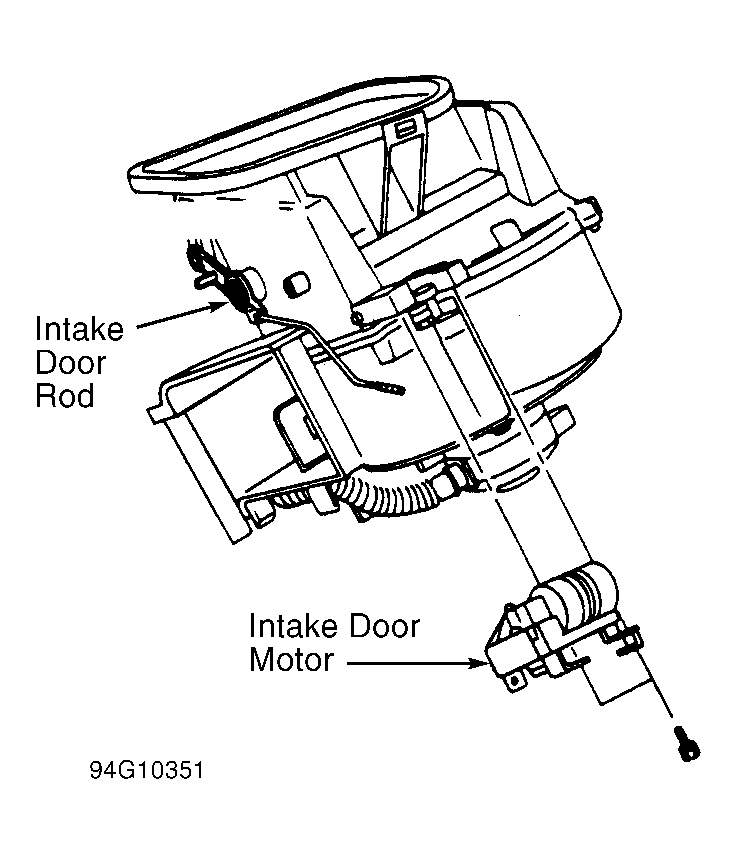

Fig 1: Adjusting Mode Intake Door (NX & Sentra)
G94G10351Courtesy of NISSAN MOTOR CO., U.S.A.
