Mode Door

  1. Rotate side link clockwise and hold mode door in vent position. See Fig 1 . Install mode door motor on heater assembly, and connect wiring harness connector. Turn ignition on. Depress vent button or move mode lever to vent setting.
  2. Install rod of mode door motor to side link rod holder. Depress defrost button (or move mode lever to defrost setting), and ensure side link operates at fully open position. Depress vent button (or move mode lever to vent setting), and ensure side link operates at fully open position.

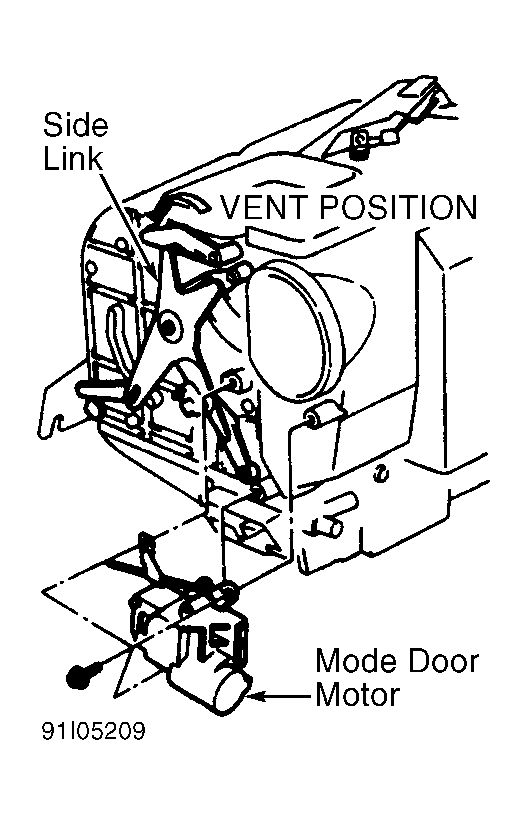

Fig 1: Adjusting Mode Door
G91I05209Courtesy of NISSAN MOTOR CO., U.S.A.
