Mode (Air) Control Cable

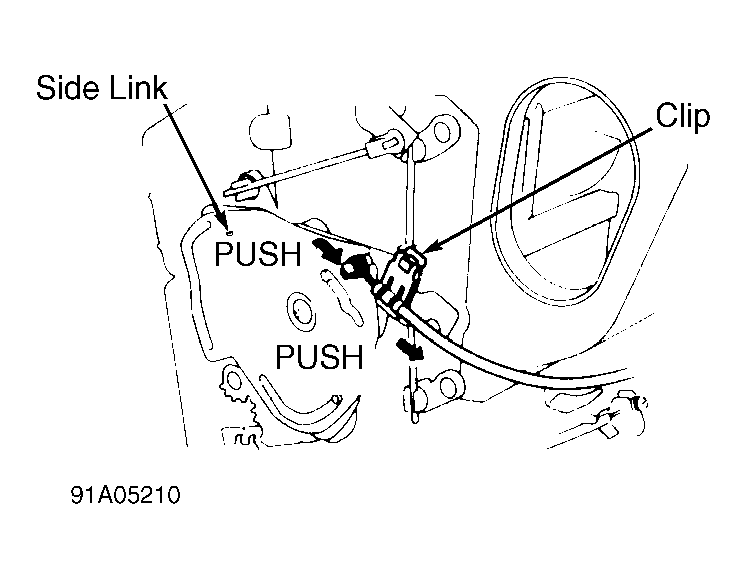

Place mode selector lever to defrost position. Disconnect control cable and push side link toward cable until it stops. See Fig 1 . Airflow door is now in full defrost position. Connect cable. Pull cable in opposite direction to remove slack, and secure cable using retaining clip.
