300ZX (Non-Turbo)

Start engine and warm to normal operating temperature. Ensure ignition timing is correct. Check idle speed. See V6 IDLE SPEED & CO% LEVEL table. If idle speed is incorrect, turn ignition off. Disconnect TP sensor connector. Start engine. Adjust idle speed by turning idle speed adjusting screw. See Fig 4 .

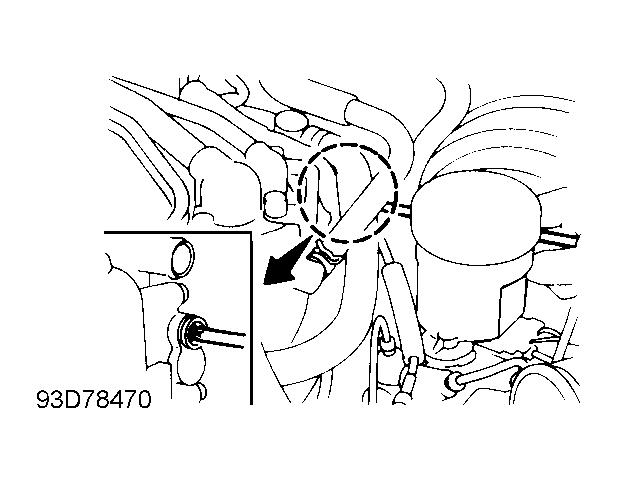

Fig 1: Locating Idle Speed Adjusting Screw (Maxima VE30DE)

Courtesy of NISSAN MOTOR CO., U.S.A.

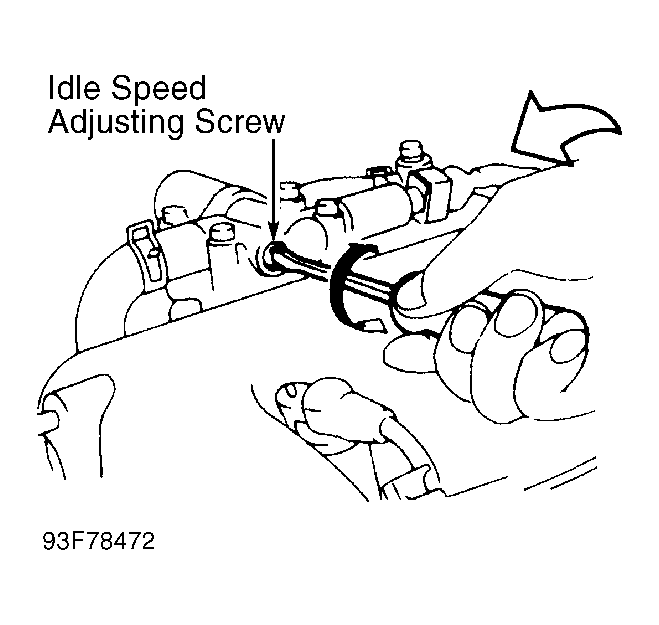

Fig 2: Locating Idle Speed Adjusting Screw (Pathfinder & Pickup V6)

Courtesy of NISSAN MOTOR CO., U.S.A.

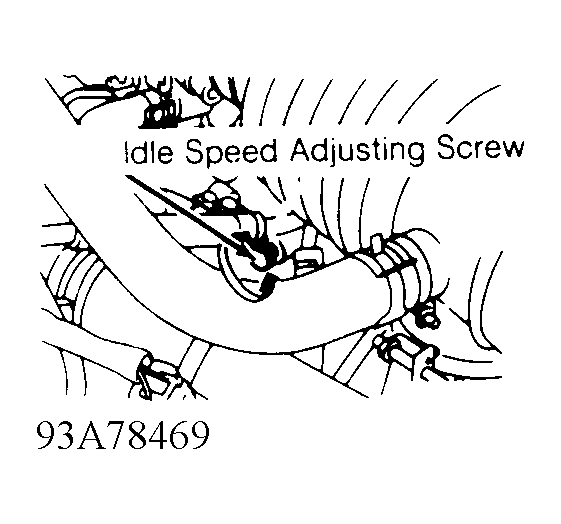

Fig 3: Locating Idle Speed Adjusting Screw (Quest)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Locating Idle Speed Adjusting Screw (300ZX)

Courtesy of NISSAN MOTOR CO., U.S.A.
