Wiper Amplifier
CAUTION:
In the following procedure, carefully connect test leads to wiper amplifier connector to prevent damaging amplifier.

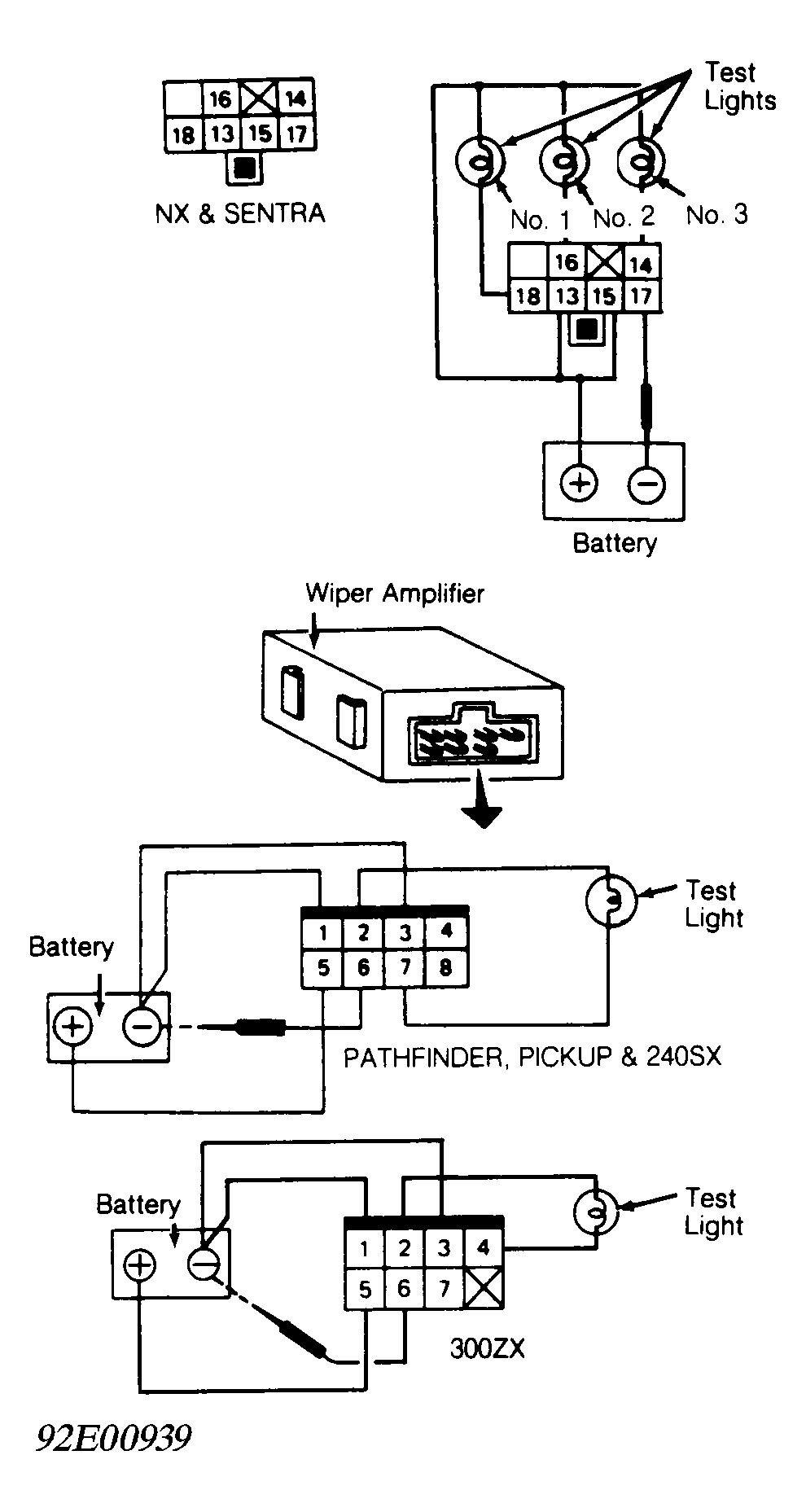

Disconnect amplifier connector. Connect test leads with test light(s) between 12-volt battery and amplifier connector terminals. See Fig 1 .
