Starter - MITSUBISHI: Overhaul: Commutator

Inspect commutator for roughness, grooves, burns, pitting and out-of-round. If necessary, sand lightly with 500-600 grit sandpaper. If mica insulator undercut is less than .008" (.20), undercut to .020-.031" (.50-.80 mm). Replace armature if commutator diameter is less than specified. See COMMUTATOR MINIMUM DIAMETER  table.

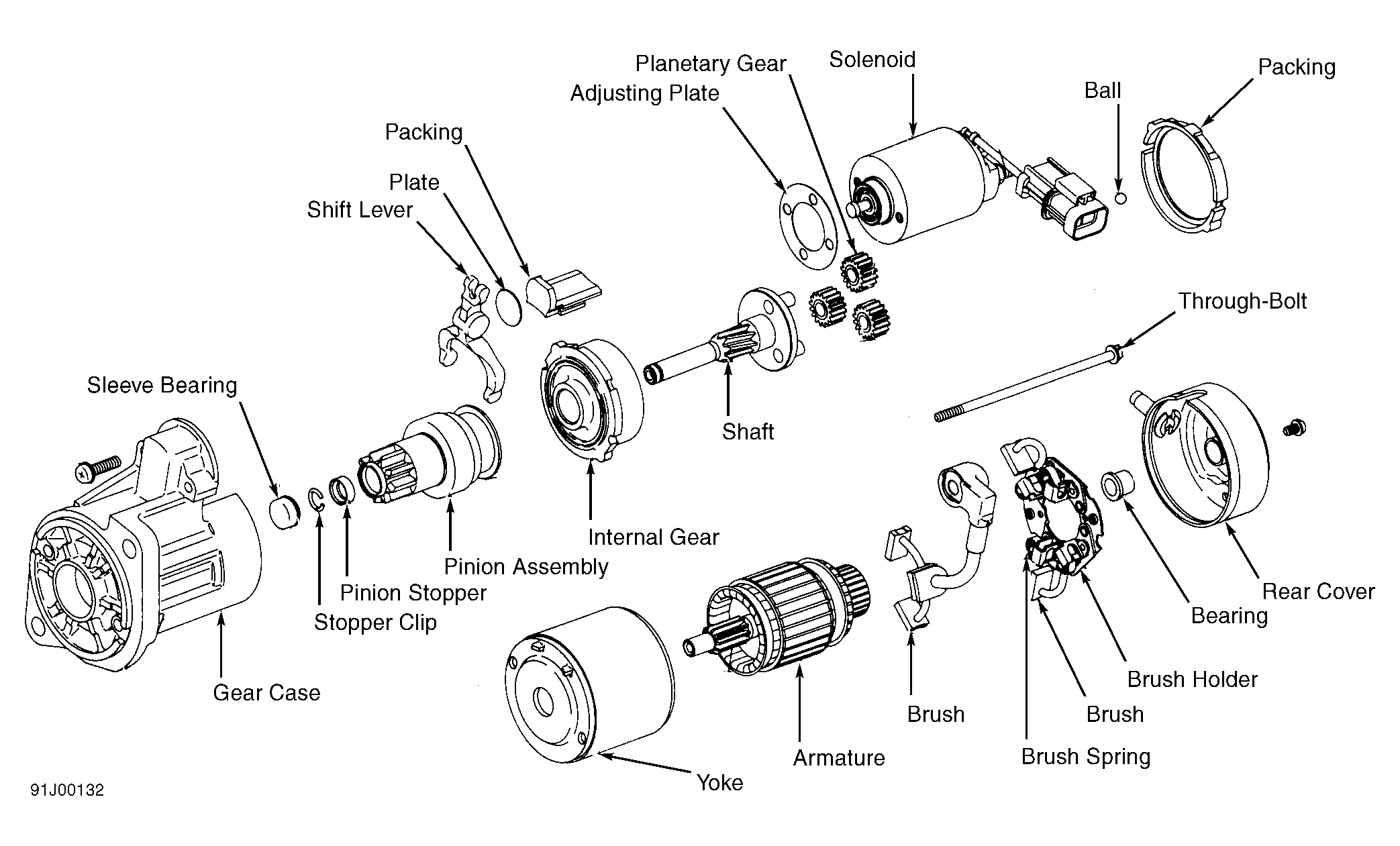

Fig 1: View Of Starter M1T73881ZC (Altima)

Courtesy of NISSAN MOTOR CO., U.S.A.

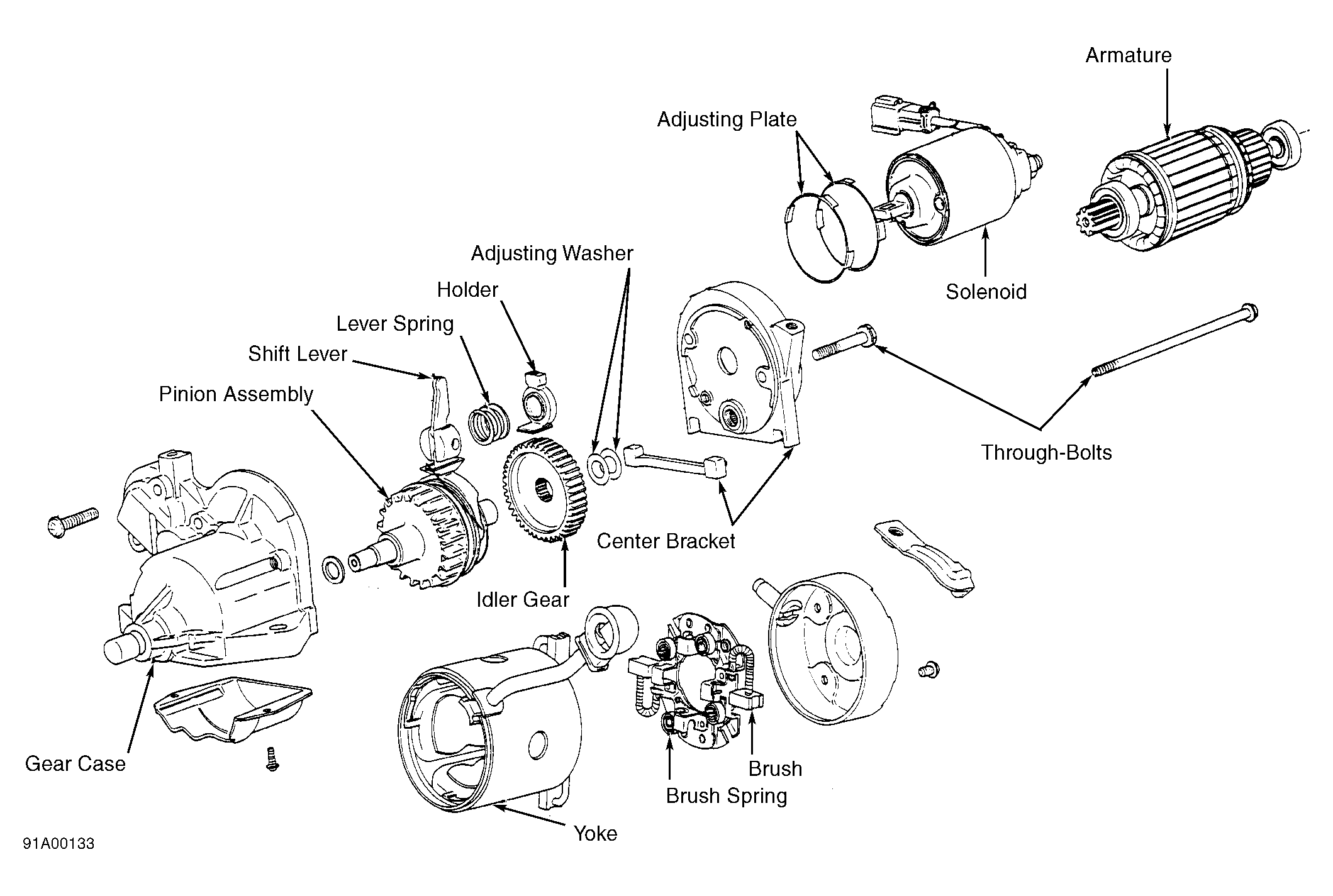

Fig 2: View Of Starters M1T72985A & M1T77281 (NX & Sentra) & M1T72781A (240SX)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: View Of Starters M3T37783 (NX & Sentra) & M3T38482 (Pathfinder & Pickup)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: View Of Starter M1T60281 (Pathfinder & Pickup)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: View Of Starter M2T25281 (300ZX)

Courtesy of NISSAN MOTOR CO., U.S.A.
